Airports for X-Plane

Qaisumah

Airport details

CountrySaudi Arabia
StateEastern Province
RegionOE
AirspaceJeddah Ctr
MunicipalityAl Qaysumah
Elevation1171ft (357m)
TimezoneGMT +3
Coordinates28.33523, 46.12493
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOEPA
IATA codeAQI
FAA coden/a

Communication

Qaisumah CTAF122.800

Approach frequencies

ILS-cat-IRW34108.518.00mi
3° GSRW34108.518.00mi

Runway info

Runway 16 / 34
 length3059m (10036ft)
 bearing156° / 336°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

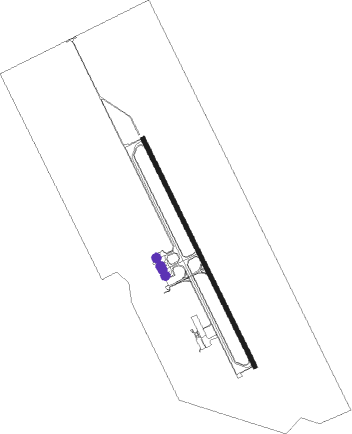

Airport layout - parking location Gate


Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
HFRHAFR AL BATIN (AL QAISUMA VORTAC1.3341°113.10
KMCKING SAUD AB (HAFR AL BAT VORTAC40.6231°115.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16EGTIV (112°)EGTIV 8000ft
PA540 (16mi, 98°)
EGMAG (7mi, 70°) 3000ft
RW16ITNEM (296°)ITNEM 12000ft
PA510 (25mi, 318°) 6000ft
PA530 (11mi, 318°)
EGMAG (7mi, 251°) 3000ft
RW16MITID (82°)MITID 7000ft
PA540 (16mi, 37°)
EGMAG (7mi, 70°) 3000ft
RW16NONLU (349°)NONLU 11000ft
PA520 (28mi, 330°) 5000ft
PA540 (6mi, 335°)
EGMAG (7mi, 70°) 3000ft
RW16ODGEX (54°)ODGEX 10000ft
PA520 (16mi, 17°) 5000ft
PA540 (6mi, 335°)
EGMAG (7mi, 70°) 3000ft
RW16OTUBA (286°)OTUBA 10000ft
PA510 (23mi, 306°) 6000ft
PA530 (11mi, 318°)
EGMAG (7mi, 251°) 3000ft
RW16UKTUL (241°)UKTUL 7000ft
PA530 (14mi, 294°)
EGMAG (7mi, 251°) 3000ft
 RNAVEGMAG 3000ft
PA550 (7mi, 156°) 3000ft
OEPA (6mi, 157°) 1223ft
PA560 (4mi, 154°)
PA570 (7mi, 71°)
PA530 (18mi, 336°)
EGMAG (7mi, 251°) 3000ft
EGMAG (turn) 3000ft
RW34EGTIV (112°)EGTIV 11000ft
PA420 (27mi, 138°) 6000ft
PA440 (10mi, 119°)
SILKU (7mi, 70°) 3000ft
RW34ITNEM (296°)ITNEM 7000ft
PA430 (14mi, 290°)
SILKU (7mi, 251°) 3000ft
RW34MITID (82°)MITID 9000ft
PA420 (11mi, 115°) 6000ft
PA440 (10mi, 119°)
SILKU (7mi, 70°) 3000ft
RW34NONLU (349°)NONLU 5000ft
SILKU (10mi, 5°) 3000ft
RW34ODGEX (54°)ODGEX 6000ft
PA440 (11mi, 101°)
SILKU (7mi, 70°) 3000ft
RW34OTUBA (286°)OTUBA 7000ft
PA430 (16mi, 272°)
SILKU (7mi, 251°) 3000ft
RW34UKTUL (241°)UKTUL 7000ft
PA430 (17mi, 191°)
SILKU (7mi, 251°) 3000ft
 RNAVSILKU 3000ft
PA450 (5mi, 336°) 3000ft
OEPA (6mi, 334°) 1226ft
PA460 (6mi, 337°)
PA470 (7mi, 70°)
PA430 (18mi, 156°)
SILKU (7mi, 251°) 3000ft
SILKU (turn) 3000ft
