Rafha - Rafha Domestic

Airport details

Country	Saudi Arabia
State	Northern Borders Province
Region	OE
Airspace	Jeddah Ctr
Municipality	Rafha
Elevation	1474ft (449m)
Timezone	GMT +3
Coordinates	29.62633, 43.49069
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	OERF
IATA code	RAH
FAA code	n/a

Communication

No airport communication available for OERF

Approach frequencies

ILS-cat-I	RW29	111.5	18.00mi
3° GS	RW29	111.5	18.00mi

Runway info

Runway 11 / 29
	length	2997m (9833ft)
	bearing	111° / 291°
	width	45m (148ft)
	surface	asphalt
	blast zone	64m (210ft) / 62m (203ft)

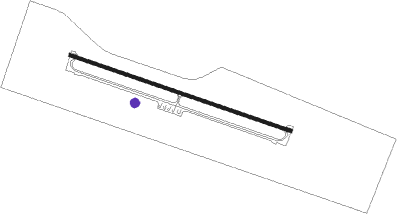

Airport layout - parking location H2

Parking locations

01	02	03	04	05	H1	H2	H3
H4

Nearby beacons

code	identifier	dist	bearing	frequency
RAF	RAFHA VOR/DME	0.5	130°	116.80
