Airports for X-Plane

Riyadh - King Salman Ab

Airport details

CountrySaudi Arabia
StateRiyadh Region
RegionOE
AirspaceJeddah Ctr
MunicipalityMunicipality of Olaya
Elevation2083ft (635m)
TimezoneGMT +3
Coordinates24.72185, 46.72470
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOERY
IATA codeXXN
FAA coden/a

Communication

King Salman AB Ground Control121.900
King Salman AB Tower118.100
King Salman AB Approach120.000
King Salman AB Approach124.100

Approach frequencies

ILS-cat-IRW01110.318.00mi
3° GSRW01110.318.00mi

Runway info

Runway 01 / 19
 length4122m (13524ft)
 bearing9° / 189°
 width45m (148ft)
 surfaceasphalt
 displ threshold442m (1450ft) / 0m (0ft)
 blast zone60m (197ft) / 60m (197ft)

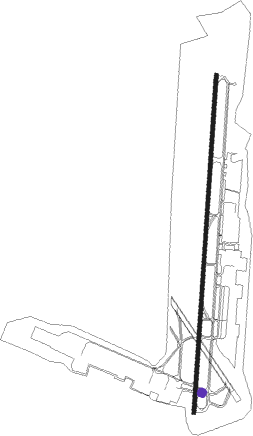

Airport layout - taxiway location A


Taxiway locations

 01  19  A  B  B1  B2  B3  B4
 B5  B6  B7  B8  C6  C7
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
RIYKING SALMAN AB (RIYADH) VORTAC0.1194°114.50
KIARIYADH VORTAC1012°113.30
RAZKHASHM ALAN VOR/DME13120°114.20
PS3PUMP STATION 3 NDB49.760°315
AKJAL KHARJ VORTAC54.1134°117.30
PSAPRINCE SULTAN VORTAC60.9127°115.40

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW01
 ESRA1P70mi16°
 ALTA1P70mi31°
 TAKT1P67mi57°
 KOBO1P65mi70°
 RESA1P41mi150°
 MUNT1P50mi190°
 DURM1P55mi254°
 IVON1P61mi288°
 METN1P67mi321°
 MURL1P70mi353°
RW19
 ESRA1S, ESRA1N70mi16°
 ALTA1S, ALTA1N70mi31°
 TAKT1S, TAKT1N67mi57°
 KOBO1N, KOBO1S65mi70°
 RESA1N41mi150°
 MUNT1N50mi190°
 DURM1N55mi254°
 IVON1N61mi288°
 METN1N, METN1S67mi321°
 MURL1N, MURL1S70mi353°

STAR starting pointsdistanceinbound heading
RW01
 MUNT1A50.210°
 TEVO1A51.446°
 KAVU1A57.190°
 RESU1A18.9108°
 VELO1A63.7124°
 METN1A66.5141°
 MURL1A69.7173°
 ESRA1A70.2196°
 ETBA1A68.5224°
 TAKT1A66.8237°
 SISO1A25.8238°
 KOBO1A64.7250°
 RESA1A41.2330°
RW19
 MUNT1A50.210°
 TEVO1A51.446°
 KAVU1A57.190°
 RESU1B18.9108°
 VELO1A63.7124°
 METN1A66.5141°
 MURL1A69.7173°
 ESRA1A70.2196°
 ETBA1A68.5224°
 TAKT1A66.8237°
 SISO1B25.8238°
 KOBO1A64.7250°
 RESA1A41.2330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01BOS1E (62°)BOSEB 11000ft
ALMUM (6mi, 62°) 11000ft
RADOX (13mi, 148°) 7500ft
UKTIN (8mi, 91°) 7000ft
PASIK (6mi, 159°) 5500ft
ASPIL (7mi, 218°) 5500ft
RY111 (7mi, 276°) 4500ft
RW01ITK1E (62°)ITKUS 12000ft
OBSAR (6mi, 242°) 12000ft
LOXAR (13mi, 148°) 7500ft
UKTIN (8mi, 209°) 7000ft
PASIK (6mi, 159°) 5500ft
ASPIL (7mi, 218°) 5500ft
RY111 (7mi, 276°) 4500ft
 RNAVRY111 4500ft
MELGA (6mi, 8°) 3700ft
DRW01 (5mi, 9°) 2058ft
RY010 (5mi, 9°) 3400ft
RY012 (5mi, 278°) 4100ft
RY011 (8mi, 252°) 5100ft
KUSTA (24mi, 158°) 5500ft
KUSTA (turn) 5500ft
RW19BOS1J (62°)BOSEB 11000ft
ALMUM (6mi, 62°) 11000ft
IMRAK (6mi, 9°) 9000ft
RY155 (8mi, 93°) 6500ft
RW19ITK1J (62°)ITKUS 12000ft
ELESI (7mi, 277°) 9000ft
RY155 (5mi, 189°) 6500ft
 RNAVRY155 6500ft
RY156 (8mi, 189°) 4300ft
OERY (8mi, 190°) 2133ft
RY333 (10mi, 188°) 4100ft
KUSTA (10mi, 191°) 5500ft
KUSTA (turn) 5500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ESRA1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
ETBA1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
KAVU1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
KOBO1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
METN1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
MUNT1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
MURL1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
RESA1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
RESU1ARIYNDBright360 (180)°> 9000ft1.0min timed210
RESU1BRIYNDBright360 (180)°> 9000ft1.0min timed210
SISO1ARIYNDBright360 (180)°> 9000ft1.0min timed210
SISO1BRIYNDBright360 (180)°> 9000ft1.0min timed210
TAKT1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
TEVO1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
VELO1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
*) magnetic outbound (inbound) holding course
