Airports for X-Plane

Abadan

Airport details

CountryIran
StateKhuzestan Province
RegionOI
AirspaceTehran Ctr
MunicipalityAbadan
Elevation19ft (6m)
TimezoneGMT +3.5
Coordinates30.37111, 48.22833
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeOIAA
IATA codeABD
FAA coden/a

Communication

Abadan ATIS126.850
Abadan Tower121.800
Abadan Tower118.100
Abadan Departure121.800

Approach frequencies

ILS-cat-IRW32L109.918.00mi
3° GSRW32L109.918.00mi
Nearby Points of Interest:
Abadan-2 Water Tower
-
Abadan-1 Water Tower

Runway info

Runway 14R / 32L
 length3107m (10194ft)
 bearing141° / 321°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)
Runway 14L / 32R
 length2266m (7434ft)
 bearing141° / 321°
 width35m (115ft)
 surfaceasphalt

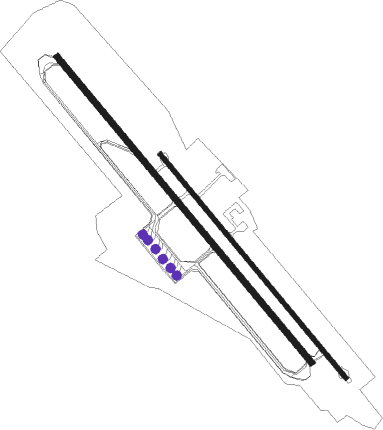

Airport layout - parking location Stand


Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
ABDABADAN NDB0.4266°210
BSRBASRAH VOR/DME29.5286°112.30
MAHBANDAR MAHSHAHR VOR/DME48.979°115.80
AWZAHWAZ NDB64.228°415

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW14R
 GABS2L, GABS2H34mi29°
 BOPI1L, BOPI2H26mi78°
 DEMP2L, DEMP2H26mi99°
 IBSA1L, IBSA2H31mi117°
RW32L
 GABS2K, GABS2G34mi29°
 BOPI1K, BOPI2G26mi78°
 DEMP2K, DEMP2G26mi99°
 IBSA1K, IBSA2G31mi117°

STAR starting pointsdistanceinbound heading
RW14R
 GABS2T, GABS2P, GABS2N34.3209°
 BOPI2T, BOPI1N, BOPI1Q, BOPI2P25.8258°
 DEMP1Q, DEMP2T, DEMP2P, DEMP1N26.2279°
 IBSA1N, IBSA1Q30.6297°
RW32L
 GABS2T, GABS2P, GABS2N34.3209°
 BOPI2T, BOPI1N, BOPI1Q, BOPI2P25.8258°
 DEMP1N, DEMP2T, DEMP2P, DEMP1Q26.2279°
 IBSA1N, IBSA1Q30.6297°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOPI1QD138OVHFright138 (318)°3000ft - 10000ft1.0min timed220
BOPI2PD022OVHFleft22 (202)°3000ft - 20000ft1.0min timed220
BOPI2TD022OVHFleft22 (202)°3000ft - 20000ft1.0min timed220
DEMP1QD138OVHFright138 (318)°3000ft - 10000ft1.0min timed220
DEMP2PD022OVHFleft22 (202)°3000ft - 20000ft1.0min timed220
DEMP2TD022OVHFleft22 (202)°3000ft - 20000ft1.0min timed220
GABS2PD022OVHFleft22 (202)°3000ft - 20000ft1.0min timed220
GABS2TD022OVHFleft22 (202)°3000ft - 20000ft1.0min timed220
IBSA1QD138OVHFright138 (318)°3000ft - 10000ft1.0min timed220
*) magnetic outbound (inbound) holding course
