Mahshahr
Airport details
| Country | Iran |
| State | Khuzestan Province |
| Region | OI |
| Airspace | Tehran Ctr |
| Municipality | دهستان جراحی |
| Elevation | 6ft (2m) |
| Timezone | GMT +3.5 |
| Coordinates | 30.55889, 49.15055 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | OIAM |
| IATA code | MRX |
| FAA code | n/a |
Communication
| Mahshahr INFO | 118.650 |

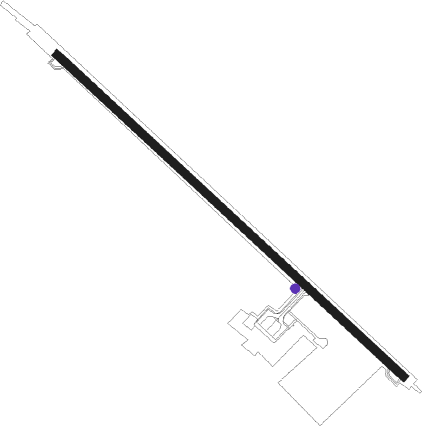

Runway info
| Runway 13 / 31 | ||
| length | 2697m (8848ft) | |
| bearing | 133° / 313° | |
| width | 45m (148ft) | |
| surface | concrete | |
| displ threshold | 0m (0ft) / 300m (984ft) | |
| blast zone | 200m (656ft) / 61m (200ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| MAH | BANDAR MAHSHAHR VOR/DME | 0.1 | 203° | 115.80 |
| OMD | OMIDIYEH TACAN | 25.4 | 50° | 113.60 |
| AJR | AGHAJARI VOR/DME | 29.5 | 71° | 114.90 |
| AJ | AGHAJARI NDB | 29.6 | 71° | 365 |
| ABD | ABADAN VOR/DME | 49.3 | 259° | 115.10 |
| ABD | ABADAN NDB | 49.4 | 259° | 210 |
| AWZ | AHWAZ VOR/DME | 50.8 | 334° | 114 |
| AWZ | AHWAZ NDB | 51.5 | 333° | 415 |
Departure and arrival routes
| Transition altitude | 3000ft |
| Transition level | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW13 | |||
| VATA1B | 34mi | 134° | |
| BOPI1B | 23mi | 259° | |
| GODM1F | 23mi | 333° | |
| RW31 | |||
| VATA1A | 34mi | 134° | |
| BOPI1A | 23mi | 259° | |
| GODM1E | 23mi | 333° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| BOPI1B | 23.1 | 79° | |
| GODM1E | 22.7 | 153° | |
| VATA1B | 34.3 | 314° | |
| RW13 | |||
| BOPI1C | 23.1 | 79° | |
| GODM1F | 22.7 | 153° | |
| VATA1C | 34.3 | 314° | |
| RW31 | |||
| BOPI1A | 23.1 | 79° | |
| GODM1G | 22.7 | 153° | |
| VATA1A | 34.3 | 314° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BOPI1A | D132M | VHF | left | 132 (312)° | > 2000ft | 1.0min timed | ICAO rules |
| BOPI1C | D316M | VHF | right | 316 (136)° | > 2000ft | 1.0min timed | ICAO rules |
| GODM1F | D316M | VHF | right | 316 (136)° | > 2000ft | 1.0min timed | ICAO rules |
| GODM1G | D132M | VHF | left | 132 (312)° | > 2000ft | 1.0min timed | ICAO rules |
| VATA1A | D132M | VHF | left | 132 (312)° | > 2000ft | 1.0min timed | ICAO rules |
| VATA1C | D316M | VHF | right | 316 (136)° | > 2000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
