Airports for X-Plane

Kish Island

Airport details

CountryIran
StateHormozgan Province
RegionOI
AirspaceTehran Ctr
Municipalityدهستان کیش
Elevation101ft (31m)
TimezoneGMT +3.5
Coordinates26.52750, 53.97917
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOIBK
IATA codeKIH
FAA coden/a

Communication

Kish Island ATIS128.000
Kish Island Tower121.675
Nearby Points of Interest:
The Historic Bath of Siba

Runway info

Runway 09R / 27L
 length3652m (11982ft)
 bearing94° / 274°
 width50m (164ft)
 surfaceasphalt
 blast zone255m (837ft) / 64m (210ft)
Runway 09L / 27R
 length3639m (11939ft)
 bearing94° / 274°
 width56m (182ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

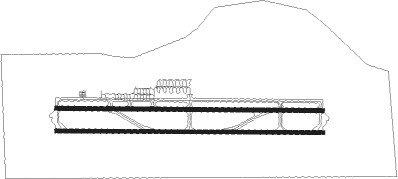

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  H
Parking locations

 A1  A10  A2  A3  A4  A5  A6  A7
 A8  A9  B1  B10  B11  B12  B13  B14
 B15  B16  B17  B2  B3  B4  B5  B6
 B7  B8  B9  C1  C10  C11  C2  C3
 C4  C5  C6  C7  C8  C9  H1  H2
 H3  H4

Nearby beacons

codeidentifierdistbearingfrequency
KISKISH ISLAND VOR/DME0.9262°117.40
KIHKISH ISLAND NDB1.4270°201
KIHKISH ISLAND TACAN1.698°116.50
LVALAVAN ISLAND NDB35.7295°310
LVALAVAN ISLAND VOR/DME37.5295°116.85
LENBANDAR LENGEH NDB45.890°408
LENBANDAR LENGEH VOR/DME46.889°114.80
SIRSIRRI ISLAND VOR/DME47.4138°113.75
SIRSIRRI ISLAND NDB48.1138°300
LAMLAMERD NDB65.6317°346
LAMLAMERD VOR/DME66.2317°117

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW09L
 MIVU1B, MIVU1D19mi89°
 IBNU1B, IBNU1D20mi139°
 ORSA1D, ORSA1B27mi183°
 ALNO1D, ALNO1B21mi294°
RW27R
 MIVU1C, MIVU1A19mi89°
 IBNU1C, IBNU1A20mi139°
 ORSA1A, ORSA1C27mi183°
 ALNO1C, ALNO1A21mi294°

STAR starting pointsdistanceinbound heading
ALL
 ORSA1Q, ORSA1N, ORSA1P, ORSA1V27.13°
 ALNO1N, ALNO1V, ALNO1Q, ALNO1P20.7114°
 MIVU1V, MIVU1Q, MIVU1P, MIVU1N18.9269°
 IBNU1N, IBNU1P, IBNU1Q, IBNU1V19.5319°
RW09L
 ORSA1S27.13°
 ALNO1S20.7114°
 MIVU1S18.9269°
 IBNU1S19.5319°
RW27R
 ORSA1R27.13°
 ALNO1R20.7114°
 MIVU1R18.9269°
 IBNU1R19.5319°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALNO1PD091NVHFleft91 (271)°3000ft - 60000ft1.0min timedICAO rules
ALNO1QD277MVHFleft277 (97)°3000ft - 60000ft1.0min timedICAO rules
ALNO1RD088PVHFleft88 (268)°> 3000ft1.0min timedICAO rules
ALNO1SD288OVHFright288 (108)°> 3000ft1.0min timedICAO rules
IBNU1PD091NVHFleft91 (271)°3000ft - 60000ft1.0min timedICAO rules
IBNU1QD277MVHFleft277 (97)°3000ft - 60000ft1.0min timedICAO rules
IBNU1RD088PVHFleft88 (268)°> 3000ft1.0min timedICAO rules
IBNU1SD288OVHFright288 (108)°> 3000ft1.0min timedICAO rules
MIVU1PD091NVHFleft91 (271)°3000ft - 60000ft1.0min timedICAO rules
MIVU1QD277MVHFleft277 (97)°3000ft - 60000ft1.0min timedICAO rules
MIVU1RD088PVHFleft88 (268)°> 3000ft1.0min timedICAO rules
MIVU1SD288OVHFright288 (108)°> 3000ft1.0min timedICAO rules
ORSA1PD091NVHFleft91 (271)°3000ft - 60000ft1.0min timedICAO rules
ORSA1QD277MVHFleft277 (97)°3000ft - 60000ft1.0min timedICAO rules
ORSA1RD088PVHFleft88 (268)°> 3000ft1.0min timedICAO rules
ORSA1SD288OVHFright288 (108)°> 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
