Airports for X-Plane

Hamadan

Airport details

CountryIran
StateHamadan Province
RegionOI
AirspaceTehran Ctr
Municipalityدهستان هگمتانه
Elevation5753ft (1754m)
TimezoneGMT +3.5
Coordinates34.86945, 48.55056
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOIHH
IATA codeHDM
FAA coden/a

Communication

Hamadan INFO123.500

Runway info

Runway 10 / 28
 length3793m (12444ft)
 bearing102° / 282°
 width45m (148ft)
 surfaceasphalt
 displ threshold301m (988ft) / 0m (0ft)
 blast zone51m (167ft) / 101m (331ft)

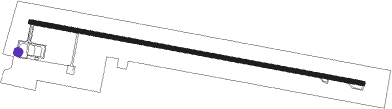

Airport layout - parking location 101


Parking locations

 101  102  103  104

Nearby beacons

codeidentifierdistbearingfrequency
HAMHAMADAN VOR/DME0.1186°117.90
HAMHAMADAN NDB0.3220°317
HABNOGEH (HAMADAN) NDB20.619°329
HABHAMADAN VORTAC2118°115.40

Departure and arrival routes

Transition altitude13000ft
SID end pointsdistanceoutbound heading
RW10
 ORLO1B, ORLO1C30mi85°
 IVEL1B17mi190°
RW28
 ORLO1A30mi85°
 IVEL1A17mi190°

STAR starting pointsdistanceinbound heading
RW10
 IVEL1P17.310°
 ORLO1R, ORLO2P29.8265°
RW28
 IVEL1N17.310°
 ORLO2N, ORLO1Q29.8265°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
IVEL1ND079RVHFright79 (259)°> 11000ft1.0min timedICAO rules
IVEL1PD326KVHFleft326 (146)°> 11000ft1.0min timedICAO rules
ORLO1QD079RVHFright79 (259)°> 11000ft1.0min timedICAO rules
ORLO1RD332KVHFleft332 (152)°> 11000ft1.0min timedICAO rules
ORLO2ND079RVHFright79 (259)°> 11000ft1.0min timedICAO rules
ORLO2PD326KVHFleft326 (146)°> 11000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
