Airports for X-Plane

Bandar Abbas - Bandar Abbas Intl

Airport details

CountryIran
StateHormozgan Province
RegionOI
AirspaceTehran Ctr
MunicipalityBandar Abbas
Elevation20ft (6m)
TimezoneGMT +3.5
Coordinates27.21861, 56.37778
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOIKB
IATA codeBND
FAA coden/a

Communication

Bandar Abbas Intl ATIS128.650
Bandar Abbas Intl Tower118.100
Bandar Abbas Intl Tower121.900
Bandar Abbas Intl Approach124.200

Approach frequencies

ILS-cat-IRW21L109.918.00mi
2.9° GSRW21L109.918.00mi

Runway info

Runway 03R / 21L
 length3670m (12041ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 03L / 21R
 length3466m (11371ft)
 bearing30° / 210°
 width30m (98ft)
 surfaceasphalt
 blast zone255m (837ft) / 0m (0ft)

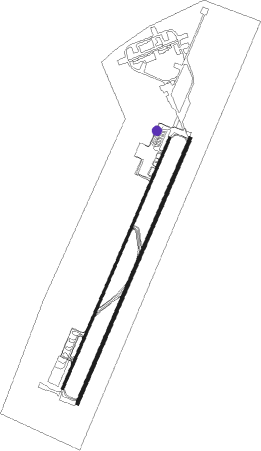

Airport layout - parking location 120


Parking locations

 101  101H  102  102H  103  104  105  106
 107  108  109  110  111  112  113  114
 115  116  117  118  119  120  121  122
 123  124  125  127  129  h1  h2  h3
 h4  h5  h6  h7  h8  m1  m10  m11
 m12  m13  m14  m15  m16  m17  m18  m19
 m2  m20  m21  m22  m23  m24  m25  m27
 m3  m4  m5  m6  m7  m8  m9

Nearby beacons

codeidentifierdistbearingfrequency
BNDBANDAR ABBAS NDB0.9263°250
BNDBANDAR ABBAS VOR/DME1.4207°117.20
KHMGHESHM ISLAND NDB37.1226°335

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW03R
 TAVN1H, TAVN1G, TAVN1D, TAVN1C59mi10°
 DAVE1C, DAVE1G59mi63°
 MELM1G, MELM1C60mi114°
 KHM1L37mi226°
 MOBO1D, MOBO1H60mi298°
 ASMU1H, ASMU1G, ASMU1D, ASMU1C59mi343°
RW21L
 TAVN1B, TAVN1F59mi10°
 DAVE1A, DAVE1E59mi63°
 MELM1A, MELM1E60mi114°
 KHM1K37mi226°
 MOBO1F, MOBO1E, MOBO1B, MOBO1A60mi298°
 ASMU1B, ASMU1A, ASMU1F59mi343°

STAR starting pointsdistanceinbound heading
ALL
 KHM1X37.146°
 MOBO1X59.7118°
 ASMU1X58.9163°
 TAVN1X58.8190°
 DAVE1X58.8243°
 MELM1X60.0294°
RW03R
 KHM1S37.146°
 MOBO1S59.7118°
 ASMU1S58.9163°
RW21L
 MOBO1P59.7118°
 ASMU1P58.9163°
 TAVN1P58.8190°
 DAVE1P58.8243°
 MELM1P60.0294°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASMU1PD055MVHFleft55 (235)°> 4000ft1.0min timed220
ASMU1SCD03RVHFright206 (26)°> 3000ft1.0min timedICAO rules
DAVE1PD055MVHFleft55 (235)°> 4000ft1.0min timed220
KHM1SCD03RVHFright206 (26)°> 3000ft1.0min timedICAO rules
MELM1PD055MVHFleft55 (235)°> 4000ft1.0min timed220
MOBO1PD055MVHFleft55 (235)°> 4000ft1.0min timed220
MOBO1SCD03RVHFright206 (26)°> 3000ft1.0min timedICAO rules
TAVN1PD055MVHFleft55 (235)°> 4000ft1.0min timed220
*) magnetic outbound (inbound) holding course
