Airports for X-Plane

Gorgan

Airport details

CountryIran
StateGolestan Province
RegionOI
AirspaceTehran Ctr
Municipalityدهستان روشن آباد
Elevation-22ft (-7m)
TimezoneGMT +3.5
Coordinates36.91139, 54.39806
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOING
IATA codeGBT
FAA coden/a

Communication

Gorgan Tower121.850
Gorgan Tower118.750

Approach frequencies

ILS-cat-IRW13109.918.00mi
3° GSRW13109.918.00mi

Runway info

Runway 13 / 31
 length3275m (10745ft)
 bearing127° / 307°
 width45m (148ft)
 surfaceasphalt
 displ threshold299m (981ft) / 0m (0ft)
 blast zone82m (269ft) / 61m (200ft)

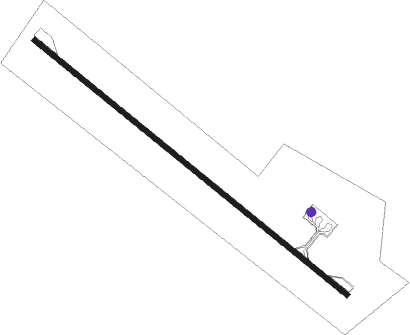

Airport layout - parking location 3


Parking locations

 1  2  3

Nearby beacons

codeidentifierdistbearingfrequency
GGNGORGAN NDB0.8115°310
GGNGORGAN VOR/DME1.5309°117.60
SHRSHAHROUD VOR/DME44.3125°115.10
SHRSHAHROUD NDB45.7123°268

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW13
 ALNI1B19mi76°
 BONU1B18mi125°
 RUDE1B20mi229°
 IMPI1B21mi259°
RW31
 DASB1E20mi63°
 ALNI1C, ALNI1E19mi76°
 BONU1E, BONU1C18mi125°
 RUDE1C20mi229°
 DATO1G, DATO1H30mi259°
 IMPI1D, IMPI1F21mi259°

STAR starting pointsdistanceinbound heading
RW13
 RUDE2S, RUDE2R, RUDE1N19.849°
 IMPI2R, IMPI1S, IMPI1N20.679°
 DATO1T30.379°
 DASB1T19.5243°
 ALNI2S, ALNI1T, ALNI1R19.1256°
 BONU2S, BONU1T18.4305°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALNI1RCD13VHFleft309 (129)°> 5000ft1.0min timed210
IMPI1ND249OVHFleft249 (69)°> 9000ft1.0min timedICAO rules
IMPI2RCD13VHFleft309 (129)°> 5000ft1.0min timed210
RUDE1ND249OVHFleft249 (69)°> 9000ft1.0min timedICAO rules
RUDE2RCD13VHFleft309 (129)°> 5000ft1.0min timed210
*) magnetic outbound (inbound) holding course
