Airports for X-Plane

Yazd - Yazd Shahid Sadooghi Intl

Airport details

CountryIran
StateYazd Province
RegionOI
AirspaceTehran Ctr
MunicipalityYazd
Elevation4054ft (1236m)
TimezoneGMT +3.5
Coordinates31.90611, 54.27639
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOIYY
IATA codeAZD
FAA coden/a

Communication

Yazd Shahid Sadooghi Intl ATIS126.250
Yazd Shahid Sadooghi Intl Tower122.700
Yazd Shahid Sadooghi Intl Tower121.900

Approach frequencies

ILS-cat-IRW31108.918.00mi
3° GSRW31108.918.00mi

Runway info

Runway 13 / 31
 length4099m (13448ft)
 bearing129° / 309°
 width44m (144ft)
 surfaceasphalt
 blast zone201m (659ft) / 201m (659ft)

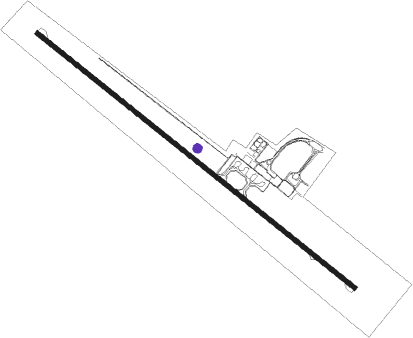

Airport layout - parking location P2


Parking locations

 A1  A2  A3  A4  P1  P2  P3  P4
 P5

Nearby beacons

codeidentifierdistbearingfrequency
YZDYAZD NDB0.5103°402
YZDYAZD VOR/DME0.6143°117.70

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW13
 BOMI1B30mi56°
 BOMU3B, BOMU2D31mi121°
 VEDO2B, VEDO1C31mi132°
 GADP2C, GADP1D31mi149°
 BONE5B, BONE3D30mi215°
 TOVT2B, TOVT1D30mi289°
 BONO3B, BONO1D30mi346°
RW31
 BOMI1A30mi56°
 BOMU2C, BOMU3A31mi121°
 VEDO2A31mi132°
 GADP2B31mi149°
 BONE3C, BONE5A30mi215°
 TOVT1C, TOVT2A30mi289°
 BONO1C, BONO3A30mi346°

STAR starting pointsdistanceinbound heading
ALL
 BONE1Q, BONE1P, BONE1N, BONE1D30.235°
 TOVT1Q, TOVT1D, TOVT1N, TOVT1P29.5109°
 BONO1Q, BONO1D, BONO1P, BONO1N29.5166°
 BOMI1P, BOMI1Q, BOMI1N29.9236°
 BOMU1N, BOMU1D, BOMU1P, BOMU1Q30.5301°
 VEDO1Q, VEDO1P, VEDO1D, VEDO1N30.6312°
 GADP1Q, GADP1P, GADP1N, GADP1D30.6329°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOMI1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
BOMI1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
BOMU1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
BOMU1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
BONE1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
BONE1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
BONO1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
BONO1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
GADP1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
GADP1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
TOVT1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
TOVT1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
VEDO1PD125OVHFright125 (305)°> 9500ft1.0min timedICAO rules
VEDO1QD312OVHFleft312 (132)°> 8000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
