Airports for X-Plane

Amman - Queen Alia Intl

Airport details

CountryJordan
StateAmman
RegionOJ
AirspaceAmman Ctr
MunicipalityJizah Sub-District
Elevation2395ft (730m)
TimezoneGMT +2
Coordinates31.72256, 35.99321
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOJAI
IATA codeAMM
FAA coden/a

Communication

Queen Alia Intl ATIS127.600
Queen Alia Intl Ground Control121.900
Queen Alia Intl Tower119.800
Queen Alia Intl AMMAN Approach128.900

Approach frequencies

ILS-cat-IIRW26L110.918.00mi
ILS-cat-IIRW08L109.318.00mi
ILS-cat-IIRW26R111.118.00mi
3° GSRW26L110.918.00mi
3° GSRW08L109.318.00mi
3° GSRW26R111.118.00mi

Runway info

Runway 08L / 26R
 length3642m (11949ft)
 bearing82° / 262°
 width61m (200ft)
 surfaceasphalt
 blast zone220m (722ft) / 150m (492ft)
Runway 08R / 26L
 length3655m (11991ft)
 bearing82° / 262°
 width61m (200ft)
 surfaceconcrete
 blast zone165m (541ft) / 152m (499ft)

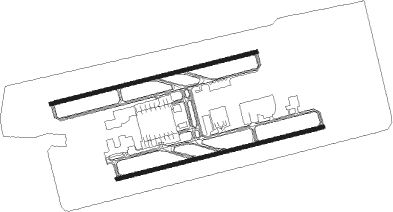

Airport layout


Taxiway locations

 A  C  D  H  K  L  M
Parking locations

 Cargo  Hotel  RS

Nearby beacons

codeidentifierdistbearingfrequency
QAQUEEN ALIA NDB5.285°410
MDBMADABA NDB7.3265°399
QAAQUEEN ALIA VOR/DME8.484°115.20
AMNAMMAN VOR/DME17.314°116.30
QTRQATRANEH VOR/DME28.6172°112.90
MZDMETZADA VOR/DME38.7237°115
RMDRAMAT DAVID NDB70319°368

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW08L
 LOSA6T, LOSA6E36mi48°
 LUDA6T, LUDA6E38mi62°
 GENE6T, GENE6E54mi103°
 KIPA6T, KIPA6E61mi107°
 MUNR6T, MUNR6E54mi170°
 LOSI6T, LOSI6E55mi192°
 MOUA6E, MOUA6T21mi281°
 OSAM6T, OSAM6E23mi299°
RW08R
 LOSA1S, LOSA3D36mi48°
 LUDA3D, LUDA1S38mi62°
 KINU3D33mi100°
 KULD3D, KULD1S37mi127°
 QTR3D, QTR01S29mi172°
 MOUA1S21mi281°
 MUVI3D24mi282°
 RALN3D26mi295°
 OSAM1S23mi299°
RW26L
 LOSA1Q, LOSA2D36mi48°
 LUDA2D, LUDA1Q38mi62°
 KULD2D, KULD1Q37mi127°
 QTR2D, QTR01Q29mi172°
 MOUA1Q21mi281°
 MUVI2D24mi282°
 RALN2D26mi295°
 OSAM1Q23mi299°
RW26R
 LOSA6W, LOSA6D36mi48°
 LUDA6W, LUDA6D38mi62°
 KIPA6D, KIPA6W61mi107°
 MUNR6W, MUNR6D54mi170°
 LOSI6D, LOSI6W55mi192°
 MOUA6W, MOUA6D21mi281°
 OSAM6D, OSAM6W23mi299°

STAR starting pointsdistanceinbound heading
RW08 (ALL)
 RALN3A26.2115°
 OSAM1G22.8119°
 LOSA3A, LOSA1G36.0228°
 LUDA1G, LUDA3A37.5242°
 ELOX1G40.2281°
 KULD3A, KULD1G37.1307°
 EGLO1G30.9325°
 QTR3A, QTR01G28.6352°
RW08L
 LOSI6L55.412°
 OSAM6L22.8119°
 LOSA6L36.0228°
 LUDA6L37.5242°
 KIPA6L60.6287°
 MUNR6L54.2350°
RW26 (ALL)
 RALN2A26.2115°
 OSAM1C22.8119°
 LOSA2A, LOSA1C36.0228°
 LUDA1C, LUDA2A37.5242°
 KINU2A32.7280°
 ELOX1C40.2281°
 KULD2A, KULD1C37.1307°
 EGLO1C30.9325°
 QTR2A, QTR01C28.6352°
RW26R
 LOSI6A55.412°
 OSAM6A22.8119°
 LOSA6A36.0228°
 LUDA6A37.5242°
 GENE6A54.0283°
 KIPA6A60.6287°
 MUNR6A54.2350°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08RLOTES (60°)LOTES 6000ft
GEVUP (5mi, 349°) 5000ft
RW08RRESOS (103°)RESOS 6000ft
GEVUP (6mi, 169°) 5000ft
 RNAVGEVUP 5000ft
OBTAN (6mi, 82°) 4000ft
OJAI (6mi, 78°) 2408ft
SIVIK (6mi, 85°)
ASPAL (7mi, 121°) 4800ft
ASPAL (turn) 6000ft
RW26LASPAL (284°)ASPAL 6000ft
GENIS (5mi, 349°) 5000ft
RW26LORDUN (236°)ORDUN 6000ft
GENIS (7mi, 169°) 5000ft
 RNAVGENIS 5000ft
SIVIK (5mi, 262°) 4000ft
AI264 (2mi, 262°) 3210ft
OJAI (4mi, 267°) 2416ft
OBTAN (6mi, 258°)
LOTES (8mi, 225°) 4800ft
LOTES (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELOX1CALNORVHFleft105 (285)°> 9800ftDME 4.0mi210
*) magnetic outbound (inbound) holding course
