Airports for X-Plane

Bateen

Airport details

CountryUnited Arab Emirates
StateAbu Dhabi Emirate
RegionOM
AirspaceEmirates Ctr
MunicipalityAbu Dhabi
Elevation16ft (5m)
TimezoneGMT +4
Coordinates24.42833, 54.45806
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOMAD
IATA codeAZI
FAA coden/a

Communication

BATEEN Ground Control121.900
BATEEN Tower119.900
BATEEN ABU DHABI Approach124.400
BATEEN ABU DHABI Approach128.100

Approach frequencies

ILS-cat-IRW31110.718.00mi
3.5° GSRW31110.718.00mi

Runway info

Runway 13 / 31
 length3203m (10509ft)
 bearing126° / 306°
 width46m (151ft)
 surfaceasphalt
 displ threshold553m (1814ft) / 426m (1398ft)
 blast zone183m (600ft) / 255m (837ft)

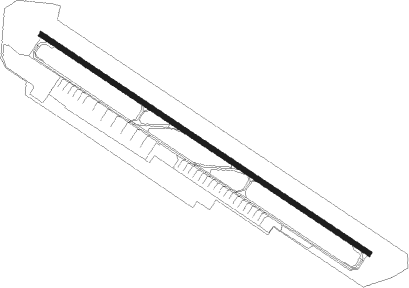

Airport layout


Taxiway locations

 T  T1
Parking locations

 Al

Nearby beacons

codeidentifierdistbearingfrequency
ALBAL BATEEN (ABU DHABI) VOR/DME0.8311°114
ADVABU DHABI VOR/DME11.792°114.25
MINMINHAD VOR/DME62.457°115.20

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW13
 LORI2R32mi21°
 TULO1R35mi34°
 KANI1R51mi106°
 ORNE1R53mi113°
 ATUD1R11mi141°
 MEKR1R30mi280°
 BOSE1R32mi317°
 DAXI2R34mi328°
RW31
 LORI1Q32mi21°
 TULO1Q35mi34°
 KANI1Q51mi106°
 ORNE1Q53mi113°
 ATUD1Q11mi141°
 MEKR1Q30mi280°
 BOSE1Q32mi317°
 DAXI1Q34mi328°

STAR starting pointsdistanceinbound heading
RW13
 UKIL1F30.7112°
 GIDO1F31.5125°
 ELOV2F32.3167°
 EMER1F, EMER2T39.5237°
 ROVO1T, ROVO2F49.9278°
 NOBT2F55.7301°
 ATUD1F10.7321°
RW31
 UKIL1S30.7112°
 GIDO1S31.5125°
 ELOV1S32.3167°
 EMER1S39.5237°
 ROVO1S49.9278°
 NOBT1S55.7301°
 ATUD1S10.7321°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13-ZALKAD (103°)ALKAD 3000ft
ELAVU (6mi, 41°) 3000ft
RW13-ZBORIM (125°)BORIM 3000ft
ELAVU (4mi, 123°) 3000ft
RW13-ZDEBKI (150°)DEBKI 3000ft
ELAVU (6mi, 220°) 3000ft
 RNAVELAVU 3000ft
DELRI (4mi, 126°) 3000ft
OMAD (9mi, 126°) 63ft
GITPI (17mi, 126°) 3000ft
RW31-ZALB (131°)ALB 4000ft
AD362 (11mi, 102°)
ITENI (6mi, 125°) 4000ft
KOBAV (5mi, 220°) 4000ft
ALMEL (5mi, 305°) 3000ft
RW31-ZITENI (288°)ITENI 4000ft
KOBAV (5mi, 220°) 4000ft
ALMEL (5mi, 305°) 3000ft
RW31-ZMIPIP (306°)MIPIP 3000ft
KOBAV (4mi, 306°) 3000ft
ALMEL (5mi, 305°) 3000ft
 RNAVALMEL 3000ft
OMAD (9mi, 306°) 63ft
BORIM (18mi, 305°) 3000ft
BORIM (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATUD1FBORIMVHFright305 (125)°3000ft - 6000ft1.0min timed210
ATUD1SPAREDVHFright120 (300)°> 6000ft1.0min timed230
ELOV1SPAREDVHFright120 (300)°> 6000ft1.0min timed230
ELOV2FBORIMVHFright305 (125)°3000ft - 6000ft1.0min timed210
EMER1FBORIMVHFright305 (125)°3000ft - 6000ft1.0min timed210
EMER1SPAREDVHFright120 (300)°> 6000ft1.0min timed230
GIDO1FBORIMVHFright305 (125)°3000ft - 6000ft1.0min timed210
NOBT1SPAREDVHFright120 (300)°> 6000ft1.0min timed230
ROVO1SPAREDVHFright120 (300)°> 6000ft1.0min timed230
ROVO2FBORIMVHFright305 (125)°3000ft - 6000ft1.0min timed210
UKIL1FBORIMVHFright305 (125)°3000ft - 6000ft1.0min timed210
*) magnetic outbound (inbound) holding course
