Airports for X-Plane

Dubai - Dubai Intl

Airport details

CountryUnited Arab Emirates
StateDubai
RegionOM
AirspaceEmirates Ctr
MunicipalityDubai International Airport
Elevation62ft (19m)
TimezoneGMT +4
Coordinates25.25278, 55.36444
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOMDB
IATA codeDXB
FAA coden/a

Communication

Dubai Intl Dubai ATIS Departure131.700
Dubai Intl Dubai ATIS Arrival126.275
Dubai Intl Dubai Delivery120.350
Dubai Intl Dubai Ground 2118.850
Dubai Intl Dubai Ground 1118.350
Dubai Intl Dubai Tower Air 2119.550
Dubai Intl Dubai Tower Air 1118.750
Dubai Intl Dubai Arrival 2120.250
Dubai Intl Dubai Arrival 1124.900
Dubai Intl Dubai Departure North126.200
Dubai Intl Dubai Departure South122.500

Approach frequencies

ILS-cat-IIIRW12R109.518.00mi
ILS-cat-IIIRW12L110.118.00mi
ILS-cat-IIIRW30R110.918.00mi
ILS-cat-IIIRW30L111.318.00mi
3° GSRW12R109.518.00mi
3° GSRW12L110.118.00mi
3° GSRW30R110.918.00mi
3° GSRW30L111.318.00mi
Nearby Points of Interest:
Dubai Creek
-
Sharjah
-
Ed-Dur

Runway info

Runway 12R / 30L
 length4447m (14590ft)
 bearing119° / 299°
 width60m (197ft)
 surfaceasphalt
 displ threshold718m (2356ft) / 134m (440ft)
 blast zone217m (712ft) / 255m (837ft)
Runway 12L / 30R
 length4343m (14249ft)
 bearing119° / 299°
 width60m (197ft)
 surfaceasphalt
 displ threshold441m (1447ft) / 302m (991ft)
 blast zone120m (394ft) / 123m (404ft)

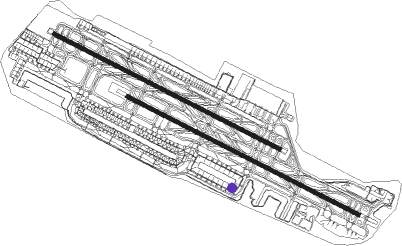

Airport layout - parking location D9


Taxiway locations

 J  K  L1  L2  M  M1  N  P
 P9  R  S  V5  Z
Parking locations

 A1  A10  A2  A3  A4  A5  A6  A7
 A8  A9  B1  B10  B11  B12  B13  B14
 B15  B16  B17  B18L  B19  B2  B20  B21
 B22  B23  B24  B25  B26L  B27  B3  B4
 B5  B6  B7  B8  B9  C18  C19  C20
 C21  C22  C23  C24  C25  C26  C27  C28
 C29  C30  C31  C32  C33  C34  C35  C36
 C37  C38  C39  C40  C41  C42  C43  C44
 C45  C46  C47  C48  C49  C50  C51  C51L
 C51R  C52  C53  C53L  C53R  C54  C54L  C54R
 C55  C55L  C55R  C56  C57  C58  C59  C60
 C61  C62  C63  C64  D1  D10  D2  D3
 D4  D5  D6  D7  D8  D9  E1  E10L
 E10R  E11L  E11R  E12L  E12R  E13  E14  E15
 E16  E17  E18  E19  E2  E20  E21  E22
 E23  E24  E25  E26  E27  E28  E29  E3
 E30  E31  E32  E33  E34  E35  E36  E37
 E38  E39  E4  E40  E41  E42  E43  E44
 E45  E5  E6  E7L  E7R  E8  E9L  E9R
 Emirates  F1  F10  F11  F12  F13  F14  F16
 F17  F18  F19  F2  F20  F21  F22  F23
 F24  F25  F26L  F26R  F27  F3  F4  F5
 F6  F7  F8  F9  G10  G11  G12  G13
 G14  G15  G16  G17  G18  G19  G2  G20
 G21  G3  G4  G5  G6  G7  G8  G9
 H1  H2  H3  Q1  Q10  Q11  Q2  Q3
 Q4  Q5  Q6  Q7  Q8  Q9  S1  S10
 S11  S12  S13  S14  S2  S4  S6  S7
 S8  S9

Nearby beacons

codeidentifierdistbearingfrequency
MINMINHAD VOR/DME13.6172°115.20
RAVRAS AL KHAIMAH VOR/DME37.460°113.60
ABMABUMUSA ISLAND NDB41.8331°285
FJVFUJAIRAH VOR/DME54.599°113.80
SIRSIRRI ISLAND NDB59.2308°300
ALAAL AIN VOR/DME59.8166°115.90
SIRSIRRI ISLAND VOR/DME59.9309°113.75
ALNAL AIN VOR/DME61166°112.60
ADVABU DHABI VOR/DME62.6220°114.25
ALBAL BATEEN (ABU DHABI) VOR/DME69.9228°114

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW12 (ALL)
 DAVM4G39mi25°
 IVUR1G43mi85°
 ANVI5G42mi129°
 EMER2G32mi215°
 KUTL4G33mi228°
 MIRO3G47mi260°
 NABI3G45mi267°
 SENP3G45mi276°
 RIDA3G42mi283°
RW30 (ALL)
 DAVM4F39mi25°
 IVUR1F43mi85°
 ANVI7F42mi129°
 EMER2F32mi215°
 KUTL4F33mi228°
 MIRO3F47mi260°
 NABI3F45mi267°
 SENP2F45mi276°
 RIDA2F42mi283°

STAR starting pointsdistanceinbound heading
RW12 (ALL)
 LORI1E43.366°
 DATO1E35.2114°
 VUTE3E, VUTE3B34.7126°
 PUVA5B, PUVA2E28.2225°
 IMPE3E, IMPE3B41.7292°
RW30 (ALL)
 LORI4D, LORI3C43.366°
 DATO4D, DATO3C35.2114°
 VUTE3C, VUTE3D34.7126°
 PUVA2D, PUVA5C28.2225°
 IMPE3C41.7292°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12LREREK (120°)REREK 2000ft
UKRIM (4mi, 119°) 2000ft
 RNAVUKRIM 2000ft
DB601 (5mi, 119°) 2000ft
OMDB (8mi, 120°) 61ft
DB611 (1mi, 111°)
TALTU (14mi, 105°) 3000ft
TALTU (turn) 3000ft
RW12RREREK (120°)REREK 3000ft
PEDOV (5mi, 121°) 3000ft
 RNAVPEDOV 3000ft
DB658 (2mi, 119°) 3000ft
OMDB (10mi, 119°) 64ft
DB614 (2mi, 119°)
DB655 (12mi, 134°) 4000ft
TALTU (7mi, 49°) 4000ft
TALTU (turn) 4000ft
RW30LULDOT (299°)ULDOT 2000ft
SEDPO (5mi, 299°) 2000ft
 RNAVSEDPO 2000ft
DB713 (4mi, 299°) 2000ft
OMDB (8mi, 299°) 110ft
DB707 (1mi, 299°)
EGNOT (14mi, 285°) 3000ft
EGNOT (turn) 3000ft
RW30RULDOT (299°)ULDOT 3000ft
LOVOL (4mi, 302°) 3000ft
 RNAVLOVOL 3000ft
DB780 (2mi, 299°) 3000ft
OMDB (11mi, 298°) 85ft
DB755 (1mi, 307°)
DB756 (12mi, 314°) 4000ft
EGNOT (7mi, 229°) 4000ft
EGNOT (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DATO1ESOLILVHFleft120 (300)°4000ft - 6000ft1.0min timed210
DATO3CVELARVHFleft300 (120)°4000ft - 6000ft1.0min timed210
DATO4DTUKAKVHFleft300 (120)°4000ft - 6000ft1.0min timed210
IMPE3BPASEVVHFright119 (299)°4000ft - 6000ft1.0min timed210
IMPE3CVELARVHFleft300 (120)°4000ft - 6000ft1.0min timed210
IMPE3ESOLILVHFleft120 (300)°4000ft - 6000ft1.0min timed210
LORI1ESOLILVHFleft120 (300)°4000ft - 6000ft1.0min timed210
LORI3CVELARVHFleft300 (120)°4000ft - 6000ft1.0min timed210
LORI4DTUKAKVHFleft300 (120)°4000ft - 6000ft1.0min timed210
PUVA2DTUKAKVHFleft300 (120)°4000ft - 6000ft1.0min timed210
PUVA2ESOLILVHFleft120 (300)°4000ft - 6000ft1.0min timed210
PUVA5BPASEVVHFright119 (299)°4000ft - 6000ft1.0min timed210
PUVA5CVELARVHFleft300 (120)°4000ft - 6000ft1.0min timed210
VUTE3BPASEVVHFright119 (299)°4000ft - 6000ft1.0min timed210
VUTE3CVELARVHFleft300 (120)°4000ft - 6000ft1.0min timed210
VUTE3DTUKAKVHFleft300 (120)°4000ft - 6000ft1.0min timed210
VUTE3ESOLILVHFleft120 (300)°4000ft - 6000ft1.0min timed210
*) magnetic outbound (inbound) holding course
