Airports for X-Plane

Ras Al Khaimah - Ras Al Khaimah Internatinal

Airport details

CountryUnited Arab Emirates
StateRas al-Khaimah
RegionOM
AirspaceEmirates Ctr
Elevation102ft (31m)
TimezoneGMT +4
Coordinates25.61333, 55.93889
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOMRK
IATA codeRKT
FAA coden/a

Communication

Ras Al Khaimah Internatinal Ground Control121.600
Ras Al Khaimah Internatinal Tower118.250

Approach frequencies

ILS-cat-IRW34110.518.00mi
3° GSRW34110.518.00mi
Nearby Points of Interest:
Ed-Dur
-
Fortress, Diba al Hisn
-
Sharjah

Runway info

Runway 16 / 34
 length3777m (12392ft)
 bearing163° / 343°
 width45m (148ft)
 surfaceasphalt
 blast zone50m (164ft) / 50m (164ft)

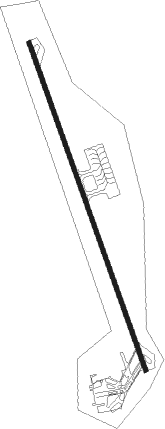

Airport layout


Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
RAVRAS AL KHAIMAH VOR/DME1.5163°113.60
FJVFUJAIRAH VOR/DME38.1141°113.80
MINMINHAD VOR/DME45.9223°115.20
ABMABUMUSA ISLAND NDB52286°285

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW16
 EMOP2S16mi130°
 PUVA1S12mi266°
 ASNE1E, ASNE1W21mi340°
RW34
 EMOP2E, EMOP2W16mi130°
 PUVA1N12mi266°
 ASNE1N21mi340°

STAR starting pointsdistanceinbound heading
RW16
 ALSI1N11.552°
 EGPE2N21.0186°
 LAGL2E, LAGL2W21.1306°
 NADN2E, NADN2W17.5358°
RW34
 ALSI1S11.552°
 EGPE1E, EGPE2W21.0186°
 LAGL1S21.1306°
 NADN2S17.5358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16BOTUT (138°)BOTUT 3000ft
EGMAP (5mi, 76°) 2000ft
RW16DARIV (189°)DARIV 3000ft
EGMAP (5mi, 256°) 2000ft
 RNAVEGMAP 2000ft
RK671 (4mi, 163°) 2000ft
RK162 (4mi, 163°) 860ft
OMRK (4mi, 163°) 114ft
RK661 (7mi, 163°)
ASKUM (9mi, 309°) 3000ft
ASKUM (turn) 3000ft
RW34EGLOP (7°)EGLOP 3000ft
BOSEG (5mi, 76°) 2600ft
RW34GEVAM (320°)GEVAM 3500ft
BOSEG (5mi, 256°) 2600ft
 RNAVBOSEG 2600ft
RK661 (5mi, 343°) 2000ft
RK342 (4mi, 343°) 740ft
OMRK (3mi, 343°) 144ft
EGMAP (12mi, 343°)
EGMAP (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALSI1NASKUMVHFright163 (343)°3000ft - 6000ft1.0min timed210
ALSI1NEGMAPVHFright343 (163)°3000ft - 6000ft1.0min timed210
EGPE2NEGMAPVHFright343 (163)°3000ft - 6000ft1.0min timed210
EGPE2WITIKOVHFleft343 (163)°3000ft - 6000ft1.0min timed210
LAGL2EEGMAPVHFright343 (163)°3000ft - 6000ft1.0min timed210
LAGL2WASKUMVHFright163 (343)°3000ft - 6000ft1.0min timed210
LAGL2WEGMAPVHFright343 (163)°3000ft - 6000ft1.0min timed210
NADN2EEGMAPVHFright343 (163)°3000ft - 6000ft1.0min timed210
NADN2WASKUMVHFright163 (343)°3000ft - 6000ft1.0min timed210
NADN2WEGMAPVHFright343 (163)°3000ft - 6000ft1.0min timed210
*) magnetic outbound (inbound) holding course
