Airports for X-Plane

Sharjah - Sharjah Intl

Airport details

CountryUnited Arab Emirates
StateSharjah Emirate
RegionOM
AirspaceEmirates Ctr
MunicipalitySharjah
Elevation107ft (33m)
TimezoneGMT +4
Coordinates25.33502, 55.49653
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOMSJ
IATA codeSHJ
FAA coden/a

Communication

Sharjah Intl ATIS122.400
Sharjah Intl DUBAI DIR127.900
Sharjah Intl Ground Control121.875
Sharjah Intl Tower118.600
Sharjah Intl DUBAI ARR (S)124.900
Sharjah Intl DUBAI ARR120.250
Sharjah Intl DUBAI ARR (N)124.450
Sharjah Intl DUBAI Departure (S)126.025
Sharjah Intl DUBAI Departure (N)126.200
Sharjah Intl DUBAI Departure (N)120.250
Sharjah Intl DUBAI Departure (S)121.025

Approach frequencies

ILS-cat-IRW30111.9518.00mi
ILS-cat-IRW12108.5518.00mi
3° GSRW30111.9518.00mi
3° GSRW12108.5518.00mi
Nearby Points of Interest:
Sharjah
-
Dubai Creek
-
Ed-Dur

Runway info

Runway 12 / 30
 length4064m (13333ft)
 bearing120° / 300°
 width60m (197ft)
 surfaceasphalt
 displ threshold300m (984ft) / 300m (984ft)
 blast zone130m (427ft) / 130m (427ft)

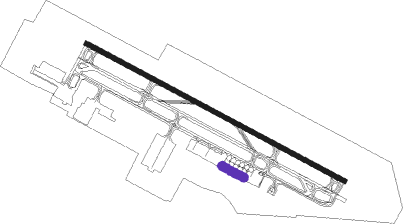

Airport layout - parking location Gate


Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
MINMINHAD VOR/DME19.3198°115.20
RAVRAS AL KHAIMAH VOR/DME28.761°113.60
ABMABUMUSA ISLAND NDB41.4319°285
FJVFUJAIRAH VOR/DME48.6105°113.80
SIRSIRRI ISLAND NDB61.9301°300
SIRSIRRI ISLAND VOR/DME62.6301°113.75
ADVABU DHABI VOR/DME70.9222°114.25

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW12
 DAVM4Q32mi16°
 IVUR1Q36mi91°
 ANVI4Q41mi141°
 EMER1Q40mi220°
 KUTL3Q41mi230°
 MIRO3Q55mi257°
 NABI3Q53mi263°
 SENP3Q52mi270°
 RIDA3Q48mi276°
RW30
 DAVM3R32mi16°
 IVUR1R36mi91°
 ANVI5R41mi141°
 EMER1R40mi220°
 KUTL3R41mi230°
 MIRO2R55mi257°
 NABI2R53mi263°
 SENP2R52mi270°
 RIDA2R48mi276°

STAR starting pointsdistanceinbound heading
RW12
 LORI3K51.964°
 GONV3K32.7127°
 PUVA7K19.8220°
 NOLS3K35.0281°
RW30
 LORI4M51.964°
 GONV4M32.7127°
 PUVA6M19.8220°
 NOLS2M35.0281°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12-YASNUL (231°)ASNUL 6000ft
SJ641 (3mi, 311°) 5100ft
SJ642 (3mi, 312°) 4300ft
SJ643 (5mi, 251°) 2500ft
 RNAVSJ643 2500ft
SJ644 (3mi, 151°) 1625ft
OMSJ (5mi, 125°) 139ft
SJ647 (3mi, 112°)
GIDOL (12mi, 104°) 2000ft
GIDOL (turn) 2000ft
RW12-ZSJ417 (121°)SJ417 2000ft
BOMIV (6mi, 120°) 2000ft
 RNAVBOMIV 2000ft
SJ575 (5mi, 120°) 2000ft
OMSJ (6mi, 124°) 139ft
GIDOL (14mi, 106°) 2000ft
GIDOL (turn) 2000ft
RW30-YUKTAD (244°)UKTAD 6000ft
SJ741 (5mi, 106°) 4650ft
SJ742 (6mi, 188°) 2500ft
 RNAVSJ742 2500ft
SJ743 (2mi, 283°) 1950ft
OMSJ (8mi, 297°) 162ft
SJ744 (2mi, 309°) 1500ft
KITUR (11mi, 300°)
KITUR (turn) 2000ft
RW30-ZNOGSO (299°)NOGSO 2500ft
DAPAD (5mi, 300°) 2000ft
 RNAVDAPAD 2000ft
SJ574 (5mi, 300°) 2000ft
27THR (4mi, 300°) 950ft
OMSJ (5mi, 295°) 162ft
KITUR (14mi, 302°) 2000ft
KITUR (turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GONV3KSOBUNVHFright121 (301)°4000ft - 6000ft1.0min timed210
GONV4MUKROLVHFleft299 (119)°6000ft - 8000ft1.0min timed210
LORI4MUKROLVHFleft299 (119)°6000ft - 8000ft1.0min timed210
NOLS2MIMPIVVHFright93 (273)°7000ft - 9000ft1.0min timed210
NOLS3KSOBUNVHFright121 (301)°4000ft - 6000ft1.0min timed210
PUVA6MUKROLVHFleft299 (119)°6000ft - 8000ft1.0min timed210
PUVA7KSOBUNVHFright121 (301)°4000ft - 6000ft1.0min timed210
*) magnetic outbound (inbound) holding course
