New Islamabad Intl

Airport details

Country	Pakistan
State	Punjab
Region
Airspace	Lahore Ctr
Municipality	Attock District
Elevation	1761ft (537m)
Timezone	GMT +5
Coordinates	33.54964, 72.84676
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	OPIS
IATA code	n/a
FAA code	n/a

Communication

New Islamabad Intl Islamabad Tower (secondary)	119.650
New Islamabad Intl ATIS	126.200
New Islamabad Intl Islamabad Approach	124.650
New Islamabad Intl Clearance Delivery	118.550
New Islamabad Intl Islamabad Ground	130.600
New Islamabad Intl Islamabad Ground (secondary)	122.250
New Islamabad Intl Islamabad Tower	122.150
New Islamabad Intl Islamabad Approach (secondary)	121.650
New Islamabad Intl Islamabad Departure	119.650

Approach frequencies

ILS-cat-III	RW28L	108.1	18.00mi
ILS-cat-I	RW10R	111.3	18.00mi
ILS-cat-I	RW28R	110.7	18.00mi
3° GS	RW10R	111.3	18.00mi
3° GS	RW28L	108.1	18.00mi
3° GS	RW28R	110.7	18.00mi

Nearby Points of Interest:

Taxila

Mohra Muradu

Runway info

Runway 10L / 28R
	length	3657m (11998ft)
	bearing	99° / 279°
	width	45m (148ft)
	surface	asphalt
	blast zone	120m (394ft) / 120m (394ft)
Runway 10R / 28L
	length	3656m (11995ft)
	bearing	99° / 279°
	width	60m (197ft)
	surface	asphalt
	blast zone	122m (400ft) / 122m (400ft)

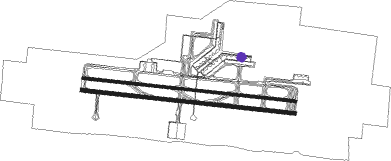

Airport layout - parking location Gate_3_international

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
BTR	ISLAMABAD VOR/DME	0.5	120°	114.60
RN	ISLAMABAD VOR/DME	14.3	79°	112.10
RT	RAWALAKOT NDB	50.8	73°	295
MF	MUZAFFARABAD NDB	57.8	40°	207

Departure and arrival routes

SID end points		distance	outbound heading
RW10 (ALL)
	BOBA1N	63mi	13°
	INDE1E	52mi	152°
	BELK1G	32mi	204°
	DAMT1H	58mi	233°
	KALM1F	41mi	270°
RW10L
	BOBA1Q	63mi	13°
	INDE1G	52mi	152°
	BELK1J	32mi	204°
	DAMT1K	58mi	233°
	KALM1E	41mi	270°
RW10R
	BOBA2L	63mi	13°
	INDE2C	52mi	152°
	BELK2E	32mi	204°
	DAMT2F	58mi	233°
	KALM2C	41mi	270°
RW28 (ALL)
	BOBA1P	63mi	13°
	INDE1F	52mi	152°
	BELK1H	32mi	204°
	DAMT1J	58mi	233°
	KALM1G, KALM1H	41mi	270°
RW28L
	BOBA2M	63mi	13°
	INDE2D	52mi	152°
	BELK2F	32mi	204°
	DAMT2G	58mi	233°
	KALM2D	41mi	270°
RW28R
	BOBA1R	63mi	13°
	INDE1H	52mi	152°
	BELK1K	32mi	204°
	DAMT1L	58mi	233°
	KALM1J	41mi	270°

STAR starting points		distance	inbound heading
ALL
	BELK1C, BELK1D	32.0	24°
	DAMT1E, DAMT1D	57.9	53°
	KALM1A, KALM1B	41.1	90°
	BOBA1K, BOBA1J	63.1	193°
	INDE1A, INDE1B	51.5	332°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10L	BOBAM (193°)	BOBAM IS412 (62mi, 177°) 12000ft IS414 (17mi, 253°) 8000ft SUMEB (12mi, 278°) 5000ft IS416 (6mi, 20°) 3700ft
RW10L	ISDUR (294°)	ISDUR 12000ft IS414 (18mi, 278°) 8000ft SUMEB (12mi, 278°) 5000ft IS416 (6mi, 20°) 3700ft
RW10L	KALMI (90°)	KALMI KIMUL (20mi, 90°) 10000ft IS415 (20mi, 90°) 9000ft IS414 (6mi, 195°) 8000ft SUMEB (12mi, 278°) 5000ft IS416 (6mi, 20°) 3700ft
RW10L	SUMEB (78°)	SUMEB 5000ft IS416 (6mi, 20°) 3700ft
	RNAV	IS416 3700ft IS418 (4mi, 97°) 3700ft OPIS (8mi, 98°) 1786ft IS400 (2mi, 112°) (4552mi, 245°) 4500ft
RW10R	BOBAM (193°)	BOBAM IS412 (62mi, 177°) 12000ft IS414 (17mi, 253°) 8000ft SUMEB (12mi, 278°) 5000ft IS416 (6mi, 20°) 3700ft
RW10R	ISDUR (294°)	ISDUR 12000ft IS414 (18mi, 278°) 8000ft SUMEB (12mi, 278°) 5000ft IS416 (6mi, 20°) 3700ft
RW10R	KALMI (90°)	KALMI KIMUL (20mi, 90°) 10000ft IS415 (20mi, 90°) 9000ft IS414 (6mi, 195°) 8000ft SUMEB (12mi, 278°) 5000ft IS416 (6mi, 20°) 3700ft
RW10R	SUMEB (78°)	SUMEB 5000ft IS416 (6mi, 20°) 3700ft
	RNAV	IS416 3700ft IS417 (4mi, 99°) 3700ft OPIS (8mi, 97°) 1788ft IS400 (2mi, 112°) (4552mi, 245°) 4500ft
RW28L	ISDUR (294°)	ISDUR 6000ft RENUX (9mi, 312°) 3700ft
RW28L	KALMI (90°)	KALMI KIMUL (20mi, 90°) 13000ft SUMEB (9mi, 110°) 11000ft IS414 (12mi, 98°) 8000ft ISBAX (11mi, 98°) 5000ft RENUX (5mi, 13°) 3700ft
	RNAV	RENUX 3700ft IS411 (4mi, 279°) 3700ft OPIS (6mi, 281°) 1802ft IS409 (3mi, 275°) (4547mi, 245°) 3500ft (turn) 4500ft
RW28R	ISDUR (294°)	ISDUR 6000ft RENUX (9mi, 312°) 3700ft
RW28R	KALMI (90°)	KALMI KIMUL (20mi, 90°) 13000ft SUMEB (9mi, 110°) 11000ft IS414 (12mi, 98°) 8000ft ISBAX (11mi, 98°) 5000ft RENUX (5mi, 13°) 3700ft
	RNAV	RENUX 3700ft IS410 (4mi, 280°) 3700ft OPIS (6mi, 280°) 1805ft IS409 (3mi, 275°) (4547mi, 245°) 3500ft (turn) 4500ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BELK1C	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
BELK1D	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
BOBA1J	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
BOBA1K	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
DAMT1D	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
DAMT1E	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
INDE1A	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
INDE1B	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
KALM1A	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
KALM1B	ISDUR	VHF	left	170 (350)°	6000ft - 14000ft	DME 5.0mi	220
*) magnetic outbound (inbound) holding course

Actual weather data

METAR OPIS 131530Z 36006KT 6000 NSC 30/10 Q1005 NOSIG

TAF OPIS 131100Z 1312/1418 31010KT 6000 NSC TEMPO 1316/1322 09008KT 5000 FU TEMPO 1408/1414 31015G30KT 2000 TSRA FEW030CB SCT040 BKN100

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
