Karachi - Karachi Jinnah Intl

Airport details

CountryPakistan
StateSindh
RegionOP
AirspaceKarachi Ctr
MunicipalityKarachi
Elevation100ft (30m)
TimezoneGMT +5
Coordinates24.90856, 67.16276
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOPKC
IATA codeKHI
FAA coden/a

Communication

Karachi Jinnah Intl ATIS126.700
Karachi Jinnah Intl Ground121.600
Karachi Jinnah Intl Ground118.400
Karachi Jinnah Intl Tower118.300
Karachi Jinnah Intl Tower118.800
Karachi Jinnah Intl Approach125.500
Karachi Jinnah Intl Approach121.300

Approach frequencies

ILS-cat-IRW25R110.118.00mi
ILS-cat-IRW25L109.718.00mi
3° GSRW25R110.118.00mi
3° GSRW25L109.718.00mi
Nearby Points of Interest:
Chaukhandi tombs
-
Hub Dam Wildlife Sanctuary
-
Haleji Lake

Runway info

Runway 07R / 25L
 length3397m (11145ft)
 bearing76° / 256°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 190m (623ft)
Runway 07L / 25R
 length3186m (10453ft)
 bearing76° / 256°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

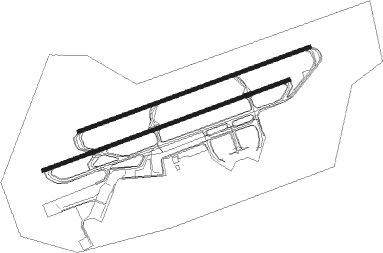

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K  N  P
Parking locations

 Cargo  General  Hangar  Jinnah  Terminal  Western

Nearby beacons

codeidentifierdistbearingfrequency
KCKARACHI NDB0.8350°271
KCKARACHI VOR/DME180°112.10
KOJINNAH INTL (KARACHI) NDB4.776°235
MRKARACHI TACAN12267°112.40
KFGHARO NDB23.3108°296
KACAPE MONZE NDB27.5261°244

Departure and arrival routes

Transition altitude3000ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW07 (ALL)
 BADU3B26mi44°
 PUNA3B26mi77°
 DANG3B26mi115°
 NIRO3B24mi140°
 MELO4D, MELO4E36mi283°
RW07L
 DANG1E26mi115°
 NIRO1E24mi140°
 MELO1L, MELO1M36mi283°
RW07R
 DANG1D26mi115°
 NIRO1D24mi140°
 MELO1H, MELO1J36mi283°
RW25 (ALL)
 BADU3C, BADU3A, BADU1D26mi44°
 PUNA3A26mi77°
 DANG3A, DANG1C26mi115°
 NIRO1C, NIRO3A24mi140°
 MELO1F, MELO1G, MELO4B, MELO4A36mi283°

STAR starting pointsdistanceinbound heading
ALL
 LOTA2A, LOTA2B100.381°
 DOST2A, DOST2B131.0117°
 KE1A146.3257°
 MINAR279.1322°
RW07 (ALL)
 LAKI2A129.381°
 DOST2C131.0117°
RW25 (ALL)
 LAKI1C, LAKI1B129.381°
 DOST1E, DOST1D131.0117°
 CHOR1B146.3257°
 SAPNA192.1335°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07LANRIM (74°)ANRIM
GUMIL (17mi, 84°)
VIRUK (10mi, 84°) 3000ft
KC602 (4mi, 19°) 2200ft
RW07LMAKLI (257°)MAKLI
NOMUS (16mi, 236°)
KETIT (10mi, 256°) 3000ft
KC602 (4mi, 337°) 2200ft
 RNAVKC602 2200ft
KC600 (4mi, 48°) 1600ft
OPKC (5mi, 76°) 127ft
MAKLI (16mi, 77°) 3000ft
RW07RANRIM (74°)ANRIM
GUMIL (17mi, 84°)
VIRUK (10mi, 84°) 3000ft
KC602 (4mi, 19°) 2200ft
RW07RMAKLI (257°)MAKLI
NOMUS (16mi, 236°)
KETIT (10mi, 256°) 3000ft
KC602 (4mi, 337°) 2200ft
 RNAVKC602 2200ft
KC601 (4mi, 47°) 1600ft
OPKC (6mi, 74°) 121ft
MAKLI (16mi, 77°) 3000ft
RW25LMAKL1 (70°)MAKLI
MAKLI (turn) 3000ft
SABEN (4mi, 256°) 3000ft
RW25LMAKL2 (70°)MAKLI
MAKLI (turn) 3000ft
SABEN (4mi, 256°) 3000ft
 RNAVSABEN 3000ft
KC411 (6mi, 256°) 2000ft
OPKC (6mi, 257°) 144ft
KC412 (3mi, 253°)
KC412 (turn) 2000ft
RW25RMAKL1 (70°)MAKLI
MAKLI (turn) 3000ft
SABEN (4mi, 256°) 3000ft
RW25RMAKL2 (70°)MAKLI
MAKLI (turn) 3000ft
SABEN (4mi, 256°) 3000ft
 RNAVSABEN 3000ft
KC401 (5mi, 258°) 2000ft
OPKC (7mi, 256°) 150ft
KC402 (3mi, 256°)
KC402 (turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHOR1BSABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
DOST1DSABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
DOST1ESABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
DOST2AMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
DOST2BMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
DOST2CANRIMVHFright262 (82)°> 9000ft1.0min timed230
KE1AMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
LAKI1BSABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
LAKI1CSABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
LAKI2AANRIMVHFright262 (82)°> 9000ft1.0min timed230
LOTA2AMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
LOTA2BMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
MINAR2MAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
NH1CSABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
NH2AMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
NH2BMAKLIVHFleft75 (255)°> 8000ftDME 5.0mi230
SAPNA1SABENVHFleft74 (254)°3000ft - 7000ft1.0min timed230
*) magnetic outbound (inbound) holding course
