Quetta

Airport details

Country	Pakistan
State	Balochistan
Region	OP
Airspace	Lahore Ctr
Municipality	Quetta
Elevation	5267ft (1605m)
Timezone	GMT +5
Coordinates	30.24287, 66.94502
Magnetic var	2.5°
Type	land
Available since	X-Plane v10.40
ICAO code	OPQT
IATA code	UET
FAA code	n/a

Communication

QUETTA Tower	121.800
QUETTA Tower	118.300

Approach frequencies

ILS-cat-I	RW13L	108.7	18.00mi
3° GS	RW13L	108.7	18.00mi

Runway info

Runway 13 / 31
	length	145m (476ft)
	bearing	134° / 314°
	width	7m (23ft)
	surface	asphalt
Runway 13L / 31R
	length	3660m (12008ft)
	bearing	132° / 312°
	width	46m (150ft)
	surface	asphalt
	blast zone	255m (837ft) / 255m (837ft)
Runway 13R / 31L
	length	3717m (12195ft)
	bearing	132° / 312°
	width	34m (110ft)
	surface	asphalt
	displ threshold	59m (194ft) / 0m (0ft)
	blast zone	255m (837ft) / 121m (397ft)

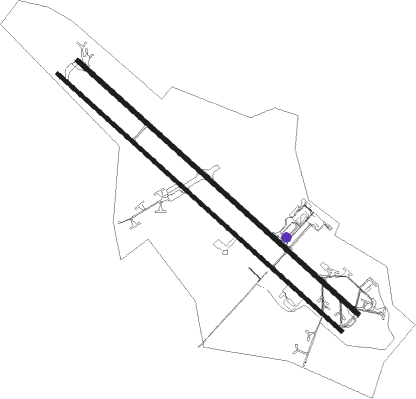

Airport layout - taxiway location K

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	Junglist
Released	12 Aug 2017
Features	› has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
QT	QUETTA NDB	0.7	301°	348
QT	QUETTA VOR/DME	1	329°	114.70
SB	SIBI NDB	61.9	127°	208

Departure and arrival routes

Transition altitude

15000ft

Transition level

17000ft

SID end points		distance	outbound heading
RW31R
	MOMK1A	69mi	65°
	DADL1A	62mi	78°
	PARL1A	60mi	89°
	SIBM2A	69mi	123°
	OVTE1A	74mi	178°
	KALA2A	75mi	197°

STAR starting points		distance	inbound heading
ALL
	ISHA2A	24.6	18°
	KADL1A	24.9	244°
	DORA2A	24.7	257°
	PATG1A	24.6	268°
	AKMA1A	24.4	302°
	VEGS1A	24.5	358°
RW13L
	ISHA1B	24.6	18°
	KADL1B	24.9	244°
	DORA1B	24.7	257°
	PATG1B	24.6	268°
	AKMA1B	24.4	302°
	VEGS1B	24.5	358°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW13L	ARATU (219°)	ARATU 14000ft QT405 (15mi, 273°) 9500ft QT403 (7mi, 220°) 7600ft
RW13L	ONILA (64°)	ONILA 13000ft QT404 (13mi, 351°) 9500ft QT403 (7mi, 60°) 7600ft
	RNAV	QT403 7600ft QT402 (4mi, 132°) 7600ft 46THR (3mi, 132°) 6710ft QT401 (3mi, 132°) 5759ft QT500 (6mi, 132°) QT501 (4mi, 173°) QT502 (8mi, 210°) QT503 (7mi, 210°) ONILA (14mi, 320°) 13000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
AKMA1B	ONILA	VHF	right	170 (350)°	> 13000ft	1.0min timed	230
DORA1B	ARATU	VHF	right	91 (271)°	> 14000ft	1.0min timed	230
ISHA1B	ONILA	VHF	right	170 (350)°	> 13000ft	1.0min timed	230
KADL1B	ARATU	VHF	right	91 (271)°	> 14000ft	1.0min timed	230
PATG1B	ARATU	VHF	right	91 (271)°	> 14000ft	1.0min timed	230
VEGS1B	ONILA	VHF	right	170 (350)°	> 13000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course
