Airports for X-Plane

Hīt - Al Asad Ab

Airport details

Country	Iraq
State	Al-Anbar Governorate
Region	OR
Airspace	Baghdad Ctr
Municipality	Al-Baghdadi Subdistrict
Elevation	618ft (188m)
Timezone	GMT +3
Coordinates	33.78561, 42.44120
Magnetic var	5.2°
Type	land
Available since	X-Plane v10.30
ICAO code	ORAA
IATA code	IQA
FAA code	n/a

Communication

AL ASAD AB Ground Control	121.175
AL ASAD AB Tower	131.225
AL ASAD AB Approach	118.600
AL ASAD AB Approach	127.875

Approach frequencies

ILS-cat-I	RW09L	108.9	18.00mi
ILS-cat-I	RW27R	108.9	18.00mi
3° GS	RW09L	108.9	18.00mi
3° GS	RW27R	108.9	18.00mi

Runway info

Runway 09L / 27R
	length	3993m (13100ft)
	bearing	89° / 269°
	width	60m (197ft)
	surface	asphalt
	blast zone	31m (102ft) / 32m (105ft)
Runway 09R / 27L
	length	3992m (13097ft)
	bearing	89° / 269°
	width	45m (148ft)
	surface	asphalt
	blast zone	29m (95ft) / 31m (102ft)
Runway 08 / 26
	length	3080m (10105ft)
	bearing	89° / 269°
	width	103m (338ft)
	surface	dirt

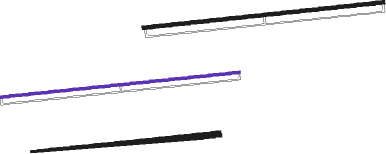

Airport layout - runway 09R / 27L

Recommended scenery file

Type	2D
Author	WEDbot
Released	17 Jan 2015

Nearby beacons

code	identifier	dist	bearing	frequency
RAA	AL ASAD (AL-ANBAR) TACAN	0.1	52°	113.30

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW09L	CEPOB (69°)	CEPOB 6200ft WILLZ (9mi, 34°) 3600ft
	RNAV	WILLZ 3600ft ROLEE (6mi, 89°) 2800ft ORAA (6mi, 91°) 645ft (3133mi, 231°) 1020ft CEPOB (3115mi, 51°) 6200ft CEPOB (turn) 14000ft
RW09R	CEPOB (69°)	CEPOB 6200ft DONAE (8mi, 32°) 3500ft
	RNAV	DONAE 3500ft GRWLR (5mi, 88°) 2300ft ORAA (8mi, 87°) 668ft (3133mi, 231°) 1020ft CEPOB (3115mi, 51°) 6200ft CEPOB (turn) 14000ft
RW27L	BLZRD (290°)	BLZRD 6200ft DRAXY (8mi, 327°) 3700ft
	RNAV	DRAXY 3700ft NOTAE (6mi, 269°) 2300ft ORAA (6mi, 271°) 627ft (3133mi, 231°) 1020ft BLZRD (3143mi, 52°) 6200ft BLZRD (turn) 14000ft
RW27R	FLOGR (287°)	FLOGR 6200ft MAZAM (8mi, 332°) 3900ft
	RNAV	MAZAM 3900ft HAMMR (6mi, 269°) 2400ft ORAA (8mi, 267°) 607ft (3133mi, 231°) 1020ft FLOGR (3145mi, 52°) 6200ft FLOGR (turn) 14000ft
