Sulaymaniyah - Sulaymaniyah Intl

Airport details

Country	Iraq
State	Sulaymaniyah Governorate
Region	OR
Airspace	Baghdad Ctr
Municipality	Slemani
Elevation	2494ft (760m)
Timezone	GMT +3
Coordinates	35.56055, 45.31445
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	ORSU
IATA code	ISU
FAA code	n/a

Communication

Sulaymaniyah Intl Tower	118.300
Sulaymaniyah Intl Approach	127.700

Approach frequencies

ILS-cat-I	RW13	111.1	18.00mi
ILS-cat-I	RW31	111.7	18.00mi
3° GS	RW13	111.1	18.00mi
3° GS	RW31	111.7	18.00mi

Runway info

Runway 13 / 31
	length	3501m (11486ft)
	bearing	128° / 308°
	width	45m (148ft)
	surface	concrete
	blast zone	61m (200ft) / 61m (200ft)

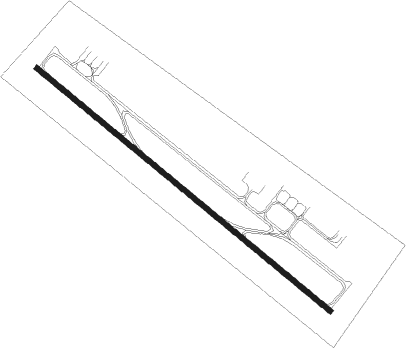

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
SUL	SULAIMANIYAH VOR/DME	1.6	308°	117
ORB	ORBR TACAN	74.9	315°	111

Departure and arrival routes

Transition altitude

14000ft

SID end points		distance	outbound heading
RW13
	KIRKK2	48mi	265°
	ERBIL2	67mi	291°
RW31
	KIRKK1	48mi	265°
	ERBIL1	67mi	291°

STAR starting points		distance	inbound heading
RW13
	KIRKK2	47.5	85°
	ERBIL2	67.3	111°
RW31
	KIRKK1	47.5	85°
	ERBIL1	67.3	111°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW13	DESKU (127°)	DESKU 7550ft TOVEN (6mi, 127°) 6060ft
RW13	TAKVA (105°)	TAKVA 7550ft TOVEN (6mi, 49°) 6060ft
RW13	XADIL (154°)	XADIL 13000ft PARUN (5mi, 196°) 11000ft TOVEN (5mi, 195°) 6060ft
	RNAV	TOVEN 6060ft TASRO (4mi, 127°) 5100ft ORMAM (7mi, 127°) 2834ft (3309mi, 232°) 6500ft TAKVA (3300mi, 52°) 7550ft TAKVA (turn) 7550ft
RW31	ALVEX (307°)	ALVEX 7550ft ORBET (6mi, 308°) 6060ft
RW31	ASKOM (281°)	ASKOM 13000ft NOSKA (5mi, 248°) 11000ft ORBET (5mi, 247°) 6060ft
RW31	KARUX (329°)	KARUX 8500ft ORBET (6mi, 27°) 6060ft
	RNAV	ORBET 6060ft ORGOS (4mi, 307°) 5100ft RANKO (7mi, 307°) 2777ft (3310mi, 232°) 6500ft KARUX (3308mi, 52°) 8500ft KARUX (turn) 8500ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ERBIL1	SUL	NDB	left	130 (310)°	> 8000ft	1.0min timed	ICAO rules
ERBIL2	SUL	NDB	left	130 (310)°	> 8000ft	1.0min timed	ICAO rules
KIRKK1	SUL	NDB	left	130 (310)°	> 8000ft	1.0min timed	ICAO rules
KIRKK2	SUL	NDB	left	130 (310)°	> 8000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course
