Airports for X-Plane

Doha - Doha Intl

Airport details

CountryQatar
StateAd Dawhah Municipality
RegionOT
AirspaceBahrain Ctr
MunicipalityDoha
Elevation37ft (11m)
TimezoneGMT +3
Coordinates25.27514, 51.56067
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOTBD
IATA codeDIA
FAA coden/a

Communication

Doha Intl ATIS126.450
Doha Intl Ground Control121.925
Doha Intl Tower118.900
Doha Intl DOHA Radar121.100
Doha Intl DOHA Director119.400
Doha Intl DOHA Approach119.725
Doha Intl Departure118.900

Approach frequencies

ILS-cat-IIIRW33109.518.00mi
ILS-cat-IRW15108.518.00mi
3.5° GSRW15108.518.00mi
3° GSRW33109.518.00mi

Runway info

Runway 15 / 33
 length4586m (15046ft)
 bearing156° / 336°
 width46m (151ft)
 surfaceasphalt
 displ threshold751m (2464ft) / 0m (0ft)
 blast zone30m (98ft) / 139m (456ft)

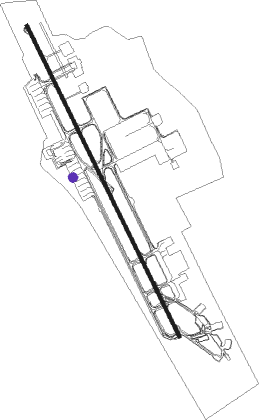

Airport layout - parking location A14


Taxiway locations

 A  B  B1  C  C1  D  D1  D2
 D3  E1  E2  F  G  N  P  Z
Parking locations

 A1  A10  A11  A12  A13  A14  A15  A16
 A17  A18  A2  A3  A4  A5  A6  A9
 BizJet  C1  C2  C3  C4  C5  C6  C7
 C8  C9  E1  E10  E11  E12  E13  E14
 E15  E16  E17  E18  E19  E2  E20  E21
 E22  E23  E24  E25  E26  E27  E28  E29
 E3  E30  E31  E32  E33  E34  E35  E36
 E37  E4  E5  E6  E7  E8  E9  GA
 Heavy  L  W6  W7

Nearby beacons

codeidentifierdistbearingfrequency
DIADOHA INTL VOR/DME2.6158°112.40
DOHDOHA/HAMAD INTL VOR/DME3117°114.40
WKDOHA INTL NDB6157°323
ALDAL UDEID VORTAC16.8232°115.20
SIISA AB (BAHRAIN) NDB63.7303°343
SIAISA AB (BAHRAIN) VORTAC65.3304°117.60

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW15
 ALVE1S42mi27°
 VAXI1S50mi63°
 ALSE1S64mi81°
 NAML1S55mi100°
 BUND1S53mi106°
 SALW1S57mi269°
 PATO1S44mi340°
RW33
 ALVE1N42mi27°
 VAXI1N50mi63°
 ALSE1N64mi81°
 NAML1N55mi100°
 BUND1N53mi106°
 SALW1N57mi269°
 PATO1N44mi340°

STAR starting pointsdistanceinbound heading
RW15
 GINT1A26.589°
 BAYA1A18.8230°
 AFNA1A27.4297°
RW33
 GINT1D26.589°
 BAYA1D18.8230°
 AFNA1D27.4297°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AFNA1AAFNANVHFright88 (268)°15000ft - 22000ft1.5min timed240
AFNA1DAFNANVHFright88 (268)°15000ft - 22000ft1.5min timed240
BAYA1ABAYANVHFleft49 (229)°15000ft - 24000ft1.5min timed240
BAYA1DBAYANVHFleft49 (229)°15000ft - 24000ft1.5min timed240
GINT1AGINTOVHFright267 (87)°15000ft - 21000ft1.5min timed240
GINT1DGINTOVHFright267 (87)°15000ft - 21000ft1.5min timed240
*) magnetic outbound (inbound) holding course
