Airports for X-Plane

Ar Rayyan - Al Udeid Ab

Airport details

CountryQatar
StateAl Rayyan
RegionOT
AirspaceBahrain Ctr
Elevation127ft (39m)
TimezoneGMT +3
Coordinates25.11732, 51.31499
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeOTBH
IATA codeXJD
FAA coden/a

Communication

Al Udeid AB ATIS123.750
Al Udeid AB Ground Control135.500
Al Udeid AB Tower125.500
Al Udeid AB DOHA INFO126.450

Approach frequencies

ILS-cat-IRW16R108.318.00mi
ILS-cat-IRW34R111.318.00mi
ILS-cat-IRW16L110.5518.00mi
ILS-cat-IRW34L111.118.00mi
3° GSRW16R108.318.00mi
3° GSRW34R111.318.00mi
3° GSRW16L110.5518.00mi
3° GSRW34L111.118.00mi
Nearby Points of Interest:
Khawr al Udayd

Runway info

Runway 16R / 34L
 length3762m (12343ft)
 bearing156° / 336°
 width60m (197ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 16L / 34R
 length3762m (12343ft)
 bearing156° / 336°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

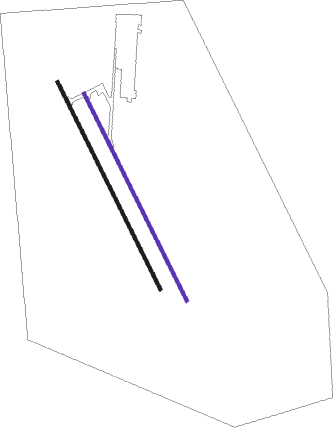

Airport layout - runway 16L / 34R


Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
ALDAL UDEID VORTAC1.5156°115.20
DIADOHA INTL VOR/DME15.866°112.40
WKDOHA INTL NDB15.977°323
DOHDOHA/HAMAD INTL VOR/DME17.866°114.40
BATBATHA VOR/DME54.6171°113.40
SIISA AB (BAHRAIN) NDB60.5318°343
SIAISA AB (BAHRAIN) VORTAC62.2318°117.60

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW34L
 KIRAX123mi142°
RW34R
 KIRAX123mi142°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LITOLA (156°)ITOLA 3000ft
 RNAVITOLA 3000ft
DANID (10mi, 156°) 1800ft
OTBH (6mi, 156°) 207ft
(3335mi, 244°) 532ft
MENTA (3336mi, 64°) 3000ft
MENTA (turn) 8000ft
RW34RMENTA (336°)MENTA 3000ft
 RNAVMENTA 3000ft
DATEM (11mi, 336°) 1800ft
SITOM (4mi, 336°) 395ft
(3335mi, 244°) 480ft
ITOLA (3334mi, 64°) 3000ft
ITOLA (turn) 8000ft
