Ar Rayyan - Al Udeid Ab

Airport details

Country	Qatar
State	Al Rayyan
Region	OT
Airspace	Bahrain Ctr
Elevation	127ft (39m)
Timezone	GMT +3
Coordinates	25.11732, 51.31499
Magnetic var
Type	land
Available since	X-Plane v10.30
ICAO code	OTBH
IATA code	XJD
FAA code	n/a

Communication

Al Udeid AB ATIS	123.750
Al Udeid AB Ground Control	135.500
Al Udeid AB Tower	125.500
Al Udeid AB DOHA INFO	126.450

Approach frequencies

ILS-cat-I	RW16R	108.3	18.00mi
ILS-cat-I	RW34R	111.3	18.00mi
ILS-cat-I	RW16L	110.55	18.00mi
ILS-cat-I	RW34L	111.1	18.00mi
3° GS	RW16R	108.3	18.00mi
3° GS	RW34R	111.3	18.00mi
3° GS	RW16L	110.55	18.00mi
3° GS	RW34L	111.1	18.00mi

Nearby Points of Interest:

Khawr al Udayd

Runway info

Runway 16R / 34L
	length	3762m (12343ft)
	bearing	156° / 336°
	width	60m (197ft)
	surface	asphalt
	blast zone	255m (837ft) / 255m (837ft)
Runway 16L / 34R
	length	3762m (12343ft)
	bearing	156° / 336°
	width	45m (148ft)
	surface	asphalt
	blast zone	255m (837ft) / 255m (837ft)

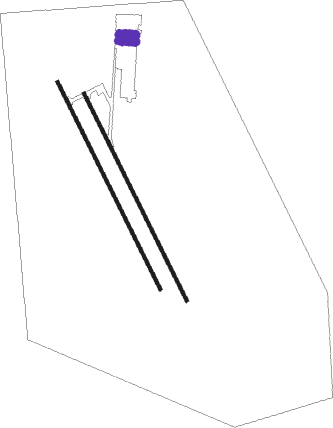

Airport layout - parking location New

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
ALD	AL UDEID VORTAC	1.5	156°	115.20
DIA	DOHA INTL VOR/DME	15.8	66°	112.40
WK	DOHA INTL NDB	15.9	77°	323
DOH	DOHA/HAMAD INTL VOR/DME	17.8	66°	114.40
BAT	BATHA VOR/DME	54.6	171°	113.40
SI	ISA AB (BAHRAIN) NDB	60.5	318°	343
SIA	ISA AB (BAHRAIN) VORTAC	62.2	318°	117.60

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW34L
	KIRAX1	23mi	142°
RW34R
	KIRAX1	23mi	142°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW16L	ITOLA (156°)	ITOLA 3000ft
	RNAV	ITOLA 3000ft DANID (10mi, 156°) 1800ft OTBH (6mi, 156°) 207ft (3335mi, 244°) 532ft MENTA (3336mi, 64°) 3000ft MENTA (turn) 8000ft
RW34R	MENTA (336°)	MENTA 3000ft
	RNAV	MENTA 3000ft DATEM (11mi, 336°) 1800ft SITOM (4mi, 336°) 395ft (3335mi, 244°) 480ft ITOLA (3334mi, 64°) 3000ft ITOLA (turn) 8000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
