Al Ghaidah Intl
Airport details
| Country | Yemen |
| State | Al Mahrah Governorate |
| Region | OY |
| Airspace | Sanaa Ctr |
| Municipality | Al Ghaydah |
| Elevation | 131ft (40m) |
| Timezone | GMT +3 |
| Coordinates | 16.19337, 52.17419 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.30 |
| ICAO code | OYGD |
| IATA code | AAY |
| FAA code | n/a |
Communication
| Al Ghaidah Intl Ground Control | 121.600 |
| Al Ghaidah Intl Tower | 119.300 |

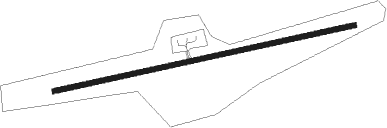

Runway info
| Runway 08 / 26 | ||
| length | 2695m (8842ft) | |
| bearing | 82° / 262° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 64m (210ft) / 64m (210ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| GDA | AL-GHAIDAH NDB | 0.7 | 247° | 354 |
Departure and arrival routes
| Transition altitude | 13000ft |
| Transition level | 15000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW08 | |||
| ASMA1B | 37mi | 72° | |
| DATU1B | 37mi | 118° | |
| ALKE1B | 37mi | 221° | |
| GERI1B | 37mi | 235° | |
| UMIN1B | 37mi | 277° | |
| RW26 | |||
| ASMA1A | 37mi | 72° | |
| DATU1A | 37mi | 118° | |
| ALKE1A | 37mi | 221° | |
| GERI1A | 37mi | 235° | |
| UMIN1A | 37mi | 277° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW08 | |||
| ALKE1D | 37.3 | 41° | |
| GERI1D | 37.2 | 55° | |
| UMIN1D | 37.1 | 97° | |
| ASMA1D | 36.6 | 252° | |
| DATU1D | 37.2 | 298° | |
| RW26 | |||
| ALKE1C | 37.3 | 41° | |
| GERI1C | 37.2 | 55° | |
| UMIN1C | 37.1 | 97° | |
| ASMA1C | 36.6 | 252° | |
| DATU1C | 37.2 | 298° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW08 | GD420 (47°) | GD420 6500ft GD410 (12mi, 352°) 4000ft |
| RW08 | GD440 (111°) | GD440 6500ft GD410 (10mi, 172°) 4000ft |
| RNAV | GD410 4000ft GD400 (10mi, 82°) 2000ft OYGD (6mi, 82°) 186ft GD430 (6mi, 82°) 1300ft GD420 (25mi, 235°) 6500ft GD420 (turn) 6500ft | |
| RW26 | GD530 (235°) | GD530 6000ft GD520 (9mi, 172°) 4000ft |
| RW26 | GD540 (298°) | GD540 7000ft GD520 (12mi, 352°) 4000ft |
| RNAV | GD520 4000ft GD500 (10mi, 262°) 2000ft OYGD (7mi, 262°) 172ft GD550 (5mi, 262°) 1100ft GD540 (24mi, 111°) 7000ft GD540 (turn) 7000ft |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
