Al Ghaidah Intl

Airport details

Country	Yemen
State	Al Mahrah Governorate
Region	OY
Airspace	Sanaa Ctr
Municipality	Al Ghaydah
Elevation	131ft (40m)
Timezone	GMT +3
Coordinates	16.19337, 52.17419
Magnetic var
Type	land
Available since	X-Plane v10.30
ICAO code	OYGD
IATA code	AAY
FAA code	n/a

Communication

Al Ghaidah Intl Ground Control	121.600
Al Ghaidah Intl Tower	119.300

Runway info

Runway 08 / 26
	length	2695m (8842ft)
	bearing	82° / 262°
	width	45m (148ft)
	surface	asphalt
	blast zone	64m (210ft) / 64m (210ft)

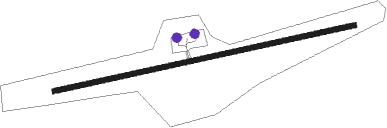

Airport layout - parking location Ramp

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
GDA	AL-GHAIDAH NDB	0.7	247°	354

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW08
	ASMA1B	37mi	72°
	DATU1B	37mi	118°
	ALKE1B	37mi	221°
	GERI1B	37mi	235°
	UMIN1B	37mi	277°
RW26
	ASMA1A	37mi	72°
	DATU1A	37mi	118°
	ALKE1A	37mi	221°
	GERI1A	37mi	235°
	UMIN1A	37mi	277°

STAR starting points		distance	inbound heading
RW08
	ALKE1D	37.3	41°
	GERI1D	37.2	55°
	UMIN1D	37.1	97°
	ASMA1D	36.6	252°
	DATU1D	37.2	298°
RW26
	ALKE1C	37.3	41°
	GERI1C	37.2	55°
	UMIN1C	37.1	97°
	ASMA1C	36.6	252°
	DATU1C	37.2	298°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW08	GD420 (47°)	GD420 6500ft GD410 (12mi, 352°) 4000ft
RW08	GD440 (111°)	GD440 6500ft GD410 (10mi, 172°) 4000ft
	RNAV	GD410 4000ft GD400 (10mi, 82°) 2000ft OYGD (6mi, 82°) 186ft GD430 (6mi, 82°) 1300ft GD420 (25mi, 235°) 6500ft GD420 (turn) 6500ft
RW26	GD530 (235°)	GD530 6000ft GD520 (9mi, 172°) 4000ft
RW26	GD540 (298°)	GD540 7000ft GD520 (12mi, 352°) 4000ft
	RNAV	GD520 4000ft GD500 (10mi, 262°) 2000ft OYGD (7mi, 262°) 172ft GD550 (5mi, 262°) 1100ft GD540 (24mi, 111°) 7000ft GD540 (turn) 7000ft
