Airports for X-Plane

Sana'a - Sanaa Intl

Airport details

CountryYemen
StateAmanat Al Asimah
RegionOY
AirspaceSanaa Ctr
MunicipalityBani AlHareth District
Elevation7125ft (2172m)
TimezoneGMT +3
Coordinates15.47944, 44.21972
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOYSN
IATA codeSAH
FAA coden/a

Communication

Sanaa Intl Sanaa Approach125.700
Sanaa Intl Sanaa Tower118.900
Sanaa Intl Sanaa Tower Secondry118.100
Sanaa Intl Sanaa Ground121.600

Approach frequencies

ILS-cat-IRW18110.918.00mi
3° GSRW18110.918.00mi
Nearby Points of Interest:
old Sana
-
Jabal Haraz

Runway info

Runway 18 / 36
 length3270m (10728ft)
 bearing180° / 360°
 width45m (148ft)
 surfaceasphalt
 blast zone50m (164ft) / 72m (236ft)

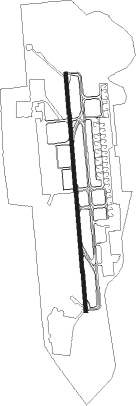

Airport layout


Taxiway locations

 A  B  C  E  F  G
Parking locations

 01  02  03  04  05  06  07  08
 09  10  11  12  13  14  15  16
 17  18  19  1C  1N  20  21  22
 24  26  2C  2N  3C  3N

Nearby beacons

codeidentifierdistbearingfrequency
SAASANAA VOR/DME1.2360°116.10
ANSANAA INTL NDB4.60°228

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW18
 XABI1R41mi5°
 MUTA1R41mi54°
 ITOL1R54mi90°
 PAVE1R43mi183°
 SOKA1R44mi195°
 RAML1R37mi241°
 LUDO1R37mi258°
 GOBL1R47mi284°
 IMSI1R42mi312°
RW36
 XABI2R41mi5°
 MUTA2R41mi54°
 DEP3644mi195°
 IMSI2R42mi312°

STAR starting pointsdistanceinbound heading
ALL
 PAVE1B, PAVE1A42.83°
 SOKA1B, SOKA1A44.115°
 RAML1A, RAML1B36.761°
 LUDO1A, LUDO1B37.378°
 GOBL1B47.2104°
 IMSI1B, IMSI1A42.2132°
 XABI1B, XABI1A41.4185°
 MUTA1B, MUTA1A40.7234°
 ITOL1B54.2270°
RW18
 PAVE1C42.83°
 SOKA1C44.115°
 RAML1C36.761°
 LUDO1C37.378°
 GOBL1A, GOBL1C47.2104°
 IMSI1C42.2132°
 XABI1C41.4185°
 MUTA1C40.7234°
 ITOL1C, ITOL1A54.2270°
RW36
 PAVE2C42.83°
 SOKA2C44.115°
 MUTA2C40.7234°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18SN601 (166°)SN601 13000ft
SN600 (5mi, 89°) 13000ft
RW18SN602 (203°)SN602 13000ft
SN600 (9mi, 270°) 13000ft
RW18SN605 (185°)SN605
SN600 (9mi, 197°) 13000ft
 RNAVSN600 13000ft
NIBAL (9mi, 180°) 11000ft
OYSN (12mi, 180°) 7218ft
(2782mi, 251°) 8000ft
SN703 (2775mi, 71°)
NIBAL (17mi, 22°)
SN600 (9mi, 360°) 13000ft
RW36SN502 (351°)SN502 13000ft
SN501 (7mi, 336°) 10200ft
 RNAVSN501 10200ft
SN500 (3mi, 360°) 9650ft
50THR (3mi, 360°) 8820ft
OYSN (6mi, 360°) 7266ft
OYSN (turn) 7860ft
NIBAL (12mi, 360°) 11000ft
SN600 (9mi, 360°) 13000ft
SN600 (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOBL1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
IMSI1ANIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
IMSI1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
ITOL1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
LUDO1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
MUTA1ANIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
MUTA1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
PAVE1ANIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
PAVE1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
PAVE2CSN503VHFright191 (11)°> 15000ft1.5min timedICAO rules
RAML1ANIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
RAML1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
SOKA1ANIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
SOKA1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
SOKA2CSN503VHFright191 (11)°> 15000ft1.5min timedICAO rules
XABI1ANIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
XABI1BNIBALVHFleft359 (179)°> 11000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
