Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

stolport railway station air terminal aircraft carrier government terminal regional rail transport taxiway nearby corporation plane heliport flight attendant customs public transport air traffic control helicopters arriving airfield traffic pattern

Airports for X-Plane

Kodiak

Airport details

CountryUnited States of America
StateAlaska
RegionPA
MunicipalityKodiak Island
Elevation78ft (24m)
TimezoneGMT -9
Coordinates57.73771, -152.50916
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePADQ
IATA codeADQ
FAA codeADQ

Communication

Kodiak ATIS134.450
Kodiak CTAF119.800
Kodiak UNICOM122.800
Kodiak Ground Control121.900
Kodiak Tower119.800
Kodiak ANCHORAGE CNTR125.100

Approach frequencies

ILS-cat-IRW26110.918.00mi
2° GSRW26110.918.00mi
Nearby Points of Interest:
Coast Guard Base Kodiak
-
Holy Resurrection Church
-
Nativity of Holy Theolokos Church

Runway info

Runway 8 / 26
 length2289m (7510ft)
 bearing91° / 271°
 width46m (150ft)
 surfaceasphalt
 displ threshold347m (1138ft) / 0m (0ft)
 blast zone0m (0ft) / 183m (600ft)
Runway 11 / 29
 length1642m (5387ft)
 bearing112° / 292°
 width46m (150ft)
 surfaceasphalt
 displ threshold134m (440ft) / 170m (558ft)
Runway 1 / 19
 length1524m (5000ft)
 bearing38° / 218°
 width46m (150ft)
 surfaceasphalt
 blast zone59m (194ft) / 80m (262ft)

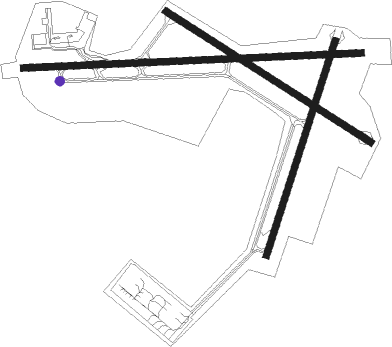

Airport layout - taxiway location D


Taxiway locations

 C  D  E  F
Parking locations

 Alaska  East  Ramp  West

Nearby beacons

codeidentifierdistbearingfrequency
ODKKODIAK VOR/DME5.878°117.10
RWOWOODY ISLAND (KODIAK) NDB6.379°394

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW26FEGEN (243°)FEGEN
RUGVE (9mi, 182°) 4000ft
RW26HINBU (273°)HINBU
RUGVE (9mi, 305°) 4000ft
 RNAVRUGVE 4000ft
MATOE (7mi, 261°) 2500ft
CADUL (6mi, 261°) 576ft
(7100mi, 111°) 576ft
HINBU (7094mi, 291°) 4000ft
HINBU (turn) 4000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
