Airports for X-Plane

Anchorage - Elmendorf Afb

Airport details

CountryUnited States of America
StateAlaska
RegionPA
MunicipalityAnchorage
Elevation211ft (64m)
TimezoneGMT -9
Coordinates61.25851, -149.81595
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePAED
IATA codeEDF
FAA codeEDF

Communication

Elmendorf AFB ATIS124.300
Elmendorf AFB Clearance DEL128.800
Elmendorf AFB Ground Control121.800
Elmendorf AFB Tower127.200
Elmendorf AFB ANCHORAGE Approach118.600
Elmendorf AFB ANCHORAGE Approach134.100
Elmendorf AFB ANCHORAGE Departure118.600

Approach frequencies

ILS-cat-IRW06110.318.00mi
3° GSRW06110.318.00mi
Nearby Points of Interest:
Wendler Building
-
Civil Works Residential Dwellings
-
Pioneer School House
-
McKinley Tower Apartments
-
Leopold David House
-
Alaska Engineering Commission Cottage No. 25
-
A. E. C. Cottage No. 23
-
United States Federal Building and Courthouse
-
Tony Knowles Coastal Trail
-
Oscar Anderson House Museum
-
Oscar Gill House
-
Atwood Campus Center
-
KENI Radio Building
-
Pilgrim 100-B N709Y
-
Site Summit
-
Potter Section House
-
Spring Creek Lodge
-
Beluga Point Site

Runway info

Runway 6 / 24
 length3037m (9964ft)
 bearing85° / 265°
 width61m (200ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 16 / 34
 length2449m (8035ft)
 bearing180° / 0°
 width46m (150ft)
 surfaceasphalt
 displ threshold0m (0ft) / 171m (561ft)
 blast zone255m (837ft) / 46m (151ft)

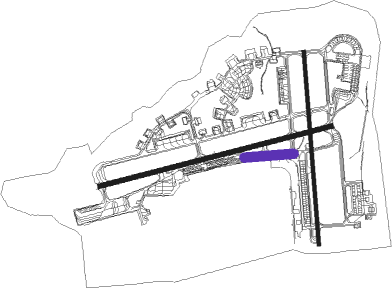

Airport layout - parking location Gold


Taxiway locations

 A  B  D  E  J  K  M  N
 R
Parking locations

 Blue  Charlie  East  Elmendorf  Gold  Hangar  Helicopter  JMC
 North  Ops  Red  West

Nearby beacons

codeidentifierdistbearingfrequency
EDFELMENDORF (ANCHORAGE) TACAN1.394°113.40
TEDANCHORAGE VOR/DME6.8238°113.15
BGQBIG LAKE VORTAC19.1334°112.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06
 MOTTI219mi334°
 EEEGL420mi358°
RW16
 YUKLA220mi220°
RW24
 EEEGL420mi358°
RW34
 MOTTI219mi334°
 EEEGL420mi358°

STAR starting pointsdistanceinbound heading
RW06
 GRUUB133.597°
 JINXX122.4235°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06RNICH (92°)RNICH 3000ft
COSAS (6mi, 109°) 3000ft
 RNAVCOSAS 3000ft
DOYEG (6mi, 85°) 1600ft
CETUX (2mi, 85°) 900ft
PAED (3mi, 81°) 232ft
(6880mi, 112°) 800ft
BGQ (6867mi, 292°) 3000ft
BGQ (turn) 6000ft
