Airports for X-Plane

Fairbanks - Eielson Afb

Airport details

CountryUnited States of America
StateAlaska
RegionPA
MunicipalityFairbanks North Star
Elevation545ft (166m)
TimezoneGMT -9
Coordinates64.68151, -147.10536
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePAEI
IATA codeEIL
FAA codeEIL

Communication

Eielson AFB ASOS118.525
Eielson AFB ASOS119.275
Eielson AFB Ground Control121.800
Eielson AFB RANGE CON125.300
Eielson AFB Tower127.200
Eielson AFB FAIRBANKS Approach125.350
Eielson AFB FAIRBANKS Approach126.500
Eielson AFB FAIRBANKS Departure126.500

Approach frequencies

ILS-cat-IRW32109.918.00mi
ILS-cat-IRW14110.518.00mi
2.7° GSRW32109.918.00mi
2.7° GSRW14110.518.00mi
Nearby Points of Interest:
Ladd Army Airfield

Runway info

Runway 14 / 32
 length4409m (14465ft)
 bearing138° / 318°
 width43m (141ft)
 surfaceconcrete

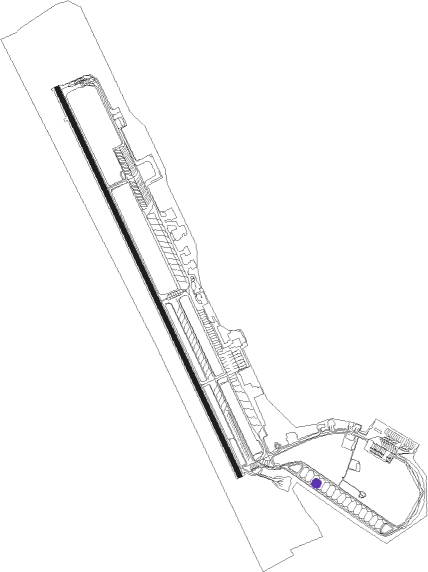

Airport layout - parking location T3


Taxiway locations

 32  A  B  C  D  E  F  G
 H  J  L
Parking locations

 B1  B2  B3  B4  H1  H2  J1  J2
 J3  J4  T2  T3  T4  T5

Nearby beacons

codeidentifierdistbearingfrequency
EILEIELSON (FAIRBANKS) TACAN1.6158°115.10
CUNCHENA (FAIRBANKS) NDB13.7292°257
FAIFAIRBANKS VORTAC24.3277°108.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW14
 WAPAX378mi55°
 DELTA626mi100°
 ARUNY323mi185°
 HAWGG7202mi221°
 BOJAA219mi250°
 HAPLO3, NENNA551mi267°
RW32
 WAPAX378mi55°
 DELTA626mi100°
 ARUNY323mi185°
 HAWGG7202mi221°
 BOJAA219mi250°
 JEWLL2, NENNA551mi267°

STAR starting pointsdistanceinbound heading
RW14
 FALCO526.7163°
RW32
 FALCO526.7163°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14FALCO (140°)FALCO 5000ft
JAMMM (8mi, 145°) 4000ft
 RNAVJAMMM 4000ft
BRBAK (6mi, 138°) 2100ft
PAEI (5mi, 135°) 588ft
(6669mi, 114°) 1100ft
WAKOV (6679mi, 294°) 4000ft
WAKOV (turn) 6000ft
RW32CIGVU (320°)CIGVU 4500ft
RW32ZANLO (35°)ZANLO 4500ft
CIGVU (12mi, 81°) 4500ft
 RNAVCIGVU 4500ft
JONSY (8mi, 319°) 2400ft
CEVDO (2mi, 319°) 1400ft
PAEI (6mi, 322°) 597ft
(6669mi, 114°) 1100ft
FALCO (6658mi, 294°) 6000ft
FALCO (turn) 8000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
FALCO5FALCOVHFright322 (142)°DME 9.0miICAO rules
*) magnetic outbound (inbound) holding course
