Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

aviation hospital airports buildings heliport embassy bus airliner airport check-in passengers road airfield aircraft carrier jet nearby immigration asphalt airport flown grass

Airports for X-Plane

Nome

Airport details

CountryUnited States of America
StateAlaska
RegionPA
MunicipalityNome
Elevation37ft (11m)
TimezoneGMT -9
Coordinates64.51255, -165.44437
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePAOM
IATA codeOME
FAA codeOME

Communication

Nome ASOS119.925
Nome CTAF123.600
Nome Anchorage ARTCC133.300

Approach frequencies

ILS-cat-IRW28108.718.00mi
3° GSRW28108.718.00mi
Nearby Points of Interest:
Discovery Saloon
-
Swanberg Dredge
-
Cape Nome Mining District Discovery Sites
-
Cape Nome Roadhouse

Runway info

Runway 3 / 21
 length1883m (6178ft)
 bearing64° / 244°
 width50m (164ft)
 surfaceasphalt
 displ threshold191m (627ft) / 183m (600ft)
 blast zone0m (0ft) / 60m (197ft)
Runway 10 / 28
 length1825m (5988ft)
 bearing99° / 279°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 63m (207ft)

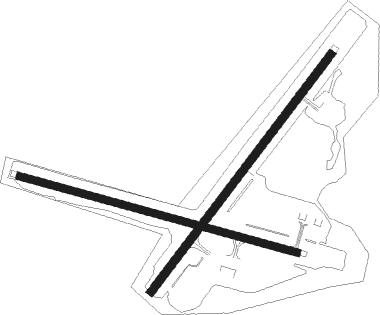

Airport layout


Taxiway locations

 10  21  D  E  F  G  H  J
Parking locations

 Bering  Gravel  Hangar  Terminal  Tie

Nearby beacons

codeidentifierdistbearingfrequency
OYN(NOME) DME0.390°113.80
FDVFORT DAVIS (NOME) NDB3.598°529
OMENOME VOR/DME5.298°115

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03MAREE (64°)MAREE 1700ft
 RNAVMAREE 1700ft
GLOOP (6mi, 64°) 1600ft
PAOM (5mi, 63°) 63ft
(6883mi, 111°) 438ft
MAREE (6893mi, 291°) 1700ft
MAREE (turn)
RW10SPYVY (98°)SPYVY 3700ft
 RNAVSPYVY 3700ft
HUFBU (4mi, 99°) 2600ft
BOYUK (3mi, 99°) 2400ft
URUPE (5mi, 99°) 960ft
PAOM (3mi, 98°) 57ft
(6883mi, 111°) 340ft
EMMMO (6884mi, 291°) 3000ft
EMMMO (turn)
RW28EMMMO (279°)EMMMO 3000ft
 RNAVEMMMO 3000ft
MUKDE (7mi, 279°) 1700ft
FOVAG (3mi, 279°) 800ft
PAOM (3mi, 280°) 76ft
(6883mi, 111°) 272ft
SPYVY (6883mi, 291°) 3700ft
SPYVY (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
