Airports for X-Plane

Kotzebue - Ralph Wien Memorial

Airport details

CountryUnited States of America
StateAlaska
RegionPA
MunicipalityKotzebue
Elevation14ft (4m)
TimezoneGMT -9
Coordinates66.88480, -162.59814
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePAOT
IATA codeOTZ
FAA codeOTZ

Communication

Ralph Wien Memorial ASOS135.450
Ralph Wien Memorial UNICOM122.800
Ralph Wien Memorial CTAF123.600
Ralph Wien Memorial Anchorage ARTCC119.200

Approach frequencies

ILS-cat-IRW09110.718.00mi
3° GSRW09110.718.00mi

Runway info

Runway 9 / 27
 length1906m (6253ft)
 bearing95° / 275°
 width50m (164ft)
 surfaceasphalt
 displ threshold120m (394ft) / 0m (0ft)
Runway 18 / 36
 length1183m (3881ft)
 bearing212° / 32°
 width27m (89ft)
 surfacegravel

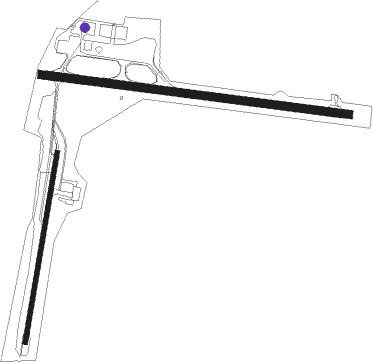

Airport layout - parking location NW-1


Taxiway locations

 B  C  D
Parking locations

 ANG  Cargo  Cargo-2-2  GA-2  GA-3  Gate  Hangar  N
 NW-1  NW-Cargo  W

Nearby beacons

codeidentifierdistbearingfrequency
HHMHOTHAM (KOTZEBUE) NDB1.264°356
OTZKOTZEBUE VOR/DME1.389°115.70
OQKNOATAK NDB42331°414

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09GIGRE (102°)GIGRE
KOTEC (5mi, 139°) 1900ft
RW09HERDU (80°)HERDU
KOTEC (9mi, 27°) 1900ft
RW09KOTEC (95°)KOTEC 6000ft
KOTEC (turn) 1900ft
 RNAVKOTEC 1900ft
ZIKBO (7mi, 95°) 1500ft
PAOT (5mi, 96°) 55ft
(6726mi, 112°) 500ft
HERDU (6736mi, 292°) 2000ft
HERDU (turn)
RW27LIYRE (291°)LIYRE
NEMDE (8mi, 29°) 2000ft
RW27NEMDE (274°)NEMDE 14000ft
NEMDE (turn) 2000ft
RW27ZIPYU (261°)ZIPYU
NEMDE (8mi, 209°) 2000ft
 RNAVNEMDE 2000ft
ACUDU (7mi, 275°) 1600ft
JUTIX (2mi, 275°) 800ft
PAOT (3mi, 273°) 62ft
(6726mi, 112°) 415ft
NEMDE (6725mi, 292°) 2000ft
NEMDE (turn)
