Airports for X-Plane

Port Heiden

Airport details

CountryUnited States of America
StateAlaska
RegionPA
MunicipalityPort Heiden
Elevation95ft (29m)
TimezoneGMT -9
Coordinates56.95910, -158.63336
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePAPH
IATA codePTH
FAA codePTH

Communication

Port Heiden AWOS 3135.400
Port Heiden CTAF122.800

Runway info

Runway 05 / 23
 length1531m (5023ft)
 bearing79° / 259°
 width30m (100ft)
 surfacegravel
 blast zone152m (499ft) / 255m (837ft)
Runway 13 / 31
 length1223m (4012ft)
 bearing131° / 311°
 width30m (100ft)
 surfacegravel
 blast zone186m (610ft) / 166m (545ft)

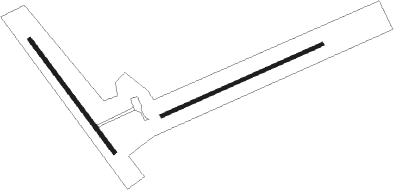

Airport layout


Parking locations

 GA

Nearby beacons

codeidentifierdistbearingfrequency
PDNHEIDEN DME-ILS0.5251°109.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06
 ITAWU214mi282°
RW14
 ITAWU214mi282°
RW24
 ITAWU214mi282°
RW32
 ITAWU214mi282°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06BEBCU (79°)BEBCU 2500ft
RW06LECIC (98°)LECIC
BEBCU (8mi, 146°) 2500ft
RW06RACOC (51°)RACOC
BEBCU (8mi, 327°) 2500ft
 RNAVBEBCU 2500ft
OGEGE (6mi, 79°) 1700ft
ZUBMA (4mi, 79°) 281ft
(7238mi, 110°) 495ft
BEBCU (7246mi, 290°) 2500ft
BEBCU (turn)
RW14ITAWU (102°)ITAWU
UPPIV (8mi, 71°) 2900ft
RW14NIRUW (182°)NIRUW
UPPIV (8mi, 251°) 2900ft
RW14UPPIV (128°)UPPIV 2900ft
 RNAVUPPIV 2900ft
CIGNO (6mi, 130°) 1700ft
ZUDAL (4mi, 130°) 265ft
(7238mi, 110°) 495ft
UPPIV (7232mi, 290°) 2900ft
UPPIV (turn) 2900ft
