Kapolei - Kalaeloa

Airport details

CountryUnited States of America
StateHawaii
RegionPH
AirspaceHonolulu Control Facility Ctr
MunicipalityKapolei
Elevation20ft (6m)
TimezoneGMT -10
Coordinates21.30264, -158.06380
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePHJR
IATA codeJRF
FAA codeJRF

Communication

Kalaeloa ATIS119.800
Kalaeloa CTAF132.600
Kalaeloa Clearance DEL121.700
Kalaeloa Ground Control123.800
Kalaeloa Tower132.600
Kalaeloa HONOLULU Approach/Departure118.300
Nearby Points of Interest:
Honouliuli Internment Camp
-
Naval Station Pearl Harbor
-
USS Arizona Memorial
-
Palm Circle
-
Kaumakapili Church
-
Kakaako Pumping Station
-
C. Brewer Building
-
Joseph W. Podmore Building
-
Merchant Street Historic District
-
Kamehameha V Post Office
-
Kapuāiwa Building
-
YWCA Building
-
Aliiolani Hale
-
Royal Brewery
-
Hawaii State Library
-
Linekona School
-
Georges de S. Canavarro House
-
Kukaniloko Birth Site
-
H. Alexander Walker Residence
-
Thomas Alexander Burningham House
-
Alfred Hocking House
-
Koʻolau Range
-
Sacred Heart Church-Punahou
-
Lihiwai
-
George D. Oakley House

Runway info

Runway 4R / 22L
 length2441m (8009ft)
 bearing57° / 237°
 width61m (200ft)
 surfaceasphalt
 blast zone0m (0ft) / 55m (180ft)
Runway 11 / 29
 length1830m (6004ft)
 bearing117° / 297°
 width61m (200ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 4L / 22R
 length1371m (4498ft)
 bearing57° / 237°
 width61m (200ft)
 surfaceasphalt

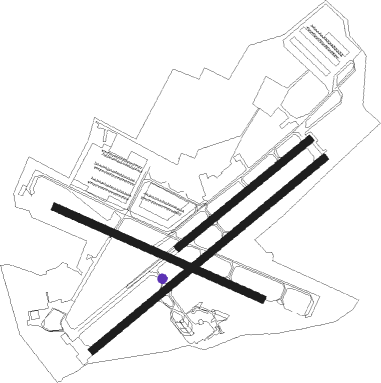

Airport layout - taxiway location A2


Taxiway locations

 A1  A2  B1  B2  B3  B4  C  C1
 C2  C3  C4  C5
Parking locations

 GA  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
HNEWABE (HONOLULU) NDB1.534°242
HNLHONOLULU VORTAC7.488°114.80
NGFKANEOHE BAY (MOKAPU) TACAN19.463°114.60
NGFKANEOHE BAY (MOKAPU) NDB19.564°265
CKHKOKO HEAD VORTAC20.396°113.90
MKKMOLOKAI (KAUNAKAKAI) VORTAC51.1100°116.10

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW11
 JELIE1186mi14°
RW22L
 JELIE1186mi14°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04RHNL (268°)HNL
SIMSN (17mi, 251°) 2300ft
SIMSN (turn) 2000ft
RW04RKEOLA (89°)KEOLA
GECKO (12mi, 120°) 4000ft
SIMSN (5mi, 80°) 2000ft
 RNAVSIMSN 2000ft
HIKAG (5mi, 57°) 1500ft
PHJR (5mi, 61°) 66ft
(8996mi, 98°) 430ft
GECKO (9011mi, 278°) 3000ft
GECKO (turn)
