Airports for X-Plane

Honolulu - Daniel K. Inouye Intl

Airport details

CountryUnited States of America
StateHawaii
RegionPH
AirspaceHonolulu Control Facility Ctr
MunicipalityHonolulu
Elevation13ft (4m)
TimezoneGMT -10
Coordinates21.32190, -157.90831
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePHNL
IATA codeHNL
FAA codeHNL

Communication

Daniel K. Inouye Intl ATIS127.900
Daniel K. Inouye Intl Clearance Delivery121.400
Daniel K. Inouye Intl Ground121.900
Daniel K. Inouye Intl Tower118.100
Daniel K. Inouye Intl Tower123.900
Daniel K. Inouye Intl Approach118.300
Daniel K. Inouye Intl Departure118.300
Daniel K. Inouye Intl Departure124.800

Approach frequencies

LDARW26L109.118.00mi
ILS-cat-IRW08L111.718.00mi
ILS-cat-IRW04R110.518.00mi
3° GSRW08L111.718.00mi
3° GSRW04R110.518.00mi
Nearby Points of Interest:
Palm Circle
-
Kaumakapili Church
-
C. Brewer Building
-
Joseph W. Podmore Building
-
Naval Station Pearl Harbor
-
Kamehameha V Post Office
-
Merchant Street Historic District
-
Kakaako Pumping Station
-
Kapuāiwa Building
-
YWCA Building
-
Aliiolani Hale
-
Royal Brewery
-
Hawaii State Library
-
Linekona School
-
USS Arizona Memorial
-
Georges de S. Canavarro House
-
H. Alexander Walker Residence
-
Thomas Alexander Burningham House
-
Alfred Hocking House
-
Lihiwai
-
Sacred Heart Church-Punahou
-
George D. Oakley House
-
James L. Coke House
-
John Guild House
-
R.N. Linn House

Runway info

Runway 8L / 26R
 length3748m (12297ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceasphalt
 blast zone171m (561ft) / 215m (705ft)
Runway 8R / 26L
 length3651m (11978ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceasphalt
 blast zone170m (558ft) / 170m (558ft)
Runway 4R / 22L
 length2746m (9009ft)
 bearing55° / 235°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 66m (217ft)
Runway 4L / 22R
 length2121m (6959ft)
 bearing55° / 235°
 width46m (150ft)
 surfaceasphalt
 blast zone66m (217ft) / 0m (0ft)
Runway 08 / 26
 length1526m (5007ft)
 bearing90° / 270°
 width91m (300ft)
Runway 04 / 22
 length915m (3002ft)
 bearing55° / 235°
 width46m (150ft)

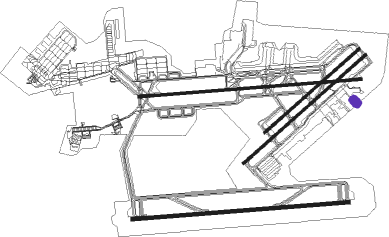

Airport layout - parking location Magnum


Taxiway locations

 A  A1  A2  A3  A4  B  C  D
 E  F  G  H  K  L  M  N
 P  RA  RB  RC  RG  RH  RM  RT
 S  T  V  Y  Z
Parking locations

 1A  1B  2  2B  4  5  A13  A14
 A15  A16  A17  A18  A19  A20  AFB  B1
 B2  B4  B5  C1  C2  C3  C4  C5
 C6  C7  C8  C9  Cargo  Commuter  D1  D2
 E1  E10  E2  E3  E4  E5  E6  E7
 E8  E9  F1  F2  FDX  G1  G2  G3
 G4  G5  G6  GA  HAL  Hawaii  Kamaka  Landmark
 Magnum  Mauna  Prop  Ramp  South  UPS

Nearby beacons

codeidentifierdistbearingfrequency
HNLHONOLULU VORTAC1.4238°114.80
HNEWABE (HONOLULU) NDB7.8271°242
NGFKANEOHE BAY (MOKAPU) NDB11.650°265
CKHKOKO HEAD VORTAC11.9105°113.90
MKKMOLOKAI (KAUNAKAKAI) VORTAC42.9104°116.10
LLDLANAI NDB61.9120°353
LNYLANAI (LANAI CITY) VORTAC62.3121°117.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04L
 MKK4183mi12°
 PALAY343mi104°
 OPIHI3157mi175°
 KEOLA397mi290°
RW04R
 MKK4183mi12°
 PALAY343mi104°
 OPIHI3157mi175°
 KEOLA397mi290°
RW08L
 MKK4183mi12°
 PALAY343mi104°
 PIPLN112mi169°
 OPIHI3157mi175°
 KEOLA397mi290°
RW08R
 MKK4183mi12°
 PALAY343mi104°
 PIPLN112mi169°
 OPIHI3157mi175°
 KEOLA397mi290°
RW22L
 MKK4183mi12°
 KEAHI3134mi119°
 BANZI112mi224°
RW22R
 MKK4183mi12°
 KEAHI3134mi119°
 BANZI112mi224°
RW26L
 MKK4183mi12°
 PALAY343mi104°
 KEAHI3134mi119°
 OPIHI3157mi175°
 BANZI112mi224°
 KEOLA397mi290°
RW26R
 MKK4183mi12°
 PALAY343mi104°
 KEAHI3134mi119°
 OPIHI3157mi175°
 BANZI112mi224°
 KEOLA397mi290°

STAR starting pointsdistanceinbound heading
ALL
 OPACA429.441°
 BOOKE831.4105°
 KAENA225.7125°
 MAGGI361.1241°
 SYMIN127.9257°
 SAKKI533.2313°
 SHLAE133.1313°
 MAKAH128.5317°
 JULLE528.6317°
RW04 (ALL)
 KLANI321.797°
RW08 (ALL)
 KLANI321.797°
RW26 (ALL)
 KLANI321.797°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04LALANA (7°)ALANA
FEXAN (6mi, 307°) 3000ft
GIDME (5mi, 321°) 2000ft
RW04LBOOKE (105°)BOOKE
GECKO (18mi, 153°) 2000ft
GIDME (13mi, 86°) 2000ft
RW04LGIDME (56°)GIDME 2000ft
 RNAVGIDME 2000ft
MAKAI (5mi, 55°) 2000ft
CEDRI (5mi, 55°) 383ft
(8991mi, 98°) 500ft
ALANA (9000mi, 278°) 3000ft
ALANA (turn)
RW04RYHAURY (67°)HAURY 4000ft
RCHEW (3mi, 109°) 2500ft
RW04RYHUBAP (12°)HUBAP 7000ft
JOGOB (7mi, 235°) 4200ft
RCHEW (4mi, 321°) 2500ft
RW04RYJULLE (317°)JULLE
LUYEV (24mi, 279°) 5000ft
RCHEW (12mi, 335°) 2500ft
RW04RYKEOLA (88°)KEOLA
GECKO (12mi, 120°) 5000ft
RCHEW (13mi, 86°) 2500ft
 RNAVRCHEW 2500ft
PERLY (6mi, 55°) 1500ft
FALOS (4mi, 55°) 382ft
(8991mi, 98°) 413ft
ALANA (9000mi, 278°) 3000ft
ALANA (turn)
RW04RZALANA (7°)ALANA 6000ft
WORUB (9mi, 299°) 4500ft
XUMWE (4mi, 357°) 3200ft
DEBRY (3mi, 55°) 2500ft
RW04RZHAURY (67°)HAURY 4000ft
ULAJY (4mi, 85°) 3000ft
DEBRY (2mi, 82°) 2500ft
RW04RZHUBAP (12°)HUBAP 7000ft
CIXOP (4mi, 235°) 6300ft
WIKUR (3mi, 235°) 5300ft
WORUB (2mi, 267°) 4500ft
XUMWE (4mi, 357°) 3200ft
DEBRY (3mi, 55°) 2500ft
RW04RZZEPAS (55°)ZEPAS
YETUC (5mi, 55°) 4800ft
XUMWE (5mi, 55°) 3200ft
DEBRY (3mi, 55°) 2500ft
 RNAVDEBRY 2500ft
PERLY (3mi, 55°) 1500ft
PHNL (6mi, 57°) 63ft
(8989mi, 98°) 580ft
ALANA (9000mi, 278°) 3000ft
ALANA (turn)
RW08LYBOOKE (105°)BOOKE
SELIC (15mi, 121°) 3600ft
RW08LYGECKO (72°)GECKO
SELIC (9mi, 34°) 3600ft
RW08LYOOKAH (46°)OOKAH 6000ft
PAKOE (13mi, 270°) 4200ft
SELIC (5mi, 360°) 3600ft
RW08LYSELIC (91°)SELIC 3600ft
 RNAVSELIC 3600ft
JUNGL (6mi, 90°) 3100ft
CAPVI (4mi, 90°) 1940ft
PHNL (8mi, 91°) 68ft
(8989mi, 98°) 413ft
ALANA (9000mi, 278°) 3600ft
ALANA (turn) 3600ft
RW08LZOOKAH (46°)OOKAH 6000ft
XUSLY (4mi, 270°) 4800ft
JIBNI (5mi, 331°) 3000ft
FGTRE (2mi, 64°) 2200ft
RW08LZZOBUX (90°)ZOBUX
SELIC (5mi, 90°) 5000ft
MAKOA (6mi, 90°) 3100ft
FGTRE (3mi, 90°) 2200ft
 RNAVFGTRE 2200ft
PHNL (9mi, 91°) 68ft
(8989mi, 98°) 420ft
ALANA (9000mi, 278°) 3000ft
ALANA (turn)
RW08RALANA (7°)ALANA
PENRE (15mi, 282°) 3100ft
KITKE (11mi, 0°) 3100ft
RW08RBOOKE (105°)BOOKE
HADIG (13mi, 134°) 3100ft
KITKE (5mi, 90°) 3100ft
RW08RGECKO (72°)GECKO
KITKE (9mi, 45°) 3100ft
 RNAVKITKE 3100ft
COLIS (5mi, 90°) 3100ft
HUXOR (3mi, 90°) 2000ft
EVEVE (4mi, 90°) 700ft
PHNL (4mi, 78°) 62ft
(8989mi, 98°) 500ft
ALANA (9000mi, 278°) 3100ft
ALANA (turn) 3100ft
RW26LSAKKI (313°)SAKKI 10000ft
SECIL (23mi, 313°) 3000ft
 RNAVSECIL 3000ft
KUHIO (4mi, 313°) 2000ft
IBICU (3mi, 325°)
NALII (2mi, 297°)
PHNL (2mi, 305°) 85ft
KABTE (2mi, 248°)
LAYIG (9mi, 208°)
ALANA (7mi, 142°) 3000ft
ALANA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
INOYI1BAMBOVHFright39 (219)°< 17999ft1.0min timedICAO rules
JULLE5JULLEVHFleft98 (278)°< 60000ft1.0min timedICAO rules
KLANI3BAFREVHFright291 (111)°DME 10.0miICAO rules
MAGGI3BAMBOVHFright39 (219)°< 17999ft1.0min timedICAO rules
OPACA4OPACAVHFleft207 (27)°< 60000ftDME 7.0miICAO rules
SAKKI5SAKKIVHFleft98 (278)°< 14000ft1.0min timedICAO rules
SYMIN1SYMINVHFright30 (210)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
