Airports for X-Plane

Osaka - Kansai Intl

Airport details

CountryJapan
StateOsaka Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityIzumisano
Elevation23ft (7m)
TimezoneGMT +9
Coordinates34.43935, 135.25681
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJBB
IATA codeKIX
FAA coden/a

Communication

Kansai Intl ATIS127.850
Kansai Intl Clearance DEL121.900
Kansai Intl Ground Control121.600
Kansai Intl Tower126.200
Kansai Intl Tower118.050
Kansai Intl Tower118.200
Kansai Intl Approach120.250
Kansai Intl Departure119.200

Approach frequencies

ILS-cat-IIRW06R108.118.00mi
ILS-cat-IIRW06L108.718.00mi
ILS-cat-IIRW24L110.718.00mi
ILS-cat-IIRW24R108.518.00mi
3° GSRW06R108.118.00mi
3° GSRW06L108.718.00mi
3° GSRW24L110.718.00mi
3° GSRW24R108.518.00mi

Runway info

Runway 06R / 24L
 length3500m (11483ft)
 bearing56° / 236°
 width60m (197ft)
 surfaceasphalt
 blast zone59m (194ft) / 65m (213ft)
Runway 06L / 24R
 length3998m (13117ft)
 bearing56° / 236°
 width60m (197ft)
 surfaceasphalt
 blast zone63m (207ft) / 62m (203ft)

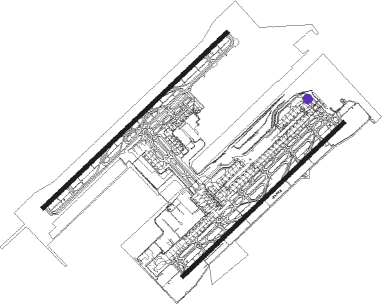

Airport layout - taxiway location J1


Taxiway locations

 A1  A10  A11  A12  A13  A14  A2  A3
 A4  A5  A6  A7  A8  A9  B1  B10
 B12  B14  B3  B5  B6  B7  B8  B9
 E1  E2  E4  E6  E7  J1  J3  J4
 L  N1  N2  N3  P  R  S1  S2
 S4  S5  U  W8  Y
Parking locations

 Gate  INTL  M5  Runup  TERM

Nearby beacons

codeidentifierdistbearingfrequency
KIEKANSAI VOR/DME2.5255°111.60
KCEKOBE VOR/DME11.5352°111.25
YOEYAO VOR/DME19.265°114.60
ITEITAMI VOR/DME23.122°114.75
AJDDME28.8253°115.60
GBDDME32.6196°116.90
TSCTOKUSHIMA VORTAC37.1244°114.90
TSTOKUSHIMA NDB37.3244°332
KJTKOMATSUSHIMA TACAN40.8235°113.55
NKENANKI VOR/DME47172°109.05
STDDME48.8274°114.40
KECKUSHIMOTO VORTAC65.3152°112.90

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW06L
 ISPUM1, NANKO286mi55°
 TOMOH3, SUSAN295mi240°
 DAISY257mi260°
 HELEN293mi271°
 MAIKO963mi353°
RW06R
 ISPUM1, NANKO286mi55°
 TOMOH3, SUSAN295mi240°
 DAISY257mi260°
 HELEN293mi271°
 MAIKO963mi353°
RW24 (ALL)
 TOMO1W95mi240°
RW24L
 NANKO2, ISPUM186mi55°
 TOMOH3, SUSAN2, KITAN295mi240°
 DAISY257mi260°
 IWAYA2, HELEN293mi271°
 MAIKO9, FERRY663mi353°
RW24R
 NANKO2, ISPUM186mi55°
 SUSAN2, KITAN2, TOMOH395mi240°
 DAISY257mi260°
 IWAYA2, HELEN293mi271°
 MAIKO9, FERRY663mi353°

STAR starting pointsdistanceinbound heading
ALL
 AKASI, GATES37.064°
RW06L
 CANDYB37.630°
 DATISB31.735°
 BECKYB48.555°
 BERTHB49.773°
 ALISAB55.794°
 DANDEB15.2325°
RW06R
 CANDYA37.630°
 DATISA31.735°
 BECKYA48.555°
 BERTHA49.773°
 ALISAA55.794°
 DANDEA15.2325°
RW24 (ALL)
 CANDYE, CANDYD, CANDYC37.630°
 DATISC31.735°
 BECKYE, BECKYD, BECKYC48.555°
 BERTHC, BERTHD, BERTHE49.773°
 ALISAE, ALISAD, ALISAC55.794°
 DANDEC15.2325°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LJOLLY (37°)JOLLY 6000ft
BERRY (8mi, 316°) 4000ft
 RNAVBERRY 4000ft
KADAR (5mi, 56°) 4000ft
B6L50 (12mi, 56°) 228ft
(7557mi, 256°) 520ft
B6L51 (7551mi, 76°)
LILAC (5mi, 275°) 3000ft
LILAC (turn) 3000ft
RW06RJOLLY (37°)JOLLY 6000ft
ALLAN (7mi, 316°) 4000ft
 RNAVALLAN 4000ft
TINOS (5mi, 56°) 4000ft
B6R50 (4mi, 56°) 2572ft
B6R51 (7mi, 56°) 336ft
B6R52 (6mi, 56°)
B6R53 (9mi, 335°)
MAIKO (12mi, 271°)
AKASI (12mi, 265°) 4000ft
AKASI (turn) 4000ft
RW24LMAYAH (162°)MAYAH 4000ft
BB450 (7mi, 91°) 2600ft
BB451 (2mi, 91°)
BB452 (2mi, 182°) 2000ft
BEIGE (2mi, 205°) 1600ft
AMBER (2mi, 205°) 1200ft
 RNAVAMBER 1200ft
CORAL (2mi, 236°) 1200ft
B4L50 (3mi, 236°) 245ft
B4L51 (6mi, 236°)
TOMOH (10mi, 239°)
GATES (13mi, 233°) 4000ft
GATES (turn) 4000ft
RW24RMAYAH (162°)MAYAH 4000ft
BB450 (7mi, 91°) 2600ft
BB451 (2mi, 91°)
BB452 (2mi, 182°) 2000ft
BEIGE (2mi, 205°) 1600ft
 RNAVBEIGE 1600ft
MAJOH (3mi, 236°) 1600ft
B4R70 (4mi, 236°) 396ft
(7558mi, 256°) 520ft
LILAC (7546mi, 76°) 3000ft
LILAC (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKASIAKASIVHFright272 (92)°> 4000ftDME 5.5mi230
AKASIMAYAHVHFright279 (99)°> 4000ftDME 4.7mi230
ALISAAALISAVHFright322 (142)°8000ft - 14000ft1.0min timed230
ALISAAASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
ALISABALISAVHFright322 (142)°8000ft - 14000ft1.0min timed230
ALISABASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
ALISACALISAVHFright322 (142)°8000ft - 14000ft1.0min timed230
ALISACLILACVHFright237 (57)°> 3000ftDME 5.7mi230
ALISADALISAVHFright322 (142)°8000ft - 14000ft1.0min timed230
ALISADASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
ALISAEAKASIVHFright272 (92)°> 4000ftDME 5.5mi230
ALISAEALISAVHFright322 (142)°8000ft - 14000ft1.0min timed230
ALVISISPUMVHFright102 (282)°8000ft - 14000ft1.0min timed230
BECKYAASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
BECKYABECKYVHFright237 (57)°7000ft - 14000ft1.0min timed230
BECKYBASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
BECKYBBECKYVHFright237 (57)°7000ft - 14000ft1.0min timed230
BECKYCBECKYVHFright237 (57)°7000ft - 14000ft1.0min timed230
BECKYCLILACVHFright237 (57)°> 3000ftDME 5.7mi230
BECKYDASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
BECKYDBECKYVHFright237 (57)°7000ft - 14000ft1.0min timed230
BECKYEAKASIVHFright272 (92)°> 4000ftDME 5.5mi230
BECKYEBECKYVHFright237 (57)°7000ft - 14000ft1.0min timed230
BERTHAASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
BERTHABERTHVHFright282 (102)°7000ft - 14000ft1.0min timed230
BERTHBASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
BERTHBBERTHVHFright282 (102)°7000ft - 14000ft1.0min timed230
BERTHCBERTHVHFright282 (102)°7000ft - 14000ft1.0min timed230
BERTHCLILACVHFright237 (57)°> 3000ftDME 5.7mi230
BERTHDASAMIVHFright239 (59)°4000ft - 14000ft1.0min timed230
BERTHDBERTHVHFright282 (102)°7000ft - 14000ft1.0min timed230
BERTHEAKASIVHFright272 (92)°> 4000ftDME 5.5mi230
BERTHEBERTHVHFright282 (102)°7000ft - 14000ft1.0min timed230
BURTNISPUMVHFright102 (282)°8000ft - 14000ft1.0min timed230
CANDYACANDYVHFleft140 (320)°7000ft - 14000ft1.0min timed230
CANDYADATISVHFleft127 (307)°6000ft - 14000ft1.0min timed230
CANDYBCANDYVHFleft140 (320)°7000ft - 14000ft1.0min timed230
CANDYBDATISVHFleft127 (307)°6000ft - 14000ft1.0min timed230
CANDYCCANDYVHFleft140 (320)°7000ft - 14000ft1.0min timed230
CANDYCLILACVHFright237 (57)°> 3000ftDME 5.7mi230
CANDYDCANDYVHFleft140 (320)°7000ft - 14000ft1.0min timed230
CANDYDDATISVHFleft127 (307)°6000ft - 14000ft1.0min timed230
CANDYEAKASIVHFright272 (92)°> 4000ftDME 5.5mi230
CANDYECANDYVHFleft140 (320)°7000ft - 14000ft1.0min timed230
DANDEADANDEVHFleft90 (270)°8000ft - 14000ft1.0min timed230
DANDEBDANDEVHFleft90 (270)°8000ft - 14000ft1.0min timed230
DANDECDANDEVHFleft90 (270)°8000ft - 14000ft1.0min timed230
DANDECLILACVHFright237 (57)°> 3000ftDME 5.7mi230
DATISADATISVHFleft127 (307)°6000ft - 14000ft1.0min timed230
DATISBDATISVHFleft127 (307)°6000ft - 14000ft1.0min timed230
DATISCDATISVHFleft127 (307)°6000ft - 14000ft1.0min timed230
DATISCLILACVHFright237 (57)°> 3000ftDME 5.7mi230
GATESGATESVHFright236 (56)°> 4000ftDME 5.1mi230
MAYAHISPUMVHFright102 (282)°8000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
