Airports for X-Plane

Tajima

Airport details

CountryJapan
StateHyōgo Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityToyooka
Elevation583ft (178m)
TimezoneGMT +9
Coordinates35.51278, 134.78694
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJBT
IATA codeTJH
FAA coden/a

Communication

Tajima FLIGHT SVC130.800

Approach frequencies

LOCRW01108.5518.00mi
Nearby Points of Interest:
Nagusa Shrine
-
Gōmura Fault

Runway info

Runway 01 / 19
 length1203m (3947ft)
 bearing4° / 184°
 width30m (98ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

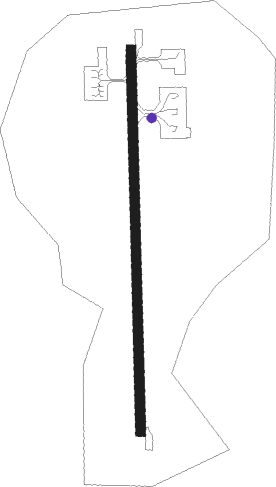

Airport layout - taxiway location A


Taxiway locations

 A
Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
YMEMIYAZU VOR/DME17.295°112.60
TRETOTTORI VOR/DME30.4271°110.20
ITEITAMI VOR/DME52.1139°114.75
KCEKOBE VOR/DME57.2153°111.25
OKTOKAYAMA TACAN63.1223°115.90
OYEKIBI VOR/DME65.4231°111
YOEYAO VOR/DME67.7139°114.60

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW01
 YME317mi95°
 ROKKO135mi128°
RW19
 YME317mi95°
 ROKKO135mi128°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01ASAGI (4°)ASAGI 7000ft
FOSTA (6mi, 5°) 7000ft
BT150 (4mi, 5°) 4700ft
BT151 (4mi, 5°) 3900ft
RW01OLSOP (221°)OLSOP
BT156 (11mi, 151°)
BT157 (5mi, 184°)
BT151 (5mi, 272°) 3900ft
 RNAVBT151 3900ft
YABOO (5mi, 4°) 3400ft
BT152 (4mi, 4°) 2034ft
BT153 (2mi, 4°) 1556ft
BT154 (2mi, 4°) 890ft
BT155 (4mi, 4°)
OLSOP (3mi, 179°) 5000ft
OLSOP (turn) 5000ft
RW19ASAGI (4°)ASAGI 7000ft
FOSTA (6mi, 5°) 7000ft
BT950 (30mi, 11°) 4600ft
BT951 (4mi, 4°)
BT952 (3mi, 272°)
AMARB (4mi, 184°) 2900ft
RW19OLSOP (221°)OLSOP 5000ft
BT950 (8mi, 30°) 4600ft
BT951 (4mi, 4°)
BT952 (3mi, 272°)
AMARB (4mi, 184°) 2900ft
 RNAVAMARB 2900ft
BT953 (2mi, 184°) 2310ft
BT954 (3mi, 184°) 1418ft
BT955 (2mi, 184°) 942ft
BT956 (5mi, 184°)
OLSOP (4mi, 7°) 5000ft
OLSOP (turn) 5000ft
