Airports for X-Plane

Obihiro

Airport details

CountryJapan
StateHokkaidō Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityObihiro
Elevation490ft (149m)
TimezoneGMT +9
Coordinates42.73333, 143.21722
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJCB
IATA codeOBO
FAA coden/a

Communication

Obihiro Tower123.600
Obihiro Tower126.200
Obihiro Tower118.700
Obihiro Sapporo Control134.250
Obihiro Sapporo Control128.325

Approach frequencies

ILS-cat-IRW35111.718.00mi
3° GSRW35111.718.00mi

Runway info

Runway 17 / 35
 length2502m (8209ft)
 bearing153° / 333°
 width45m (146ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

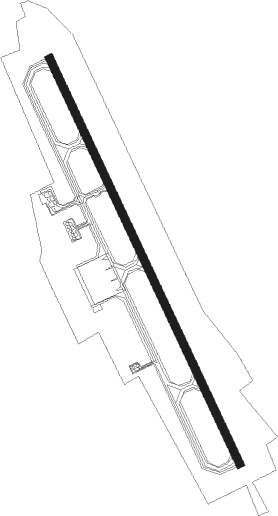

Airport layout


Parking locations

 GA  Gate  Helo

Nearby beacons

codeidentifierdistbearingfrequency
OBEOBIHIRO VOR/DME0.179°109.65
TKTTOKACHI TACAN9.8342°111.80
OHTOKACHI NDB10.3341°239
KSEKUSHIRO VOR/DME4773°112.50
AWEASAHIKAWA VOR/DME65.2321°113.50

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW17
 EATAK124mi39°
 KSE447mi73°
 OTTER1, RACKO235mi154°
 NOTAK423mi330°
RW35
 EATAK124mi39°
 KSE447mi73°
 OTTER1, RACKO235mi154°
 NOTAK423mi330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17TAIKI (333°)TAIKI 5000ft
CB750 (16mi, 319°) 4000ft
 RNAVCB750 4000ft
HAPPY (3mi, 319°) 3800ft
CB751 (1mi, 319°) 3345ft
CB752 (4mi, 70°) 1020ft
RJCB (2mi, 153°) 520ft
TAIKI (18mi, 153°) 5000ft
TAIKI (turn) 5000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
