Airports for X-Plane

Miyazaki

Airport details

CountryJapan
StateMiyazaki Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityMiyazaki
Elevation20ft (6m)
TimezoneGMT +9
Coordinates31.87722, 131.44861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJFM
IATA codeKMI
FAA coden/a

Communication

Miyazaki ATIS126.800
Miyazaki Ground Control121.900
Miyazaki Tower118.300
Miyazaki Approach121.400
Miyazaki Approach120.900
Miyazaki Departure120.900
Miyazaki Departure121.400

Approach frequencies

ILS-cat-IRW27108.918.00mi
3° GSRW27108.918.00mi

Runway info

Runway 09 / 27
 length2495m (8186ft)
 bearing86° / 266°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 61m (200ft)

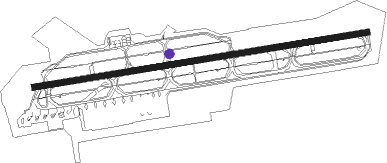

Airport layout - taxiway location N3


Taxiway locations

 N1  N2  N3  N4  S2  S3  S4  S5
 S6  S7  SP1  SP2  SP3
Parking locations

 GA  Gate  North  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
MZEMIYAZAKI VOR/DME0.5278°112.40
NHTNYUTABARU TACAN12.11°115
ZZTNYUTABARU TACAN12.22°135.90
KGEKAJIKI (KAGOSHIMA) VOR/DME37.1264°115.70
JAKANOYA NDB43.8229°238
JATKANOYA TACAN44.2230°113.80
HKCKAGOSHIMA VORTAC45.4258°113.30
KUEKUMAMOTO VOR/DME65.2328°112.80

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW09
 SIIBA146mi9°
 KIZAK251mi75°
 JACKY129mi128°
 SASIK3, KIRIS154mi294°
RW27
 SIIBA146mi9°
 KIZAK251mi75°
 JACKY129mi128°
 KIRIS1, SASIK354mi294°

STAR starting pointsdistanceinbound heading
ALL
 KARAH, MELAR35.3147°
 OTOHIM, RYUGU31.5254°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-XMELAR (146°)MELAR 5200ft
IKIME (7mi, 154°) 3100ft
 RNAVIKIME 3100ft
FM955 (3mi, 181°) 2500ft
FM956 (2mi, 181°) 1840ft
FM952 (3mi, 128°) 684ft
RJFM (3mi, 86°) 65ft
OYODO (12mi, 86°) 4000ft
OYODO (turn)
RW09-YOYODO (266°)OYODO 4000ft
SURFU (10mi, 252°) 3500ft
 RNAVSURFU 3500ft
FM953 (3mi, 252°) 3500ft
FM954 (1mi, 252°) 3064ft
FM952 (4mi, 345°) 684ft
RJFM (3mi, 86°) 65ft
OYODO (12mi, 86°) 4000ft
OYODO (turn)
RW09-ZOYODO (266°)OYODO 4000ft
HIMKA (11mi, 287°) 3500ft
 RNAVHIMKA 3500ft
FM950 (3mi, 266°) 3500ft
FM951 (2mi, 266°) 2865ft
FM952 (4mi, 174°) 684ft
RJFM (3mi, 86°) 65ft
OYODO (12mi, 86°) 4000ft
OYODO (turn)
RW27KARAH (242°)KARAH 1800ft
MENYA (3mi, 217°)
 RNAVMENYA
FM750 (2mi, 217°)
FM751 (1mi, 231°) 1800ft
FM752 (turn) 1453ft
RJFM (5mi, 266°) 75ft
RJFM (turn) 500ft
OYODO (12mi, 86°) 2000ft
OYODO (turn) 2000ft
