Airports for X-Plane

Nagoya

Airport details

CountryJapan
StateAichi Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityToyoyama
Elevation42ft (13m)
TimezoneGMT +9
Coordinates35.24989, 136.92390
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJNA
IATA codeNKM
FAA coden/a

Communication

Nagoya Clearance DEL121.750
Nagoya Ground Control121.700
Nagoya Tower123.100
Nagoya Tower118.700
Nagoya Tower122.700
Nagoya Approach121.175
Nagoya Approach125.550
Nagoya Approach119.175
Nagoya Approach119.250
Nagoya Approach121.050
Nagoya Departure121.225

Approach frequencies

ILS-cat-IRW34108.918.00mi
3° GSRW34108.918.00mi
Nearby Points of Interest:
Former Nagoya Court of Appeals Building
-
Nagoya City Hall
-
Kureha-za Theater
-
Jo-an
-
Nagatsuka Kofun
-
Water Museum
-
Water Experience learning Museum
-
Ruins of Miroku-ji
-
Okazaki City Kyodokan
-
Hikone screen

Runway info

Runway 16 / 34
 length2742m (8996ft)
 bearing148° / 328°
 width45m (148ft)
 surfaceasphalt
 blast zone77m (253ft) / 91m (299ft)

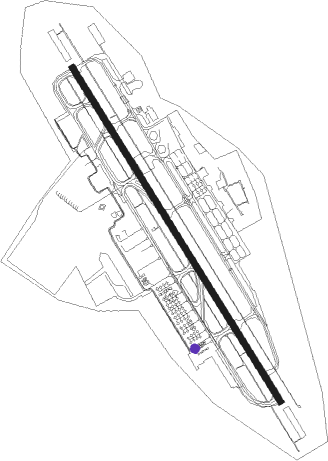

Airport layout - parking location 2F


Taxiway locations

 W1  W2  W3  W4  W5  W6  W7  W8
 W9
Parking locations

 101  102  103  12A  12B  12C  12D  12E
 12F  13  14A  14B  14C  14D  14E  15A
 15B  15C  16  17  18  1A  1B  1C
 1D  1E  1F  1G  1H  1I  1J  1K
 2A  2B  2C  2D  2E  2F  2G  7A
 7B  7C  7D  7E  7F  7G  7H  8A
 8B  8C  8D  8E  8F  8G  8H  8I
 9A  9B  9C  9D  9E  9F  9G  9H
 JSDF

Nearby beacons

codeidentifierdistbearingfrequency
KCCNAGOYA VORTAC1330°114.20
GFTGIFU TACAN9.1335°109.40
CBECHUBU VOR/DME24.2197°117.80
CTECHITA VOR/DME25.1195°115.35
XMTKOWA TACAN32.7176°113.50
AKAKENO NDB44.7197°380
AKTAKENO TACAN45199°112.05
WWTHAMAMATSU TACAN48.8123°135.90
LHTHAMAMATSU TACAN49123°114.70
MBEMATSUMOTO VOR/DME72.948°117.60

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW16
 HOUBA487mi31°
 MORIZ549mi123°
 TALMI499mi264°
 IBUKI441mi336°
RW34
 HOUBA487mi31°
 MORIZ549mi123°
 TALMI499mi264°
 IBUKI441mi336°

STAR starting pointsdistanceinbound heading
ALL
 EXPOHS, ORIBES59.120°
 SHINO45.778°
 ORIBEE30.2237°
 EXPOHN18.6248°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16DIMAC (148°)DIMAC 5600ft
MONET (3mi, 147°) 2900ft
RW16ORIBE (177°)ORIBE 6000ft
MONET (8mi, 240°) 2900ft
RW16SHINO (127°)SHINO 5100ft
MONET (6mi, 67°) 2900ft
 RNAVMONET 2900ft
AQTOH (9mi, 147°) 2000ft
RJNA (7mi, 149°) 102ft
(7605mi, 256°) 550ft
NA651 (7602mi, 76°)
KCC (6mi, 49°) 3000ft
KCC (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ORIBESRYUDOVHFright165 (345)°> 6000ftDME 6.3mi230
*) magnetic outbound (inbound) holding course
