Airports for X-Plane

Nankoku - Kochi

Airport details

CountryJapan
StateKōchi Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityNankoku
Elevation41ft (12m)
TimezoneGMT +9
Coordinates33.54433, 133.67480
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJOK
IATA codeKCZ
FAA coden/a

Communication

No airport communication available for RJOK

Approach frequencies

ILS-cat-IRW32110.918.00mi
3° GSRW32110.918.00mi

Runway info

Runway 14 / 32
 length2500m (8202ft)
 bearing126° / 306°
 width45m (148ft)
 surfaceasphalt
 blast zone56m (184ft) / 61m (200ft)

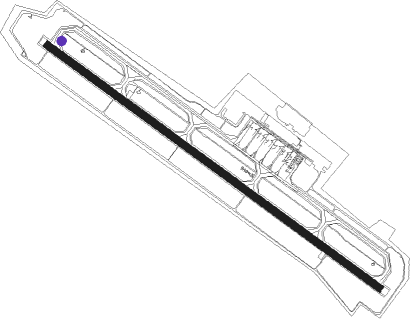

Airport layout - taxiway location T6


Taxiway locations

 T1  T2  T3  T4  T5  T6
Parking locations

 Gate  Spot

Nearby beacons

codeidentifierdistbearingfrequency
KREKOCHI VOR/DME0.3115°113.70
KTEKAGAWA (TAKAMATSU) VOR/DME43.727°108.40
TZTTAKAMATSU TACAN48.920°117.50
MYEMATSUYAMA VOR/DME52286°110.65
KJTKOMATSUSHIMA TACAN54.964°113.55
TSTOKUSHIMA NDB58.258°332
SUCSHIMIZU VORTAC58.3221°115.20
TSCTOKUSHIMA VORTAC58.358°114.90
AZEASHIZURI VOR/DME59.1219°110
HGEHONGO (HIROSHIMA) VOR/DME65.2320°117.90
STDDME65.332°114.40

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW14
 KARIN127mi76°
 KAIFU144mi86°
 MUROT1106mi93°
 SUC658mi221°
 OMOGO225mi286°
RW32
 KARIN127mi76°
 KAIFU144mi86°
 MUROT1106mi93°
 SUC658mi221°
 OMOGO225mi286°

STAR starting pointsdistanceinbound heading
ALL
 YOSAKS33.041°
 YOSAKW19.781°
 YOSAKN17.9208°
 YOSAKE29.7311°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14-YANPAN (306°)ANPAN 4000ft
KATUO (10mi, 283°) 4000ft
 RNAVKATUO 4000ft
TATKY (4mi, 306°) 3500ft
OK481 (2mi, 306°) 2922ft
OK477 (4mi, 46°) 856ft
RJOK (3mi, 124°) 92ft
ANPAN (11mi, 126°) 4000ft
ANPAN (turn)
RW14-ZANPAN (306°)ANPAN 4000ft
NOITI (10mi, 332°) 4000ft
 RNAVNOITI 4000ft
IGENO (4mi, 306°) 3500ft
OK451 (2mi, 306°) 2922ft
OK477 (4mi, 226°) 856ft
RJOK (3mi, 124°) 92ft
ANPAN (11mi, 126°) 4000ft
ANPAN (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
