Airports for X-Plane

Osaka - Osaka Intl

Airport details

CountryJapan
StateOsaka Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityToyonaka
Elevation46ft (14m)
TimezoneGMT +9
Coordinates34.78389, 135.44507
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJOO
IATA codeITM
FAA coden/a

Communication

Osaka Intl ATIS128.600
Osaka Intl Clearance DEL118.800
Osaka Intl Ground Control121.700
Osaka Intl Tower118.100
Osaka Intl KANSAI Approach120.450
Osaka Intl GCA127.500
Osaka Intl GCA125.100
Osaka Intl TCA121.100
Osaka Intl GCA134.100
Osaka Intl KANSAI Departure119.500
Osaka Intl KANSAI Departure125.300

Approach frequencies

ILS-cat-IRW32L110.118.00mi
3° GSRW32L110.118.00mi
Nearby Points of Interest:
Osaka Prefectural Nakanoshima Library
-
Tekijuku
-
Kitahama Retro Building
-
Shibakawa Building
-
Osaka Gas Building
-
Former Konishi Family Residence
-
Mengyo Kaikan
-
Genjō Sanzō-e
-
Yodokō Guest House
-
Nankai Building
-
Imashirozuka-kofun
-
Shitennō-ji Honbō Garden
-
Harima Shop
-
Noma-no-Okeyaki
-
Otaue Shinto Service
-
Sumiyoshi Angū
-
Tai-an
-
Mozu kofungun
-
Dogameyama Kofun
-
Minato Ijinkan
-
Shinkō Trade Hall
-
Kitano-chō and Yamamoto-dōri
-
Kitano Monogatarikan
-
Former Foreign Settlement Building No. 15

Runway info

Runway 14R / 32L
 length3005m (9859ft)
 bearing130° / 310°
 width60m (197ft)
 surfaceasphalt
Runway 14L / 32R
 length1833m (6014ft)
 bearing130° / 310°
 width45m (148ft)
 surfaceasphalt

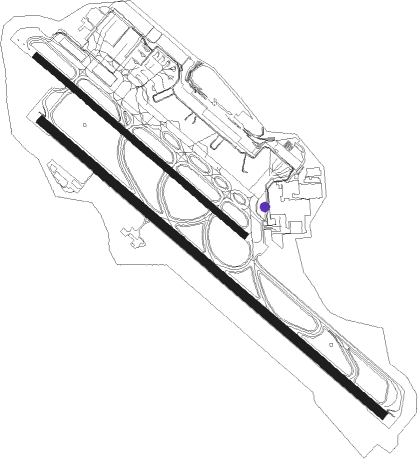

Airport layout - parking location 1


Taxiway locations

 B4  C1  C2  C3  C4  C5  C6  C7
 W1  W10  W2  W3  W4  W5  W6  W7
 W8  W9
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  1A  1B  2  20  21
 22  23  24  25  26  27  3  3A
 3B  4  41  42  43  44  45  46
 47  48  4A  5  51  52  53  6
 7  70  71  72  73  74  75  76
 77  8  80  81  82  83  84  9

Nearby beacons

codeidentifierdistbearingfrequency
ITEITAMI VOR/DME2.4298°114.75
YOEYAO VOR/DME13.3141°114.60
KCEKOBE VOR/DME14235°111.25
KIEKANSAI VOR/DME24.5214°111.60
YMEMIYAZU VOR/DME44.4336°112.60
AJDDME47.5235°115.60
GBDDME55201°116.90
TSCTOKUSHIMA VORTAC57232°114.90
TSTOKUSHIMA NDB57.2232°332
KJTKOMATSUSHIMA TACAN61.9226°113.55

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW14 (ALL)
 PANAS1108mi31°
 MINAC478mi72°
 ASUKA474mi88°
 IZUMI121mi183°
 TIGER2104mi261°
RW32 (ALL)
 PANAS1108mi31°
 MINAC478mi72°
 ASUKA474mi88°
 IZUMI121mi183°
 TIGER2104mi261°

STAR starting pointsdistanceinbound heading
ALL
 IZUMI20.63°
 AGPUK36.1295°
RW32 (ALL)
 HABIK20.63°
 IKOMAN21.2156°
 IKOMAE36.1295°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW32LCEREZ (338°)CEREZ 3500ft
KOSAK (5mi, 50°) 3000ft
RW32LGAMBA (287°)GAMBA 3500ft
KOSAK (5mi, 231°) 3000ft
RW32LIKOMA (311°)IKOMA 3500ft
KOSAK (4mi, 310°) 3000ft
 RNAVKOSAK 3000ft
UMEDA (5mi, 310°) 1677ft
30TH2 (2mi, 310°) 1041ft
RJOO (4mi, 313°) 85ft
O2L50 (3mi, 305°)
O2L51 (4mi, 230°)
O2L52 (13mi, 159°)
IZUMI (8mi, 177°) 5000ft
IZUMI (turn) 5000ft
RW32RCEREZ (338°)CEREZ 3500ft
KIKYO (5mi, 50°) 3000ft
RW32RGAMBA (287°)GAMBA 3500ft
KIKYO (5mi, 231°) 3000ft
RW32RIKOMA (311°)IKOMA 3500ft
KIKYO (4mi, 312°) 3000ft
 RNAVKIKYO 3000ft
TENMA (6mi, 310°) 1677ft
30THR (2mi, 310°) 1040ft
RJOO (3mi, 311°) 85ft
O2R50 (3mi, 308°)
O2R51 (4mi, 230°)
O2R52 (13mi, 159°)
IZUMI (8mi, 177°) 5000ft
IZUMI (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGPUKIKOMAVHFright141 (321)°> 4400ftDME 4.7mi210
HABIKIKOMAVHFright141 (321)°> 4400ftDME 4.7mi210
HABIKIZUMIVHFright229 (49)°> 4200ftDME 6.4mi230
IKOMAEABENOVHFright138 (318)°4400ft - 60000ftDME 4.6mi210
IKOMAEIKOMAVHFright141 (321)°> 4400ftDME 4.7mi210
IKOMAEMIRAIVHFleft87 (267)°> 6000ftDME 6.1mi230
IKOMANABENOVHFright138 (318)°4400ft - 60000ftDME 4.6mi210
IKOMANIKOMAVHFright141 (321)°> 4400ftDME 4.7mi210
IKOMANKAMEOVHFleft351 (171)°> 7000ftDME 6.0mi230
IZUMIIKOMAVHFright141 (321)°> 4400ftDME 4.7mi210
IZUMIIZUMIVHFright229 (49)°> 4200ftDME 6.4mi230
*) magnetic outbound (inbound) holding course
