Airports for X-Plane

Tottori

Airport details

CountryJapan
StateTottori Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityTottori
Elevation62ft (19m)
TimezoneGMT +9
Coordinates35.53000, 134.16499
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJOR
IATA codeTTJ
FAA coden/a

Communication

Tottori RJOR_Tower118.150

Approach frequencies

ILS-cat-IRW10111.518.00mi
3° GSRW10111.518.00mi
Nearby Points of Interest:
Nagusa Shrine
-
Teiko Shiotani Memorial Photo Gallery

Runway info

Runway 10 / 28
 length1996m (6549ft)
 bearing93° / 273°
 width46m (150ft)
 surfaceasphalt
 blast zone58m (190ft) / 58m (190ft)

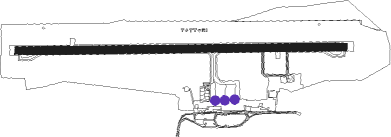

Airport layout - parking location Spot


Parking locations

 Emergency  GA  Spot

Nearby beacons

codeidentifierdistbearingfrequency
TRETOTTORI VOR/DME0.1182°110.20
YGEYONAGO VOR/DME44.4268°117.30
YMEMIYAZU VOR/DME47.693°112.60
OYEKIBI VOR/DME49.5203°111
OKTOKAYAMA TACAN52190°115.90
OIEOKI VOR/DME56.4308°109.25

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW10
 AYABE3, YME148mi93°
RW28
 AYABE3, YME148mi93°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW28KANNA (273°)KANNA 7000ft
ISASA (13mi, 319°) 6000ft
 RNAVISASA 6000ft
OR850 (6mi, 278°)
OR851 (7mi, 250°)
OR852 (5mi, 191°) 2100ft
OR853 (1mi, 191°) 1661ft
OR854 (3mi, 237°) 603ft
RJOR (2mi, 273°) 115ft
RJOR (turn) 700ft
ISASA (20mi, 67°) 6000ft
ISASA (turn)
