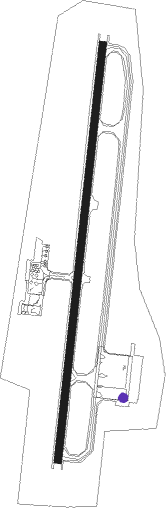

Hanamaki
Airport details
| Country | Japan |
| State | Iwate Prefecture |
| Region | RJ |
| Airspace | Fukuoka Ctr |
| Municipality | Hanamaki |
| Elevation | 294ft (90m) |
| Timezone | GMT +9 |
| Coordinates | 39.42861, 141.13528 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | RJSI |
| IATA code | HNA |
| FAA code | n/a |
Communication
| Hanamaki A/G | 118.200 |
| Hanamaki A/G | 126.200 |
Approach frequencies
| ILS-cat-I | RW20 | 109.3 | 18.00mi |
| 3° GS | RW20 | 109.3 | 18.00mi |
Nearby Points of Interest:
Morioka Takuboku and Kenji Museum
-Hashino iron mining and smelting site
-Hiraizumi – Temples, Gardens and Archaeological Sites Representing the Buddhist Pure Land
-Kakunodate
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| HPE | HANAMAKI VOR/DME | 0.2 | 339° | 112.80 |
| UWE | YUWA (AKITA) VOR/DME | 45.3 | 281° | 110.65 |
| MQE | MIYAKO VOR/DME | 45.9 | 62° | 116.60 |
| ODE | ODATE VOR/DME | 58.3 | 315° | 114.75 |
Departure and arrival routes
| Transition altitude | 14000ft |
| Transition level | 14000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW02 | |||
| OHSHU1 | 61mi | 1° | |
| HANKA1 | 36mi | 234° | |
| GTC4 | 129mi | 234° | |
| SAMBO1 | 46mi | 346° | |
| RW20 | |||
| OHSHU1 | 61mi | 1° | |
| GTC4 | 129mi | 234° | |
| HANKA1 | 36mi | 234° | |
| SAMBO1 | 46mi | 346° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW02 | |||
| SIOMO | 27.6 | 162° | |
| REMEN | 19.1 | 241° | |
| RW20 | |||
| REMENW, WANKO | 20.6 | 38° | |
| SUIHO | 27.6 | 162° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW02-Y | ESBEL (162°) | ESBEL 9000ft NOJYO (5mi, 155°) 8200ft ISIDO (19mi, 155°) 4000ft |
| RNAV | ISIDO 4000ft KENDA (5mi, 155°) 3800ft SI252 (2mi, 155°) 3312ft SI253 (4mi, 267°) 848ft RJSI (2mi, 14°) 333ft SI251 (6mi, 14°) HPE (6mi, 195°) 4500ft HPE (turn) 4500ft | |
| RW02-Z | REMEN (342°) | REMEN NITBE (5mi, 278°) 2000ft |
| RW02-Z | SIOMO (38°) | SIOMO RYUTA (7mi, 98°) 3900ft NITBE (9mi, 14°) 2000ft |
| RNAV | NITBE 2000ft INAZO (5mi, 14°) 1900ft SI250 (3mi, 14°) 810ft RJSI (2mi, 14°) 333ft SI251 (6mi, 14°) HPE (6mi, 195°) 4500ft HPE (turn) 4500ft | |
| RW20-Y | REMEN (342°) | REMEN 6000ft PALPA (6mi, 9°) NAKAN (5mi, 9°) 3700ft |
| RNAV | NAKAN 3700ft SI053 (2mi, 9°) 2913ft SI051 (4mi, 277°) 853ft RJSI (2mi, 194°) 352ft SI052 (8mi, 194°) HPE (8mi, 12°) 4000ft HPE (turn) 4000ft | |
| RW20-Z | SIOMO (38°) | SIOMO 8000ft MOUSU (17mi, 46°) 4800ft |
| RNAV | MOUSU 4800ft GANSU (5mi, 46°) 3700ft SI050 (1mi, 46°) 3285ft SI051 (4mi, 290°) 853ft RJSI (2mi, 194°) 352ft SI052 (8mi, 194°) HPE (8mi, 12°) 4000ft HPE (turn) 4000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| REMEN | MORIO | VHF | right | 63 (243)° | > 9000ft | DME 6.0mi | 230 |
| REMENW | SIOMO | VHF | right | 218 (38)° | > 8000ft | DME 5.2mi | 210 |
| SIOMO | ESBEL | VHF | right | 354 (174)° | 9000ft - 14000ft | 1.0min timed | 230 |
| SUIHO | ESBEL | VHF | right | 354 (174)° | 9000ft - 14000ft | 1.0min timed | 230 |
| WANKO | SIOMO | VHF | right | 218 (38)° | > 8000ft | DME 5.2mi | 210 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
