Airports for X-Plane

Misawa - Misawa Ab

Airport details

CountryJapan
StateAomori Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityMisawa
Elevation119ft (36m)
TimezoneGMT +9
Coordinates40.70528, 141.36945
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJSM
IATA codeMSJ
FAA coden/a

Communication

Misawa AB ATIS128.400
Misawa AB Clearance DEL118.650
Misawa AB Ground Control126.200
Misawa AB Tower118.100
Misawa AB Tower125.300
Misawa AB TCA124.050
Misawa AB Approach125.300
Misawa AB Approach120.700
Misawa AB Departure125.300

Approach frequencies

ILS-cat-IRW10109.718.00mi
ILS-cat-IRW28109.718.00mi
3° GSRW10109.718.00mi
2.5° GSRW28109.718.00mi

Runway info

Runway 10 / 28
 length3042m (9980ft)
 bearing94° / 274°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

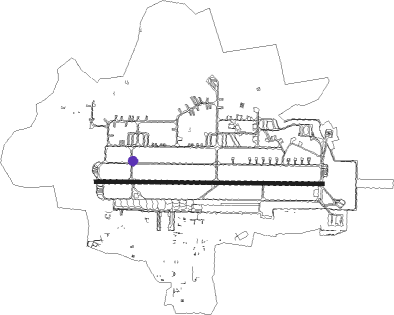

Airport layout - taxiway location C2


Taxiway locations

 A  A1  A2  A3  A4  A5  A7  A8
 B  B1  B2  B3  B5  C  C1  C2
 C3  D  D1  D3  E  F  G  J
Parking locations

 Hot  MSJ  N1  N2  N3  N6  T1  T2
 T3  T4  T5  T6  T7  T8  T9

Nearby beacons

codeidentifierdistbearingfrequency
MISMISAWA VORTAC0.597°115.40
HVTHACHINOHE TACAN10146°108.60
JCHACHINOHE NDB10.5145°381
MREAOMORI VOR/DME30.2273°114.10
OMTOMINATO TACAN33.2336°114.85
MQEMIYAKO VOR/DME57145°116.60

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW10
 ENKAI211mi95°
 REIWA133mi155°
RW28
 REIWA133mi155°
