Airports for X-Plane

Odate - Odate Noshiro

Airport details

CountryJapan
StateAkita Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityKitaakita
Elevation291ft (89m)
TimezoneGMT +9
Coordinates40.19194, 140.37167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJSR
IATA codeONJ
FAA coden/a

Communication

Odate Noshiro Odate Remote118.750
Odate Noshiro Sapporo Control120.575
Odate Noshiro Sapporo Control127.575

Approach frequencies

ILS-cat-IRW11110.1518.00mi
3° GSRW11110.1518.00mi

Runway info

Runway 11 / 29
 length1995m (6545ft)
 bearing98° / 278°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

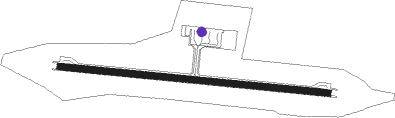

Airport layout - parking location 2


Parking locations

 1  2  3  5

Nearby beacons

codeidentifierdistbearingfrequency
ODEODATE VOR/DME0.5303°114.75
UWEYUWA (AKITA) VOR/DME35.5198°110.65
MREAOMORI VOR/DME36.231°114.10
HPEHANAMAKI VOR/DME57.5135°112.80

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW11
 LAGON336mi198°
RW29
 LAGON336mi198°

STAR starting pointsdistanceinbound heading
RW29
 NOSSY12.720°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW29-YNOSSY (98°)NOSSY 4000ft
SR950 (15mi, 81°) 3500ft
 RNAVSR950 3500ft
SR951 (4mi, 118°) 3500ft
SR952 (5mi, 234°) 1694ft
RJSR (5mi, 278°) 342ft
NOSSY (10mi, 278°) 4000ft
NOSSY (turn)
RW29-ZMAGGY (10°)MAGGY 6000ft
SR960 (9mi, 33°) 3900ft
 RNAVSR960 3900ft
SR961 (2mi, 33°) 3500ft
SR962 (4mi, 33°) 2296ft
SR963 (3mi, 327°) 1031ft
RJSR (3mi, 278°) 342ft
NOSSY (10mi, 278°) 4000ft
NOSSY (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
NOSSYBONJIVHFleft202 (22)°> 6000ftDME 6.0mi230
*) magnetic outbound (inbound) holding course
