Airports for X-Plane

Sendai

Airport details

CountryJapan
StateMiyagi Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityNatori
Elevation15ft (5m)
TimezoneGMT +9
Coordinates38.13972, 140.91695
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJSS
IATA codeSDJ
FAA coden/a

Communication

SENDAI ATIS126.450
SENDAI Ground Control121.700
SENDAI Tower118.700
SENDAI Tower126.200
SENDAI Approach120.400
SENDAI TCA121.025
SENDAI Departure120.000

Approach frequencies

ILS-cat-IRW27111.718.00mi
3° GSRW27111.718.00mi

Runway info

Runway 09 / 27
 length2995m (9826ft)
 bearing84° / 264°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 67m (220ft)
Runway 12 / 30
 length1200m (3937ft)
 bearing113° / 293°
 width45m (148ft)
 surfaceasphalt
 blast zone59m (194ft) / 89m (292ft)

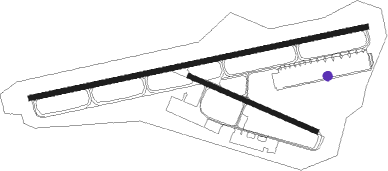

Airport layout - parking location 6


Taxiway locations

 B1  B2  B3  B4  B5  B6  C
Parking locations

 1  2  3  4  5  6  7

Nearby beacons

codeidentifierdistbearingfrequency
SDESENDAI VOR/DME0.2104°116.30
MXTMATSUSHIMA TACAN21.549°114.30
YTEYAMAGATA VOR/DME30.3294°113
FKEFUKUSHIMA VOR/DME59.5208°113.45
IXEIWAKI VOR/DME59.5177°117.70

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW09
 CUBIC4123mi1°
 IXE860mi177°
 STEED441mi218°
 DERBY430mi294°
RW12
 IXE860mi177°
RW27
 CUBIC4123mi1°
 IXE860mi177°
 STEED441mi218°
 DERBY430mi294°
RW30
 IXE860mi177°

STAR starting pointsdistanceinbound heading
ALL
 PERID12.2301°
RW09
 OWLETW30.751°
 LANCEW25.162°
RW27
 OWLEEB, OWLEEA30.751°
 LANCEB, LANCEA25.162°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-YSHIPS (62°)SHIPS 4000ft
TILES (6mi, 16°) 2500ft
 RNAVTILES 2500ft
SUGOH (5mi, 76°) 1700ft
RJSS (6mi, 84°) 62ft
SS901 (4mi, 83°)
AOBAR (10mi, 135°) 3000ft
AOBAR (turn) 3000ft
RW09-ZSHIPS (62°)SHIPS 4000ft
TILES (6mi, 16°) 2500ft
 RNAVTILES 2500ft
SUGOH (5mi, 76°) 1700ft
SDF1 (1mi, 84°) 1315ft
SDF2 (turn) 962ft
RJSS (4mi, 85°) 62ft
SS901 (4mi, 83°)
AOBAR (10mi, 135°) 3000ft
AOBAR (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LANCEALANCEVHFright287 (107)°11000ft - 14000ft1.0min timed230
LANCEBLANCEVHFright287 (107)°11000ft - 14000ft1.0min timed230
LANCEWLANCEVHFright287 (107)°11000ft - 14000ft1.0min timed230
OWLEEAOWLETVHFright260 (80)°13000ft - 14000ft1.0min timed230
OWLEEBOWLETVHFright260 (80)°13000ft - 14000ft1.0min timed230
OWLETWOWLETVHFright260 (80)°13000ft - 14000ft1.0min timed230
PERIDAOBARVHFleft135 (315)°3000ft - 60000ftDME 7.0mi230
PERIDPERIDVHFleft89 (269)°1500ft - 60000ftDME 6.0mi230
*) magnetic outbound (inbound) holding course
