Tokyo - Tokyo Haneda Intl
Airport details
| Country | Japan |
| State | Tōkyō Prefecture |
| Region | RJ |
| Airspace | Fukuoka Ctr |
| Municipality | Tokyo |
| Elevation | 35ft (11m) |
| Timezone | GMT +9 |
| Coordinates | 35.55333, 139.78111 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | RJTT |
| IATA code | HND |
| FAA code | n/a |
Communication
| Tokyo Haneda Intl ATIS | 128.800 |
| Tokyo Haneda Intl Clearance DEL | 121.875 |
| Tokyo Haneda Intl Clearance DEL | 121.825 |
| Tokyo Haneda Intl Ground Control | 118.225 |
| Tokyo Haneda Intl Ground Control | 121.700 |
| Tokyo Haneda Intl Tower | 118.100 |
| Tokyo Haneda Intl Tower | 118.800 |
| Tokyo Haneda Intl Tower | 124.350 |
| Tokyo Haneda Intl NORTH PACIFIC AREA | 126.900 |
| Tokyo Haneda Intl Tower | 126.200 |
| Tokyo Haneda Intl Approach | 119.100 |
| Tokyo Haneda Intl TCA | 124.750 |
| Tokyo Haneda Intl Approach | 119.700 |
| Tokyo Haneda Intl Approach | 125.200 |
| Tokyo Haneda Intl Approach | 125.300 |
| Tokyo Haneda Intl Departure | 120.800 |
| Tokyo Haneda Intl Departure | 126.000 |
| Tokyo Haneda Intl Departure | 127.600 |
Approach frequencies
| LDA | RW22 | 110.1 | 18.00mi |
| LDA | RW23 | 108.5 | 18.00mi |
| ILS-cat-III | RW34R | 108.9 | 18.00mi |
| ILS-cat-I | RW22 | 108.1 | 18.00mi |
| ILS-cat-I | RW23 | 110.5 | 18.00mi |
| ILS-cat-I | RW16R | 111.55 | 18.00mi |
| ILS-cat-I | RW16L | 111.95 | 18.00mi |
| ILS-cat-I | RW34L | 111.7 | 18.00mi |
| 3° GS | RW22 | 108.1 | 18.00mi |
| 3° GS | RW23 | 110.5 | 18.00mi |
| 3° GS | RW34L | 111.7 | 18.00mi |
| 3° GS | RW34R | 108.9 | 18.00mi |
| 3° GS | RW16L | 111.95 | 18.00mi |
| 3° GS | RW16R | 111.55 | 18.00mi |
Nearby Points of Interest:
Unyo Maru
-En'yū-ji
-Ginkgo tree of Zenpuku-ji
-Meiji Maru
-Municipal Research Building
-Tokyo Metropolitan Hibiya Public Hall
-Eitai Bridge
-DN Tower 21
-Ohkurayama memorial hall
-Shigaraki Palace
-Mitsui Main Building
-Setagaya Daikanyashiki
-The Kudan
-Tokyo Memorial Hall
-Seikadō Bunko Art Museum
-Ogasawara-Hakushaku-Tei
-Kanagawa Prefectural offices
-Kototoi Bridge
-Kuromon
-International Library of Children's Literature
-Pine Trees
-Mikazuki Munechika
-Suda Hachiman Shrine Mirror
-Writing Box with Eight Bridges
-Shirahige Bridge
Runway info
Runway 16R / 34L  | ||
| length | 3004m (9856ft) | |
| bearing | 145° / 325° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| displ threshold | 480m (1575ft) / 0m (0ft) | |
| blast zone | 0m (0ft) / 60m (197ft) | |
| Runway 16L / 34R | ||
| length | 3366m (11043ft) | |
| bearing | 145° / 325° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| displ threshold | 387m (1270ft) / 360m (1181ft) | |
| blast zone | 60m (197ft) / 60m (197ft) | |
| Runway 05 / 23 | ||
| length | 2503m (8212ft) | |
| bearing | 48° / 228° | |
| width | 60m (197ft) | |
| surface | asphalt | |
| blast zone | 60m (197ft) / 60m (197ft) | |
| Runway 04 / 22 | ||
| length | 2503m (8212ft) | |
| bearing | 41° / 221° | |
| width | 61m (200ft) | |
| surface | asphalt | |
| blast zone | 60m (197ft) / 60m (197ft) | |

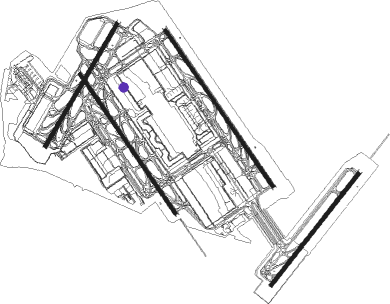

Airport layout - parking location 38
Taxiway locations
|
Parking locations
|
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| HME | HANEDA (TOKYO) VOR/DME | 1.1 | 294° | 112.20 |
| KZT | KISARAZU TACAN | 11.1 | 142° | 110.05 |
| NJA | ATSUGI TACAN | 17.2 | 252° | 115.10 |
| SHT | SHIMOFUSA (MATSUDO) TACAN | 18.6 | 43° | 108.20 |
| HYD | DME | 20.2 | 213° | 116.20 |
| TN | SHIN-TACHIKAWA NDB | 21 | 293° | 366 |
| TNT | TACHIKAWA TACAN | 21 | 293° | 115.80 |
| YOK | YOKOTA (TOKYO) TACAN | 24 | 294° | 113.80 |
| YLT | IRUMA TACAN | 24.7 | 308° | 110.60 |
| SND | (TOKYO) DME | 24.9 | 28° | 114 |
| SYE | SEKIYADO VOR/DME | 27.6 | 7° | 117 |
| NRE | NARITA (TOKYO) VOR/DME | 31.5 | 69° | 117.90 |
| TLD | DME | 34.8 | 42° | 116 |
| TET | TATEYAMA TACAN | 35 | 174° | 108.80 |
| OJT | ONJUKU TACAN | 36.4 | 122° | 115.70 |
| PQD | DME | 36.8 | 169° | 112.50 |
| HUC | HYAKURI VORTAC | 48.9 | 45° | 113.30 |
| OSE | MIHARA (OSHIMA) VOR/DME | 50.3 | 209° | 109.85 |
| XAC | OSHIMA VORTAC | 53.6 | 204° | 113.10 |
| JD | NIKKO (UTSUNOMIYA) NDB | 56.2 | 5° | 389 |
| JDT | UTSUNOMIYA TACAN | 58 | 6° | 112.15 |
Departure and arrival routes
| Transition altitude | 14000ft |
| Transition level | 14000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 | |||
| SYE3 | 28mi | 7° | |
| ROVE2A | 51mi | 80° | |
| RUTAS2 | 66mi | 133° | |
| OPPAR3, VAMOS3 | 37mi | 169° | |
| ISOGO2, VADAR1 | 54mi | 204° | |
| LAXAS3 | 41mi | 226° | |
| NINOX3 | 30mi | 265° | |
| RITL2A | 32mi | 280° | |
| BEKL2A | 34mi | 295° | |
| RW05 | |||
| SYE3 | 28mi | 7° | |
| ROVE2C, ROVE2B, ROVE2A | 51mi | 80° | |
| RUTAS2 | 66mi | 133° | |
| VAMOS3, OPPAR3 | 37mi | 169° | |
| VADAR1, ISOGO2 | 54mi | 204° | |
| LAXAS3 | 41mi | 226° | |
| NINOX3 | 30mi | 265° | |
| RITL2C, RITL2B, RITL2A | 32mi | 280° | |
| BEKL2C, BEKL2B, BEKL2A | 34mi | 295° | |
| RW16 (ALL) | |||
| SYE3 | 28mi | 7° | |
| VADAR1, ISOGO2 | 54mi | 204° | |
| RW16L | |||
| ROVE2C, ROVE2B, ROVE2A | 51mi | 80° | |
| RUTAS2 | 66mi | 133° | |
| VAMOS3, OPPAR3 | 37mi | 169° | |
| LAXAS3 | 41mi | 226° | |
| NINOX3 | 30mi | 265° | |
| RITL2C, RITL2B, RITL2A | 32mi | 280° | |
| BEKL2A, BEKL2B, BEKL2C | 34mi | 295° | |
| RW16R | |||
| ROVE2C, ROVE2B, ROVE2A | 51mi | 80° | |
| RUTAS2 | 66mi | 133° | |
| VAMOS3, OPPAR3 | 37mi | 169° | |
| LAXAS3 | 41mi | 226° | |
| NINOX3 | 30mi | 265° | |
| RITL2A, RITL2B, RITL2C | 32mi | 280° | |
| BEKL2A, BEKL2B, BEKL2C | 34mi | 295° | |
| RW22 | |||
| VAMOS3 | 37mi | 169° | |
| LAXAS3 | 41mi | 226° | |
| NINOX3 | 30mi | 265° | |
| RITL2C | 32mi | 280° | |
| RW34 (ALL) | |||
| SYE3 | 28mi | 7° | |
| ROVE2A | 51mi | 80° | |
| RUTAS2 | 66mi | 133° | |
| VAMOS3, OPPAR3 | 37mi | 169° | |
| VADAR1 | 54mi | 204° | |
| LAXAS3 | 41mi | 226° | |
| NINOX3 | 30mi | 265° | |
| RITL2A | 32mi | 280° | |
| BEKL2A | 34mi | 295° | |
| RW34L | |||
| ISOGO2 | 54mi | 204° | |
| RW34R | |||
| ROVE2B, ROVE2C | 51mi | 80° | |
| ISOGO2 | 54mi | 204° | |
| RITL2B, RITL2C | 32mi | 280° | |
| BEKL2B, BEKL2C | 34mi | 295° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| XACN, XACV | 53.6 | 24° | |
| SINGO, DOYLE | 49.3 | 213° | |
| MESSEN, MESSEV | 36.4 | 302° | |
| AROSAN, AROSAV | 68.2 | 313° | |
| ADDUM, BONUS | 45.6 | 325° | |
| AKSELV, AKSELN | 52.7 | 355° | |
| RW16L | |||
| XACL | 53.6 | 24° | |
| GODINL | 56.7 | 210° | |
| POLIXL | 50.8 | 225° | |
| AROSAL | 68.2 | 313° | |
| AKSELL | 52.7 | 355° | |
| RW16R | |||
| XACR | 53.6 | 24° | |
| GODINR | 56.7 | 210° | |
| POLIXR | 50.8 | 225° | |
| AROSAR | 68.2 | 313° | |
| AKSELR | 52.7 | 355° | |
| RW22 | |||
| XAC2N, XAC2B, XAC1B, XAC1N | 53.6 | 24° | |
| GODI1D, GODI1S | 56.7 | 210° | |
| POLI1S, POLI1D | 50.8 | 225° | |
| AROS1B, AROS2N, AROS2B, AROS1N | 68.2 | 313° | |
| AKSE2N, AKSE1B, AKSE1N, AKSE2B | 52.7 | 355° | |
| RW23 | |||
| XAC2N, XAC2B, XAC1B, XAC1N | 53.6 | 24° | |
| GODI1S, GODI1D | 56.7 | 210° | |
| POLI1S, POLI1D | 50.8 | 225° | |
| AROS1B, AROS2N, AROS2B, AROS1N | 68.2 | 313° | |
| AKSE1B, AKSE1N, AKSE2N, AKSE2B | 52.7 | 355° | |
| RW34 (ALL) | |||
| XAC1K, XAC1A, XAC2C, XAC2H | 53.6 | 24° | |
| GODI2A, GODI1H, GODI1C, GODI2K | 56.7 | 210° | |
| POLI1H, POLI2K, POLI2A, POLI1C | 50.8 | 225° | |
| AROS2C, AROS1A, AROS1K, AROS2H | 68.2 | 313° | |
| AKSE1A, AKSE1K, AKSE2C, AKSE2H | 52.7 | 355° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW16L | SANDY (170°) | SANDY 4500ft LYCEE (5mi, 215°) 4000ft |
| RNAV | LYCEE 4000ft LAUDA (3mi, 168°) 3446ft T6L61 (3mi, 145°) 2271ft T6L99 (2mi, 145°) 1392ft RJTT (4mi, 155°) 72ft SNOKE (22mi, 84°) 4000ft SNOKE (turn) 4000ft | |
| RW16R | NATTY (176°) | NATTY 5000ft RACER (4mi, 248°) REMUS (4mi, 215°) 5000ft ROWAN (3mi, 180°) |
| RNAV | ROWAN RIPOD (3mi, 144°) 3800ft T6R73 (3mi, 145°) 2561ft T6R74 (4mi, 145°) 1279ft RJTT (4mi, 139°) 69ft T6R12 (10mi, 147°) T6R76 (7mi, 212°) UTIBO (22mi, 168°) 4500ft UTIBO (turn) 4500ft | |
| RW34RV | CACAO (322°) | CACAO 4000ft D337L (2mi, 325°) ITC11 (turn) 2500ft IT06A (3mi, 325°) 1500ft FR34R (turn) 1500ft |
| RNAV | FR34R 1500ft RJTT (6mi, 318°) 86ft (7712mi, 256°) 530ft (turn) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ADDUM | ADDUM | VHF | left | 157 (337)° | > 5000ft | DME 8.4mi | 250 |
| AKSE1A | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE1A | ARLON | VHF | left | 189 (9)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1A | WEDGE | VHF | left | 120 (300)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1B | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE1B | BACON | VHF | left | 183 (3)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1B | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1K | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE1K | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1K | WEDGE | VHF | left | 120 (300)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1N | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE1N | NYLON | VHF | left | 177 (357)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE1N | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2B | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE2B | BACON | VHF | left | 183 (3)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2B | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2B | STING | VHF | right | 247 (67)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2C | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE2C | CIVIC | VHF | right | 165 (345)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2C | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2H | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE2H | CACAO | VHF | right | 152 (332)° | 4000ft - 60000ft | DME 5.0mi | 230 |
| AKSE2H | CIVIC | VHF | right | 165 (345)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2H | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2N | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSE2N | NYLON | VHF | left | 177 (357)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2N | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSE2N | STING | VHF | right | 247 (67)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELL | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSELL | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELL | SNARE | VHF | right | 117 (297)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELL | SPINE | VHF | left | 168 (348)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELN | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSELN | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELR | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSELR | NEURO | VHF | right | 110 (290)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELR | NUMAN | VHF | left | 180 (0)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AKSELV | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AKSELV | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1A | ARLON | VHF | left | 189 (9)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1A | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS1A | WEDGE | VHF | left | 120 (300)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1B | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS1B | BACON | VHF | left | 183 (3)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1B | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1K | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS1K | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1K | WEDGE | VHF | left | 120 (300)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1N | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS1N | NYLON | VHF | left | 177 (357)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS1N | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2B | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS2B | BACON | VHF | left | 183 (3)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2B | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2B | STING | VHF | right | 247 (67)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2C | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS2C | CIVIC | VHF | right | 165 (345)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2C | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2H | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS2H | CACAO | VHF | right | 152 (332)° | 4000ft - 60000ft | DME 5.0mi | 230 |
| AROS2H | CIVIC | VHF | right | 165 (345)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2H | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2N | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROS2N | NYLON | VHF | left | 177 (357)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2N | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROS2N | STING | VHF | right | 247 (67)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAL | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROSAL | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAL | SNARE | VHF | right | 117 (297)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAL | SPINE | VHF | left | 168 (348)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAN | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROSAN | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAR | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROSAR | NEURO | VHF | right | 110 (290)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAR | NUMAN | VHF | left | 180 (0)° | 4000ft - 14000ft | 1.0min timed | 230 |
| AROSAV | AVEEY | VHF | right | 134 (314)° | 5000ft - 14000ft | 1.0min timed | 230 |
| AROSAV | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| BONUS | ADDUM | VHF | left | 157 (337)° | > 5000ft | DME 8.4mi | 250 |
| DOYLE | STONE | VHF | right | 36 (216)° | > 11000ft | DME 7.7mi | 250 |
| GODI1C | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI1C | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI1C | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI1C | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI1D | DENNY | VHF | right | 347 (167)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI1D | DREAD | VHF | right | 11 (191)° | 5000ft - 14000ft | 1.0min timed | 230 |
| GODI1D | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI1D | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| GODI1H | CACAO | VHF | right | 152 (332)° | 4000ft - 60000ft | DME 5.0mi | 230 |
| GODI1H | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI1H | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI1H | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI1H | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI1S | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI1S | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| GODI1S | SCREW | VHF | left | 23 (203)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI2A | ARLON | VHF | left | 189 (9)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI2A | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI2A | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI2A | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI2K | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODI2K | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI2K | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODI2K | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODINL | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODINL | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| GODINL | SNARE | VHF | right | 117 (297)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODINR | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| GODINR | NEURO | VHF | right | 110 (290)° | 4000ft - 14000ft | 1.0min timed | 230 |
| GODINR | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| MESSEN | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| MESSEN | MESSE | VHF | left | 66 (246)° | 6000ft - 14000ft | 1.0min timed | 230 |
| MESSEV | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| MESSEV | MESSE | VHF | left | 66 (246)° | 6000ft - 14000ft | 1.0min timed | 230 |
| POLI1C | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI1C | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLI1C | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI1C | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLI1D | DENNY | VHF | right | 347 (167)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI1D | DREAD | VHF | right | 11 (191)° | 5000ft - 14000ft | 1.0min timed | 230 |
| POLI1D | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLI1D | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| POLI1D | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLI1H | CACAO | VHF | right | 152 (332)° | 4000ft - 60000ft | DME 5.0mi | 230 |
| POLI1H | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI1H | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLI1H | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI1H | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLI1S | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLI1S | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| POLI1S | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLI1S | SCREW | VHF | left | 23 (203)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI2A | ARLON | VHF | left | 189 (9)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI2A | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI2A | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLI2A | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLI2K | COACH | VHF | right | 5 (185)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI2K | COLOR | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLI2K | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLI2K | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLIXL | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLIXL | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| POLIXL | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| POLIXL | SNARE | VHF | right | 117 (297)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLIXR | GODIN | VHF | right | 17 (197)° | 8000ft - 14000ft | 1.0min timed | 230 |
| POLIXR | NEURO | VHF | right | 110 (290)° | 4000ft - 14000ft | 1.0min timed | 230 |
| POLIXR | NOVEL | VHF | left | 84 (264)° | 5000ft - 14000ft | 1.0min timed | 230 |
| POLIXR | POLIX | VHF | left | 130 (310)° | 11000ft - 14000ft | 1.0min timed | 230 |
| SINGO | STONE | VHF | right | 36 (216)° | > 11000ft | DME 7.7mi | 250 |
| XAC1A | ANZAC | VHF | left | 248 (68)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XAC1A | ARLON | VHF | left | 189 (9)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1A | WEDGE | VHF | left | 120 (300)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1A | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC1B | ANZAC | VHF | left | 248 (68)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XAC1B | BACON | VHF | left | 183 (3)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1B | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1B | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC1K | ANZAC | VHF | left | 248 (68)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XAC1K | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1K | WEDGE | VHF | left | 120 (300)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1K | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC1N | ANZAC | VHF | left | 248 (68)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XAC1N | NYLON | VHF | left | 177 (357)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1N | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC1N | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC2B | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XAC2B | BACON | VHF | left | 183 (3)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2B | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2B | STING | VHF | right | 247 (67)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2B | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC2C | CIVIC | VHF | right | 165 (345)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2C | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2C | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC2H | CACAO | VHF | right | 152 (332)° | 4000ft - 60000ft | DME 5.0mi | 230 |
| XAC2H | CIVIC | VHF | right | 165 (345)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2H | CREAM | VHF | right | 111 (291)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2H | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XAC2N | AKSEL | VHF | right | 219 (39)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XAC2N | NYLON | VHF | left | 177 (357)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2N | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2N | STING | VHF | right | 247 (67)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XAC2N | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XACL | ANZAC | VHF | left | 248 (68)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XACL | SHAFT | VHF | right | 150 (330)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACL | SNARE | VHF | right | 117 (297)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACL | SPINE | VHF | left | 168 (348)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACL | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XACN | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACN | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XACR | ANZAC | VHF | left | 248 (68)° | 5000ft - 14000ft | 1.0min timed | 230 |
| XACR | NEURO | VHF | right | 110 (290)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACR | NUMAN | VHF | left | 180 (0)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACR | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| XACV | KAIHO | VHF | right | 173 (353)° | 4000ft - 14000ft | 1.0min timed | 230 |
| XACV | XAC | NDB | right | 275 (95)° | 15000ft - 60000ft | 1.5min timed | 240 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
