Airports for X-Plane

Muan - Muan Intl

Airport details

CountrySouth Korea
StateJeonranamdo
RegionRK
AirspaceIncheon Ctr
MunicipalityMuan-gun
Elevation49ft (15m)
TimezoneGMT +9
Coordinates34.99139, 126.38277
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRKJB
IATA codeMWX
FAA coden/a

Communication

Muan Intl ATIS127.425
Muan Intl Muan Ground Control121.700
Muan Intl Muan Tower118.250
Muan Intl Gwangju Approach130.000
Muan Intl Gwangju Departure124.000

Approach frequencies

ILS-cat-IRW19108.918.00mi
ILS-cat-IRW01111.918.00mi
3° GSRW19108.918.00mi
3° GSRW01111.918.00mi
Nearby Points of Interest:
Getbol, Korean Tidal Flats
-
Seated Stone Yeorae Statue in Yuchon-dong, Gwangju
-
Gochang, Hwasun and Ganghwa Dolmen Sites

Runway info

Runway 01 / 19
 length2803m (9196ft)
 bearing360° / 180°
 width45m (148ft)
 surfaceasphalt
 blast zone120m (394ft) / 180m (591ft)

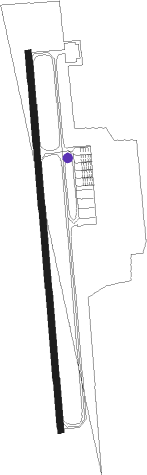

Airport layout - taxiway location A1


Taxiway locations

 A1  A2  E1  E2  E3  P
Parking locations

 gate  stand

Nearby beacons

codeidentifierdistbearingfrequency
MUNMUAN VOR/DME0.8171°111
KWJGWANGJU TACAN21.973°114.10
KWAGWANGJU VOR/DME22.673°114.40
KUZKUNSAN VORTAC56.314°112.80

Departure and arrival routes

Transition altitude14000ft
SID end pointsdistanceoutbound heading
RW01
 MAKS1N40mi46°
 KWA3N23mi73°
 DOTO1N46mi163°
RW19
 MAKS1S, MAKS6S40mi46°
 KWA3S23mi73°
 IPDA3S47mi156°
 DOTO1S46mi163°

STAR starting pointsdistanceinbound heading
RW01
 MANG2C, MANG2H35.4215°
 KAMI2C48.2332°
RW19
 MANG1D35.4215°
 SAMU1D25.0254°
 KAMI1D48.2332°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01OLBES (1°)OLBES 6000ft
KEVAP (12mi, 2°) 3000ft
RW01OVGEN (40°)OVGEN 5000ft
KEVAP (9mi, 81°) 3000ft
RW01PEGRO (320°)PEGRO 5000ft
KEVAP (9mi, 280°) 3000ft
 RNAVKEVAP 3000ft
AVNIS (5mi, 360°) 1700ft
RKJB (6mi, 360°) 82ft
JB401 (4mi, 360°)
GUPLA (8mi, 297°) 5000ft
GUPLA (turn) 5000ft
RW19AYEON (133°)AYEON 5000ft
KASPU (8mi, 90°) 2700ft
RW19DOWAN (226°)DOWAN 5000ft
KASPU (8mi, 269°) 2700ft
 RNAVKASPU 2700ft
IDVIT (4mi, 180°) 1700ft
RKJB (6mi, 180°) 101ft
JB451 (6mi, 180°)
JB452 (7mi, 270°)
GUPLA (14mi, 0°) 5000ft
GUPLA (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MANG2HOVGENVHFleft225 (45)°5000ft - 5000ft1.0min timed230
*) magnetic outbound (inbound) holding course
