Airports for X-Plane

Angeles City - Clark Intl

Airport details

CountryPhilippines
StatePampanga
RegionRP
AirspaceManila Ctr
MunicipalityMabalacat
Elevation482ft (147m)
TimezoneGMT +8
Coordinates15.18872, 120.54568
Magnetic var
Typeland
Available sinceX-Plane v10.35
ICAO codeRPLC
IATA codeCRK
FAA coden/a

Communication

Clark Intl ATIS127.200
Clark Intl Clearance DEL125.200
Clark Intl Ground Control124.300
Clark Intl Tower118.700
Clark Intl Approach119.200

Approach frequencies

ILS-cat-IRW02109.318.00mi
ILS-cat-IRW20110.118.00mi
3.5° GSRW02109.318.00mi
3° GSRW20110.118.00mi
Nearby Points of Interest:
Henson-Hizon House
-
Lazatin House
-
Augusto P. Hizon House
-
Lubao Church
-
Abucay Church

Runway info

Runway 02 / 20
 length3219m (10561ft)
 bearing22° / 202°
 width61m (200ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 02C / 20C
 length855m (2805ft)
 bearing20° / 200°
 width14m (45ft)
 surfaceasphalt
 displ threshold283m (928ft) / 214m (702ft)

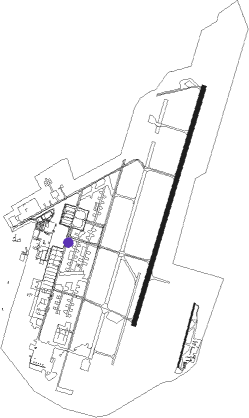

Airport layout - taxiway location D


Taxiway locations

 1  2  3  4  5  6  7  8
 9  A  D  F2  F4  F5  F7  H1
 MABUHAY
Parking locations

 Cargo  Maint  OMNI  PAF  Spot  Term

Nearby beacons

codeidentifierdistbearingfrequency
CIACLARK VOR/DME0.897°113.10
SBASUBIC BAY VOR/DME31.2217°113.50
CABCABANATUAN VOR/DME32.858°112.70
MIAMANILA VOR/DME49.3145°114.40

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW02
 RIAN2A, RIAN4R19mi59°
 RAYA2A16mi105°
 OLIV2E18mi144°
 BAYA2A, BAYA4R22mi163°
 KIBO2C15mi216°
 MALI1A30mi354°
RW20
 RIAN4N, RIAN2D, RIAN4P19mi59°
 RAYA2D16mi105°
 OLIV2F18mi144°
 BAYA4P, BAYA2D22mi163°
 KIBO2F15mi216°
 MALI1C30mi354°

STAR starting pointsdistanceinbound heading
RW02
 BABA5R, BABA7R19.9168°
 MALI5R, MALI7R29.9174°
 RAYA5R16.3285°
 OLIV5R17.6324°
 BAYA5R22.3343°
RW20
 KIBO3P, KIBO3N14.936°
 BABA3P19.9168°
 MALI3P29.9174°
 RAYA3P16.3285°
 OLIV3P17.6324°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02EDLEX (347°)EDLEX 5000ft
LC02C (6mi, 291°) 3500ft
RW02SIRMO (206°)SIRMO 5000ft
MAMEN (19mi, 181°)
EDLEX (7mi, 202°) 5000ft
LC02C (6mi, 291°) 3500ft
 RNAVLC02C 3500ft
LC02D (4mi, 22°) 3000ft
24THR (4mi, 22°) 1400ft
RPLC (3mi, 3°) 515ft
SIRMO (13mi, 26°) 5000ft
SIRMO (turn)
RW20DINOS (181°)DINOS 5000ft
SIRMO (6mi, 111°) 3500ft
RW20SIRMO (206°)SIRMO 3500ft
RW20SUNGA (229°)SUNGA 3500ft
SIRMO (6mi, 291°) 3500ft
 RNAVSIRMO 3500ft
LC20B (5mi, 202°) 2600ft
RPLC (8mi, 209°) 442ft
PATTY (3mi, 183°)
EDUEL (10mi, 55°)
SUNGA (7mi, 22°)
SIRMO (6mi, 291°) 3500ft
SIRMO (turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BABA7RSIRMOVHFright23 (203)°3500ft - 11000ft1.0min timed230
MALI7RSIRMOVHFright23 (203)°3500ft - 11000ft1.0min timed230
OLIV5ROLIVAVHFleft101 (281)°6000ft - 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
