Davao City - Francisco Bangoy Intl

Airport details

Country	Philippines
State	Davao Province
Region	RP
Airspace	Manila Ctr
Municipality	Davao City
Elevation	95ft (29m)
Timezone	GMT +8
Coordinates	7.13166, 125.65516
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	RPMD
IATA code	DVO
FAA code	n/a

Communication

Francisco Bangoy Intl ATIS	127.000
Francisco Bangoy Intl DAVAO Tower	118.100
Francisco Bangoy Intl DAVAO Approach	122.400

Approach frequencies

ILS-cat-I	RW05	109.1	18.00mi
ILS-cat-I	RW23	109.9	18.00mi
3° GS	RW05	109.1	18.00mi
3° GS	RW23	109.9	18.00mi

Nearby Points of Interest:

Mount Hamiguitan Range Wildlife Sanctuary

Runway info

Runway 05 / 23
	length	3003m (9852ft)
	bearing	49° / 229°
	width	45m (148ft)
	surface	asphalt
	blast zone	120m (394ft) / 122m (400ft)

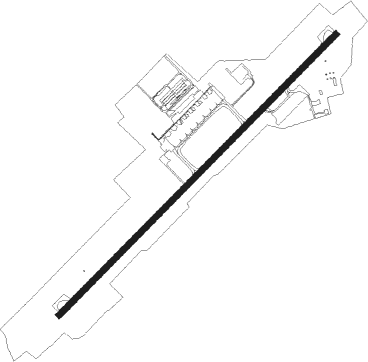

Airport layout

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
DAO	DAVAO VOR/DME	0	251°	112.10
AV	ALLAH VALLEY (SURALLAH) NDB	70.6	230°	377

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW05
	DAPE1A	32mi	142°
	MEGO1A	28mi	208°
	LATI3R	46mi	253°
	DEWI1A, DEWI1C	32mi	289°
	ANKI1A, ANKI1C, ANKI3R	65mi	321°
	JOFE3R, JOFE1C, JOFE1A	57mi	332°
	RIMA1A, RIMA1C	50mi	355°
RW23
	DAPE1B	32mi	142°
	MEGO1B	28mi	208°
	LATI3P	46mi	253°
	DEWI1D, DEWI1B	32mi	289°
	ANKI3P, ANKI1D, ANKI1B	65mi	321°
	JOFE1B, JOFE1D, JOFE3P	57mi	332°
	RIMA1B, RIMA1D	50mi	355°

STAR starting points		distance	inbound heading
ALL
	MEGOM1	28.3	28°
	DEWIN1	32.2	109°
	ANKIN1	64.5	141°
	JOFER1	56.5	152°
	RIMAR1	50.4	175°
	DAPEL1	31.5	322°
RW05
	LINA2R	48.7	99°
	RIMA2R	50.4	175°
RW23
	LINA2P	48.7	99°
	RIMA2P	50.4	175°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW05	ARPAS (73°)	ARPAS 4000ft MD05Y (5mi, 139°) 2800ft
RW05	EMERS (24°)	EMERS 4000ft MD05Y (6mi, 319°) 2800ft
	RNAV	MD05Y 2800ft MD05F (5mi, 49°) 1800ft RPMD (7mi, 50°) 177ft (7527mi, 267°) 1500ft LOWIS (7533mi, 87°) 3000ft LOWIS (turn) 3000ft
RW23	GLARY (198°)	GLARY 4000ft MD23Y (6mi, 139°) 1900ft
RW23	SAJEN (260°)	SAJEN 3000ft MD23Y (6mi, 319°) 1900ft
	RNAV	MD23Y 1900ft MD23F (5mi, 229°) 1900ft RPMD (6mi, 228°) 146ft (7527mi, 267°) 1500ft LOWIS (7533mi, 87°) 3000ft LOWIS (turn) 3000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
LINA2P	GLARY	VHF	left	320 (140)°	4000ft - 9000ft	1.0min timed	230
LINA2R	KLAFU	VHF	left	348 (168)°	6500ft - 13000ft	1.0min timed	230
RIMA2P	GLARY	VHF	left	320 (140)°	4000ft - 9000ft	1.0min timed	230
RIMA2R	KLAFU	VHF	left	348 (168)°	6500ft - 13000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
